Professional Open Frame LCD Monitor Display High Definition With Flat Design
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Steel Chassis | Color | Black Or Silver |
|---|---|---|---|
| Operating Temperature | -10~60℃(-20~70℃ Optional) | 24/7/365 Use | Supported |
| Resolution | 1920*1080 | Aspect Ratio | 16:9 |
| View Angels | 80/80/80/80 | Brightness | 250nits |
| High Light | open frame lcd panel,open frame touch screen monitor |
||
Product Description

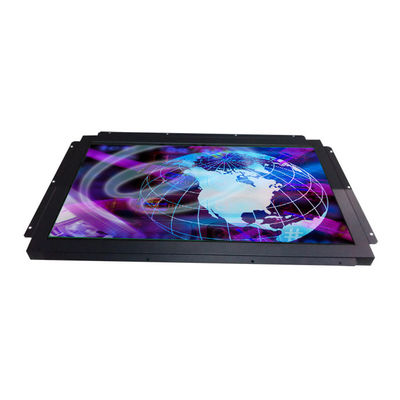

32 inch touch open frame LCD monitor with VESA mounting,vandal proof,IP65,1080P
ITD Open-Frame LCD monitors are designed for special mounting applications. Mounting is straightforward with solid steel metal flanges located on all sides of the LCD each with mounting holes to secure the LCD in place. Our OEM / Open Frame LCD displays are available with resistive or infrared touch or SAW touch or capacitive touchscreens or tempered glass or without a front overlay.
BENEFITES
- Perfect for kiosk, equipment and instrument drop-in designs
- Robust CNC milled open frame enclosure
- Durable Touchscreen options
- DVI, Composite and BNC video input options
|
Open Frame LCD Monitor
|
|
| Model Name | ITD32OFN1M1 |
| IP Rating | N/A |
|
LCD Panel
|
|
| Screen Diagonal (Inch/cm) | 32” |
| Display Active Screen Size (mm) | 698.4(H) ×392.85(V) |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920×1080 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 16.7M |
| Brightness (cd/m²) | 400nits |
| Contrast Ratio | 1200:1 |
| View Angels | 89/89/89/89 |
| Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime |
|
Touch Panel
|
|
| Touch Options | Resistive, IR, PCAP, SAW |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
|
Input / Output
|
|
| Video Input | 1 × VGA |
| 1 × DVI-I | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
|
Operation
|
|
| Operating Temperature Range | 0~50°C (-10~60°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
|
Power
|
|
| Power Indicator | Green LED |
| Power Input | AC100-240 V |
| Power Consumption | 73W |
|
Order Information
|
|
| 32”Open Frame LCD Monitor with IR Touch | ITD32OFT2M1 |
| 32”Open Frame LCD Monitor with SAW Touch | ITD32OFT3M1 |
| 32”Open Frame LCD Monitor with PCAP Touch | ITD32OFT5M1 |
| 32”Open Frame LCD Monitor with Tempered Glass | ITD32OFG1M1 |
APPLICATION
