Kiosk Engineering Industrial Touch Screen PC , Industrial Panel PC 19 Inch

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD19PPCT1LJ1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU Intel J1900/i3/i5/i7/Android Active Are 376.3(H)×301.1(V) Mm
Screen Diagonal 19" Operating Temperature -10~60℃(-20~70℃ Optional)
Operating Humidity 10%-90% (Non Condensing) Power Input DC 12V
Resolution 1280x1024 View Angels 85/85/80/80
Connector HDMI/VGA/DVI,USB,RS232,LAN,AUDIO,MIC Backlight LED Backlight With 50000Hours'Lifetime
High Light

touch display pc

,

touch monitor pc

Leave a Message
Product Description

Kiosk engineering automation transportation use industrial grade panel PC 19" AIO

Specifications:



Chassis Panel PC



Model Name ITD19PPCG1L**
IP Rating IP65 Front Panel Optional

PC Systems Options



ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® NM10 Express Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G
1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe

LCD Panel



Screen Diagonal (Inch) 19”
Display Active Screen Size (cm) 376.3(H)×301.1(V)
Aspect Ratio 5:4
Physical Resolution 1280×1024
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 250
Contrast Ratio 1000:1
View Angels 85/85/80/80
Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime

Touch Panel



Touch Options Resistive, IR, PCAP, SAW
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power



Power Indicator Green LED
Power Input DC 12V
Power Consumption 42.5W

Order Information



19”Chassis Panel PC with Resistive Touch, J1900 ITD19PPCT1LJ1
19”Chassis Panel PC with PCAP Touch, J1900 ITD19PPCT5LJ1
19”Chassis Panel PC with IR Touch, J1900 ITD19PPCT2LJ1
19”Chassis Panel PC with Tempered Glass, J1900 ITD19PPCG1LJ1
19”Chassis Panel PC with Resistive Touch, i5 ITD19PPCT1LI5
19”Chassis Panel PC with PCAP Touch, i5 ITD19PPCT5LI5
19”Chassis Panel PC with IR Touch, i5 ITD19PPCT2LJ1
19”Chassis Panel PC with Tempered Glass, i5 ITD19PPCG1LI5








ITD industrial touch panel PC-based HMIs offers many benefits including: cost reduction, a lightweight frame, high dimensional stability, superior corrosion resistance, improved mechanical properties, high thermal and electrical conductivity, and the ability to retain strength at high temperatures.



Product Display:

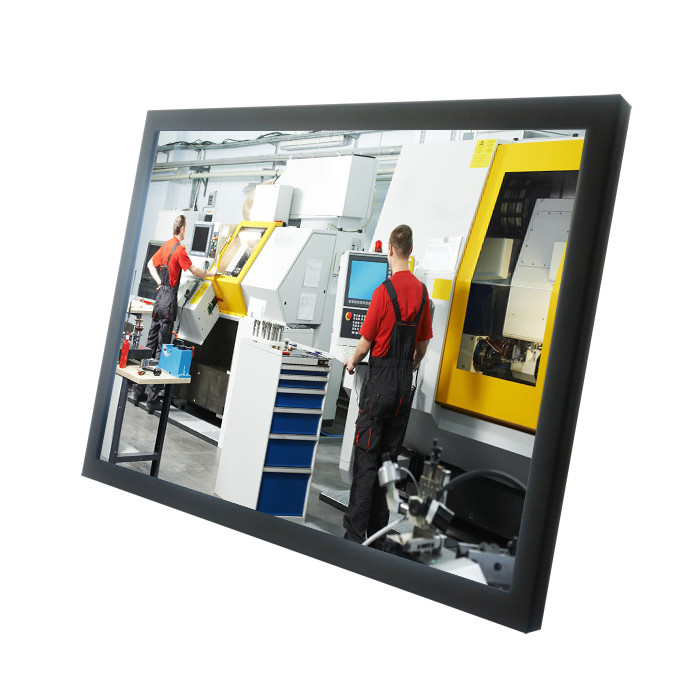

Kiosk Engineering Industrial Touch Screen PC , Industrial Panel PC 19 Inch 0Kiosk Engineering Industrial Touch Screen PC , Industrial Panel PC 19 Inch 1









APPLICATION



Kiosk Engineering Industrial Touch Screen PC , Industrial Panel PC 19 Inch 2
