Professional 1080P Touch Panel PC For Harsh Environment Industrial Usage
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel J1900/i3/i5/i7/Android | Active Are | 531.36(H)×298.89(V) Mm |
|---|---|---|---|
| Screen Diagonal | 24" | Operating Humidity | 10%-90% (Non Condensing) |
| Touchscreen | Resistive, PCAP,IR | Name | Industrie Touch Panel PC |
| Resolution | 1920X1080 | View Angels | 85/85/80/80 |
| High Light | touch display pc,touch panel computer |
||
Product Description

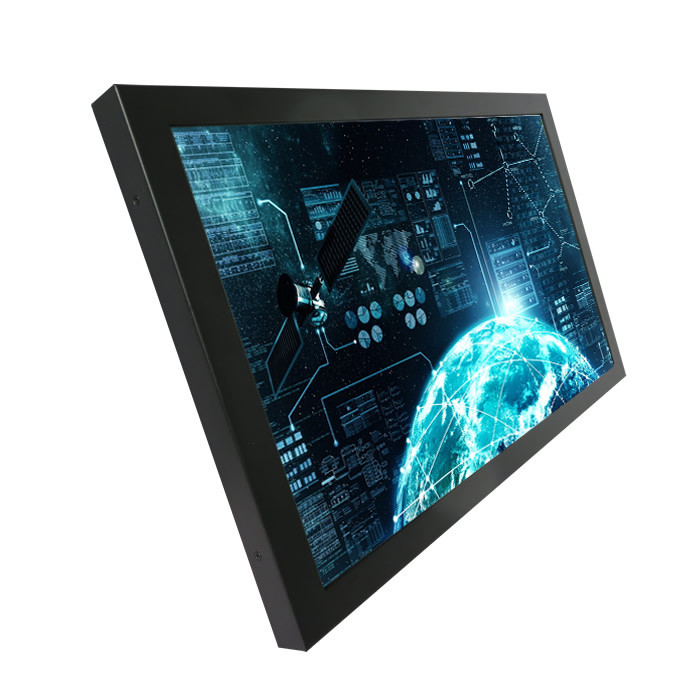

1080P high definition 24 inch touch panel PC for harsh environment industrial usage
Specifications:
|
Chassis Panel PC
|
|||
| Model Name | ITD24PPCG1L** | ||
| IP Rating | IP65 Front Panel Optional | ||
|
PC Systems Options
|
|||
| ARM Android Based RK3288(RK3368 optional) | X86 Windows Based | X86 Windows Based | |
| CPU: Quad-Core Cortex-A17 1.8GHz | CPU: Intel® Celeron J1900 | CPU: Intel Core i3/i5/i7 | |
| Chipset: N/A | Chipset: Intel® NM10 Express | Chipset: Intel® HD Graphics, Support 1080p | |
| Memory: 1G/2G | Memory: 2GB(Max. 8GB) | Memory: 2GB(Max. 8GB) | |
| HDD/SSD: 8G | HDD/SSD:500G/64G | HDD/SSD:500G/64G | |
| 1×HDMI | 1×VGA, 1×HDMI | 1×VGA, 1×HDMI | |
| 1×USB 2.0 | 2×USB 2.0, 2×USB3.0 | 2×USB 2.0, 2×USB3.0 | |
| 1×mini-SD slot | 1×COM(RS232/422/485) | 1×COM(RS232/422/485) | |
| 1×LAN | 1×LAN | 1×LAN | |
| 1×Audio Out | 1×Audio Out, 1×MIC In | 1×Audio Out, 1×MIC In | |
| Expansion: SSD | Expansion: USB, COM, Mini-PCIe | Expansion: USB, COM, Mini-PCIe | |
|
LCD Panel
|
|||
| Screen Diagonal (Inch) | 24” | ||
| Display Active Screen Size (cm) | 531.36(H)×298.89(V) | ||
| Aspect Ratio | 16:9 | ||
| Physical Resolution | 1920×1080 | ||
| Maximum Resolution Supported | 1920×1080 | ||
| Colors | 16.7M | ||
| Brightness (cd/m²) | 250 | ||
| Contrast Ratio | 1000:1 | ||
| View Angels | 85/85/80/80 | ||
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours'Lifetime | ||
|
Touch Panel
|
|||
| Touch Options | Resistive, IR, PCAP, SAW | ||
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi | ||
|
Operation
|
|||
| Operating Temperature Range | -10~60°C (-20~70°C Optional) | ||
| Humidity Range (RH) | 10-90% | ||
| 24/7/365 Use | Supported | ||
|
Power
|
|||
| Power Indicator | Green LED | ||
| Power Input | Internal Power Supply, AC 100V~240V | ||
| Power Consumption | 71.25W | ||
|
Order Information
|
|||
| 24”Chassis Panel PC with Resistive Touch, J1900 | ITD24PPCT1LJ1 | ||
| 24”Chassis Panel PC with PCAP Touch, J1900 | ITD24PPCT5LJ1 | ||
| 24”Chassis Panel PC with IR Touch, J1900 | ITD24PPCT2LJ1 | ||
| 24”Chassis Panel PC with Tempered Glass, J1900 | ITD24PPCG1LJ1 | ||
| 24”Chassis Panel PC with Resistive Touch, i5 | ITD24PPCT1LI5 | ||
| 24”Chassis Panel PC with PCAP Touch, i5 | ITD24PPCT5LI5 | ||
| 24”Chassis Panel PC with IR Touch, i5 | ITD24PPCT2LJ1 | ||
| 24”Chassis Panel PC with Tempered Glass, i5 | ITD24PPCG1LI5 | ||
ITD industrial touch panel PC-based HMIs offers many benefits including: cost reduction, a lightweight frame, high dimensional stability, superior corrosion resistance, improved mechanical properties, high thermal and electrical conductivity, and the ability to retain strength at high temperatures.
APPLICATION
