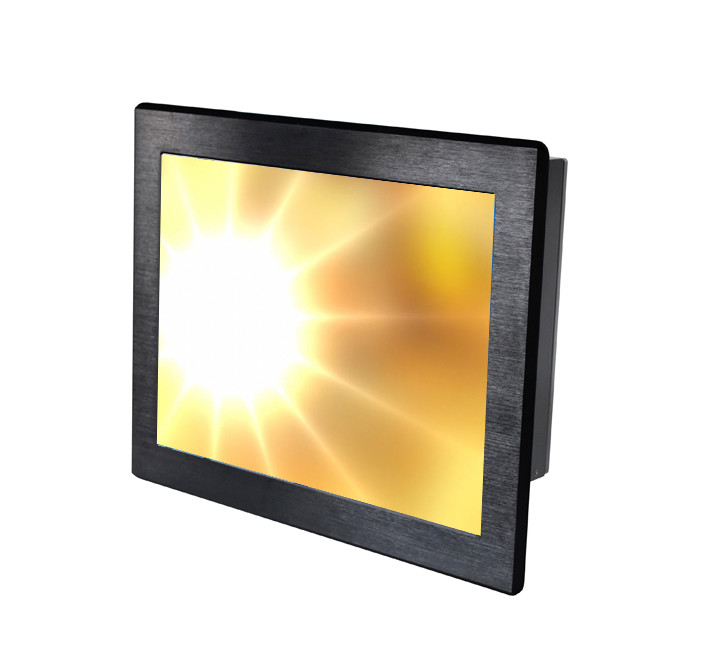

17 Inch IP65 Panel PC Steel Chassis 1280X1024 Panel Mount Panel PC

  • 17 Inch IP65 Panel PC Steel Chassis 1280X1024 Panel Mount Panel PC
  • 17 Inch IP65 Panel PC Steel Chassis 1280X1024 Panel Mount Panel PC
  • 17 Inch IP65 Panel PC Steel Chassis 1280X1024 Panel Mount Panel PC
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD17PPCT1HBPJ1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 15-20 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 5000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Steel Chassis Housing Type Panel Mount, VESA Mounting
Operating Humidity 10%-90% (Non Condensing) CPU J1900,i3,i5,i7
Resolution 1280*1024 RAM 4 GB
NAME IP65 Panel PC
High Light

17 Inch IP65 Panel PC

,

IP65 Panel PC Steel Chassis

,

1280X1024 Panel Mount Panel PC
Leave a Message
Product Description

17 Inch IP65 Panel PC Steel Chassis 1280X1024 Panel Mount Panel PC



ITD panel mounted IP65 panel PCs are ideal solutions for a variety of applications on ships, marine platforms, outdoor self-service terminals, etc. These are designed for high reliability and low maintenance in this type of working environments. While we have pre-designed products, we also provide custom designs based on the features and requirements that you want to integrate into the system. In this way, we always have all the possible choices that the client may look for high brightness panel PCs.

BENEFITES OF IP65 Panel PC
- High-Luminance Solid-State LED-enhanced Backlighting


- Optical Bonding of Touch Screen Directly to the Front Surface of the LCD Optional

- 500GB HDD or 126GB SSD, Bigger Capacity Optional


- NEMA 4 (IP65) - Black Powder Coat Aluminum Front Bezel

- Energy Efficient, Low Power Consumption


- High Environmental Performance and Reliability


- Wide Operational Temperature Range, -10°C to +60°C



High Brightness Panel Mount Panel PC


Model Name ITD17PPCG1HB**
IP Rating IP65 Front Panel

PC Systems Options


ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® HD Graphics, Support 1080p Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G
1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe

LCD Panel


Screen Diagonal (Inch/cm) 17”
Display Active Screen Size (mm) 337.920(H)X270.336(V)
Aspect Ratio 4:3
Physical Resolution 1024X768
Maximum Resolution Supported 1920X1080
Colors 16.7M
Brightness (cd/m²) 1000(1500 Optional)
Contrast Ratio 800:1
View Angels 85/85/80/80
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime

Touch Panel


Touch Options Resistive, IR, PCAP, SAW
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation


Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power


Power Indicator Green LED
Power Input DC 12V
Power Consumption 45W

Order Information


17”1000nits Panel Mount Panel PC with Resistive Touch, J1900 ITD17PPCT1HBJ1
17”1000nits Panel Mount Panel PC with PCAP Touch, J1900 ITD17PPCT5HBJ1
17”1000nits Panel Mount Panel PC with IR Touch, J1900 ITD17PPCT2HBJ1
17”1000nits Panel Mount Panel PC with Tempered Glass, J1900 ITD17PPCG1HBJ1
17”1000nits Panel Mount Panel PC with Resistive Touch, i5 ITD17PPCT1HBI5
17”1000nits Panel Mount Panel PC with PCAP Touch, i5 ITD17PPCT5HBI5
17”1000nits Panel Mount Panel PC with IR Touch, i5 ITD17PPCT2HBI5
17”1000nits Panel Mount Panel PC with Tempered Glass, i5 ITD17PPCG1HBI5
