CE FCC RoHS Rugged IP66 IP65 Panel PC High Brightness 1000cd/㎡

  • CE FCC RoHS Rugged IP66 IP65 Panel PC High Brightness 1000cd/㎡
  • CE FCC RoHS Rugged IP66 IP65 Panel PC High Brightness 1000cd/㎡
Place of Origin China
Brand Name ITD/OEM
Model Number ITD65PPCT5HBIP
Minimum Order Quantity 1PCS
Price TBA
Delivery Time 15 working days
Payment Terms T/T
Supply Ability 10000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cell Type/Glass Surface TFT Brightness/ Contrast 1000cd/㎡/1400:1
Compliance CE, FCC, RoHS
High Light

IP66 IP65 Panel PC

,

1000cd IP66 Panel PC

,

FCC RoHS High Brightness Panel PC
Leave a Message
Product Description

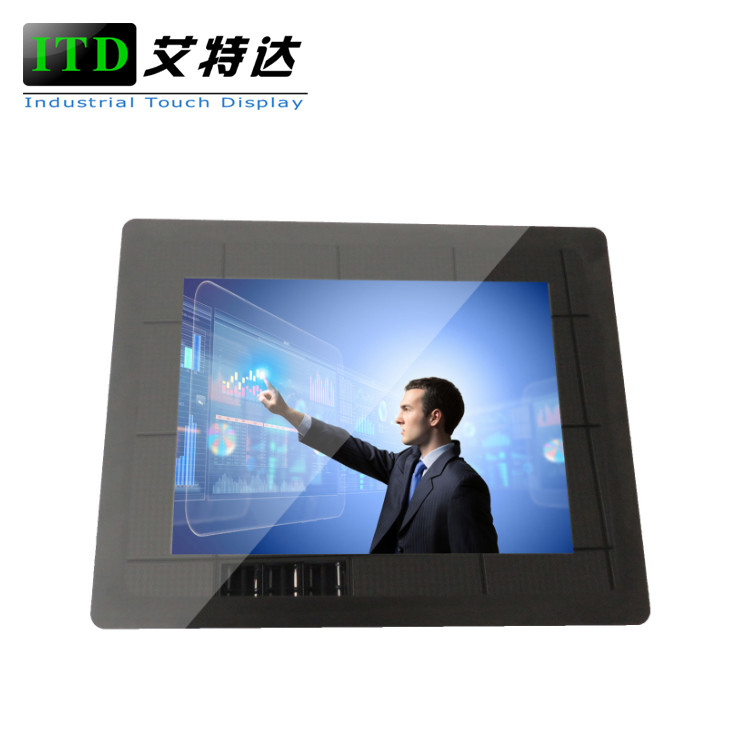

CE FCC RoHS Rugged IP66 IP65 Panel PC High Brightness 1000cd/㎡



The ITD 7''-65'' Full IP65/IP66 high brightness panel PCs industrial rugged High-performane LCD PPC



The ITD Full IP65/IP66 high brightness panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, biotechnology process manufacturing and outdoor application. This waterproof PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.



FEATURES

• Robust stainless steel/aluminum alloy enclosure, sealed I/O from particles, water, and corrosive agents

• Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection

• Rugged stainless steel/aluminum alloy enclosure design with high EMC and IP65/IP66 NEMA4/4X protection

• Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports

• Flexible, reliable, and ruggedized for open platform HMI/SCADA

• Provides improved power efficiency and reduced consumption

• CE, FCC, RoHS Compliance



DISPLAY

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 65”/16:9
Active Area/ Pixel Pitch 1428.48mm(W) × 803.52mm(H)/0.744 × 0.744mm
Native Resolution/ Colors 1920 × 1080/16.7M
Brightness/ Contrast 1000cd/㎡/1400:1
Response Time/ Viewing Angle(Typical) 8ms/89/89/89/89
Light Source LED Backlight with 50000Hours’Lifetime







CE FCC RoHS Rugged IP66 IP65 Panel PC High Brightness 1000cd/㎡ 0CE FCC RoHS Rugged IP66 IP65 Panel PC High Brightness 1000cd/㎡ 1





OPTIONALS

• DC 24V, DC9-36V, AC100-240V • Optical bonding, IP67
• IR, PCAP touch screen, AR/AG tempered glass • WIFI, 3G, 4G, Bluetooth
• Web camera, speakers, RFID, NFC, Fingerprint, QR reader, GPS etc. • Stainless Steel, Aluminum Alloy





SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) Intel® Celeron J1900 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage 8GB: 16GB/32GB/64GB Optional 1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
Default Waterproof I/O

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional
LAN 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet
OS Android 6.0 (Android 7.0 optional) Windows 7/8/10, Linux Windows 7/8/10, Linux





GENERAL

Power Input Voltage AC100-240V Input
Operation/Power Saving 310~350W
Environment Considerations Operating Temperature 0~50℃
Storage Temperature -10~60℃
Mounting VESA Mount, Panel/Embedded Mount optional



CE FCC RoHS Rugged IP66 IP65 Panel PC High Brightness 1000cd/㎡ 2
