High Bright Sun Readable LCD Display 7" Chassis Tempered Glass Internal Power Supply
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE,ROHS,FCC |
| Model Number | ITD07CMG1HBHR02 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,woonden case,pallet |
| Delivery Time | 10-15 work days |
| Payment Terms | T/T,Western Union,Paypal |
| Supply Ability | 10000 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Physical Resolution | 1024x600 | Brightness | 1000 Cd/m² |
|---|---|---|---|
| Operating Temperature Range | -10~60°C (-20~70°C Optional) | Video Input | VGA/HDMI |
| Power Input | Internal Power Supply, AC100V~240V | Touch Options | Resistive, IR, PCAP, SAW |
| Touch Interface | USB (Serial Optional) | Humidity Range | 10-90% |
| 24/7/365 Use | Supported | ||
| High Light | sunlight readable display,sun readable lcd display |
||
Product Description
7" high bright Sunlight Readable LCD Monitor with chassis tempered glass
ITD 7” ITD07CMT5HBHR02 is an Industrial LCD display (chassis type), high brightness for sunlight readable application. It offers the best visibility, performance and cost effective value. The high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality and guaranteeing product life cycle longevity, stability, and reliability.
Specifications:
| Panel | Cell Type/Glass Surface | TFT |
| Aspect Ratio/Size | 7” 16:9 | |
| Active Area/Pixel Pitch | 154.214(H) x 85.92(V)/0.1506 x 0.1432mm | |
| Native Resolution/Colors | 1024 x 600 /262K/16.7M | |
| Brightness/Contrast | 1000nits/800:1 | |
| Response Time | 10ms | |
| Viewing Angle(Typical) | 75/75/70/75 | |
| Light Source | LED with 50000hours’lifetime | |
| Input Signals | VGA, DVI, HDMI inputs | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -20℃~70℃ | |
| Convenient Features | Backlight Adjustment, Plug & Play, OSD Multi-Languages | |
| Power | External AC-to-12VDC Power Adapter with Universal/Auto-Sensing | |
| Power Consumption | Operation/Power Saving | Below 15W |
| Touch Panel | Projected Capacitive Touch Panel | |
| Touch Interface | USB | |
| Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | |
| Order Information | 7” Chassis Monitor 1000nits no touch/ITD07CMN1HBHR02 | |
| 7” Chassis Monitor 1000nits with resistive touch panel/ITD07CMT1HBHR02 | ||
| 7” Chassis Monitor 1000nits with tempered glass/ITD07CMG1HBHR02 | ||
OPTIONALS
•AR/AG Tempered glass
•Touch sensor technologies: Resistive, IR, PCAP
•Auto-Dimming, light sensor
•AV input, RS232 remote control

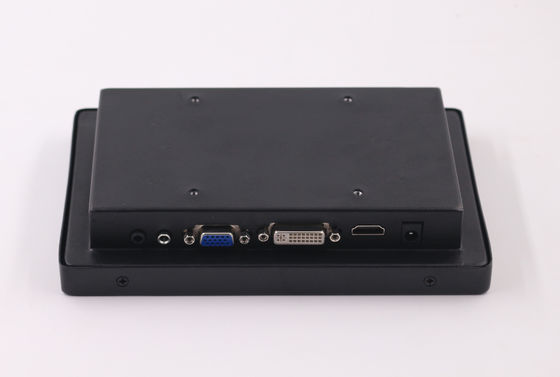

Products image:
