10.4'' PCAP Touch Panel PC , Rugged Industrial All In One PC DC 12V Touchscreen Interface
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD10PPCT*** |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 10-15 work days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Inch | 10.4 | CPU | Intel Celeron J1900 ,Intel Core I3/i5 |
|---|---|---|---|
| Memory | 2GB(Max. 16GB) | HDD/SSD | 500G/64G |
| Touch Options | Projected Capacitive/resistive Touch | 24/7/365 Use | Supported |
| Power Input | DC 12V | ||
| High Light | touch panel computer,touch monitor pc |
||
Product Description
10.4” PCAP Touch Panel Mounted PC industrial rugged all in one touch
OVERVIEW
ITD industrial PCAP touch panel mounted PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all aluminum enclosures and highly-durable anti-vandal PCAP glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with projected capacitive touch panel (PCAP/PCT) makes true flat surface with easy to clean. The Industrial PCAP touch panel PCs come with industrial LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fan-less design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.
Specifications:
|
Flat Bezel Industrial Panel PC
|
|||
| Model Name | ITD10PPCG1X** | ||
| IP Rating | IP65 Front Panel | ||
|
PC Systems Options
|
|||
| ARM Android Based RK3288(RK3368 optional) | X86 Windows Based | X86 Windows Based | |
| CPU: Quad-Core Cortex-A17 1.8GHz | CPU: Intel® Celeron J1900 | CPU: Intel Core i3/i5/i7 | |
| Chipset: N/A | Chipset: Intel® HD Graphics, Support 1080p | Chipset: Intel® HD Graphics, Support 1080p | |
| Memory: 1G/2G | Memory: 2GB(Max. 8GB) | Memory: 2GB(Max. 8GB) | |
| HDD/SSD: 8G | HDD/SSD:500G/64G | HDD/SSD:500G/64G | |
| 1×HDMI | 1×VGA, 1×HDMI | 1×VGA, 1×HDMI | |
| 1×USB 2.0 | 2×USB 2.0, 2×USB3.0 | 2×USB 2.0, 2×USB3.0 | |
| 1×mini-SD slot | 1×COM(RS232/422/485) | 1×COM(RS232/422/485) | |
| 1×LAN | 1×LAN | 1×LAN | |
| 1×Audio Out | 1×Audio Out, 1×MIC In | 1×Audio Out, 1×MIC In | |
| Expansion: SSD | Expansion: USB, COM, Mini-PCIe | Expansion: USB, COM, Mini-PCIe | |
|
LCD Panel
|
|||
| Screen Diagonal (Inch) | 10.4” | ||
| Display Active Screen Size (cm) | 210.4(H)×157.8(V) | ||
| Aspect Ratio | 4:3 | ||
| Physical Resolution | 1024×768 | ||
| Maximum Resolution Supported | 1920×1080 | ||
| Colors | 16.2M | ||
| Brightness (cd/m²) | 300 | ||
| Contrast Ratio | 600:1 | ||
| View Angels | 80/80/70/70 | ||
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours'Lifetime | ||
|
Touch Panel
|
|||
| Touch Options | Resistive, IR, PCAP, SAW | ||
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi | ||
|
Operation
|
|||
| Operating Temperature Range | -10~60°C (-20~70°C Optional) | ||
| Humidity Range (RH) | 10-90% | ||
| 24/7/365 Use | Supported | ||
|
Power
|
|||
| Power Indicator | Green LED | ||
| Power Input | DC 12V | ||
| Power Consumption | 29.5W | ||
|
Order Information
|
|||
| 10.4”Panel Mount Panel PC with Resistive Touch, J1900 | ITD10PPCT1XJ1 | ||
| 10.4”Panel Mount Panel PC with PCAP Touch, J1900 | ITD10PPCT5XJ1 | ||
| 10.4”Panel Mount Panel PC with Tempered Glass, J1900 | ITD10PPCG1XJ1 | ||
| 10.4”Panel Mount Panel PC with Resistive Touch, i5 | ITD10PPCT1XI5 | ||
| 10.4”Panel Mount Panel PC with PCAP Touch, i5 | ITD10PPCT5XI5 | ||
| 10.4”Panel Mount Panel PC with Tempered Glass, i5 | ITD10PPCG1XI5 | ||

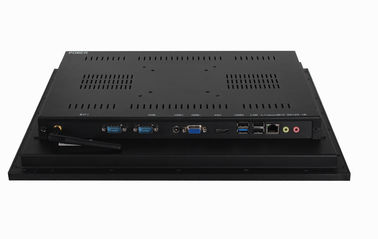

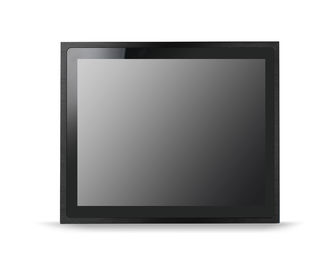

Product Display:
