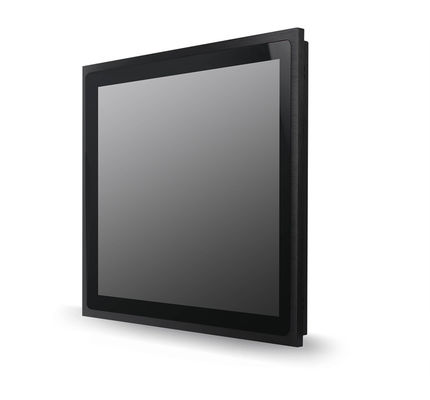

Rugged Industrial Panel Mount Monitor Multi Touch Display Panel Waterproof IP65 Front
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD15PMT5X31 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Inch | 15 | Active Area | 304.12(H)x 228.09(V) Mm |
|---|---|---|---|
| Native Resolution | 1024x768 | Brightness | 250 Cd/m2 |
| Operating Humidity | 10%~90% | Input Signal Connectors | VGA, DVI, HDMI |
| Casing | Aluminum Front Bezel And Steel Chassis Construction | Touch Panel | Projected Capacitive Touch Panel With 10 Multi Touch Points |
| High Light | panel mount lcd monitor,industrial touch monitor |
||
Product Description
15inch rugged industrial multi-touch display panel mounted monitors waterproof IP65 front
FEATURES
▪Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Ruggedized levels of NEMA 4IP65 ratings for front panel
▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
▪ CE, FCC, RoHS Compliance
| Model | ITD08PMT5X31 | ITD101PMT5X31 | ITD10PMT5X31 | ITD11PMT5X31 | ITD12PMT5X31 |
| Size | 8” | 10.1” | 10.4” | 11.6” | 12.1” |
| Active Area | 162(W) x 121.5(H) | 222.52(W) x 125.11(H) | 211.2(W)*158.4(H) | 256.32(H)x 144.18(V) | 246.0(H) x 184.5(V) |
| Pixel Pitch | 0.2025 | 0.1629 | 0.264 | 0.1335 | 0.3075 |
| Contrast Ratio | 500:1 | 500:1 | 500:1 | 800:1 | 500:1 |
| Resolution | 800 x 600 or 1024 x 768 | 1366 x 768 | 800 x 600 or 1024 x 768 | 1920 x 1080 | 800 x 600 or 1024 x 768 |
| Brightness | 250nits | 300nits | 300nits | 350nits | 300nits |
| Viewing Angles | 70/70/50/70 | 80/80/80/80 | 70/70/60/70 | 89/89/89/89 | 70/70/60/60 |
| Response Time | 10ms | 5ms | 35ms | 262K | 35ms |
| Colors | 262K | 262K | 262K | 25ms | 262K |
| Backlight | LED | LED | LED | LED | LED |
| Model | ITD12PMT5X31W | ITD13PMT5X31W | ITD15PMT5X31W | ITD156PMT5X31 | ITD17PMT5X31 |
| Size | 12.1”(16:10) | 13.3” | 15” | 15.6” | 17” |
| Active Area | 261.12(H) x 163.2(V) | 293.76(H) x 165.24V) | 304.12(H)x 228.09(V) | 344.232(H)x193.536(V) | 337.92(H) x 270.33(V) |
| Pixel Pitch | 0.204 | 0.153 | 0.297 | 0.252 | 0.264 |
| Contrast Ratio | 700:1 | 800:1 | 700:1 | 500:1 | 1000:1 |
| Resolution | 1280 x 800 | 1920 x 1080 | 1024 x 768 | 1366 x 768 | 1280 x 1024 |
| Brightness | 250nits | 300nits | 250nits | 300nits | 250nits |
| Viewing Angles | 85/85/80/80 | 85/85/85/85 | 80/80/60/70 | 85/85/80/80 | 85/85/80/80 |
| Response Time | 4ms | 14ms | 35ms | 6ms | 5ms |
| Colors | 262K | 16.7M | 16.2M | 16.2M | 16.7M |
| Backlight | LED | LED | LED | LED | LED |
| Model | ITD173PMT5X31 | ITD19PMT5X31 | ITD19PMT5X31W | ITD21PMT5X31 | ITD22PMT5X31 |
| Size | 17.3” | 19” | 19”(16:10) | 21.5” | 22” |
| Active Area | 381.888(H) x 214.812(V) | 376.32(H) x 301.06(V) | 408.32(H) x 255.2(V) | 476.64(H)x248.25(V) | 473.76(H)x296.1(V) |
| Pixel Pitch | 0.294 | 0.0945 | 0.248 | 0.282 | |
| Contrast Ratio | 600:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| Resolution | 1920 x 1080 | 1280 x 1024 | 1440 x 900 | 1920 x 1080 | 1680 x 1050 |
| Brightness | 300nits | 250nits | 250nits | 250nits | 250nits |
| Viewing Angles | 80/80/60/80 | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 |
| Response Time | 14ms | 5ms | 3.6ms | 5ms | 5ms |
| Colors | 16.7MM | 16.7M | 16.7M | 16.7M | 16.7M |
| Backlight | LED | LED | LED | LED | LED |
SPECIFICATION
| Input Signal Connectors | VGA, DVI, HDMI |
| Power Input | External Power Supply with Universal/Auto-Sensing |
| Power Consumption | Operation/Power Saving TBA |
| Key Control | Power on/off with LED, Menu/Remote Control, Select, Adjustment(Right/Left) |
| Touch Panel | Projected Capacitive Touch Panel with 10 Multi Touch Points |
| USB/RS232 port | |
| 7H Surface Hardness, Vandal Proof | |
| Plug and Play in Windows XP/7/8/10; Linux, Mac, Android with driver | |
| Operating Temperature | -10~60℃ (-20~70℃ optional) |
| Storage Temperature | -20~70℃ |
| Operating Humidity | 10%~90% |
| MTBF | 50000h |
| Accessories | Power Supply, VGA/DVI/HDMI cable, USB Cable, Mounting Brackets(optional) |
| Order Information | Flat Bezel Panel Mount PCAP Touch Monitor/ITD**PMT5X31 |
| Flat Bezel Panel Mount Resistive Touch Monitor /ITD**PMT1X31 | |
| Flat Bezel Panel Mount Monitor with Tempered Glass /ITD**PMG1X31 | |
| Flat Bezel Panel Mount PCAP Touch Monitor 1000nits/ITD**PMT5HBX31 | |
| Flat Bezel Panel Mount Resistive Touch Monitor 1000nits /ITD**PMT1HBX31 | |
| Flat Bezel Panel Mount Monitor with Tempered Glass 1000nits/ITD**PMG1HBX31 |
