7'' 1024x600 Wall Mount Touch Screen PC ID Recognition For Library
1 units
7'' 1024x600 Wall Mount Touch Screen PC ID Recognition For Library
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: ITD
Certification: CE/ROHS/FCC
Model Number: ITD07PPCT5XE2
High Light:

touch panel computer


touch monitor pc

Payment & Shipping Terms
Packaging Details: Foam,gift box,master carton,wooden case,pallet
Delivery Time: 7-12 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000 unit per month
CPU: ARM Cortex RK3288
Memory: DRAM 2GB
Storage: 8G
OS: Android 6.0
I/O: 2 X USB,1 X HDMI,1 X RJ45
3G/4G: Optional
Operating Temperature: -10~60℃
MTBF: 50000H
Power: 1 X DC 12V,
GPS, PoE: Optional
Aging Test: 48H
Product Description

wall-mounted touch pc kiosk 7 inch 1024x600 for returning books in library with ID recognition


ITD multi-touch screen HMI comfort panel PC is fully-integrated‚ multi projected capacitive touch screen combines TFT LCD panels and high-performance ARM based mainboard, with sleek and flat front surface industrial grade IP65 ingress rating. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various interactive o applications.




• Centralized server controls content distribution;

• Combined hardware and software solution for fast, reliable delivery of digital signage content and continuous operation;

• Easy WIFI network system installation without the need for extra IT, firewall or security configurations;

• Simple content scheduling and updating for each display;

• Restart and update digital signage players remotely;

• Create and update separate schedules for each display, al owing for targeted ads at each terminal or different locations;

• Deliver rich media including: Multiple video and audio formats, RSS feeds and image slide shows;

• Transfer schedules and contents to one or more displays;

• Control, monitor and design screen layouts remotely by the admin software;

• Support Multi-zone terminal display and flexible screen layout;

• Local review of multi-zone display layout once the content is stored in the server PC;

• Manage daily power on/off time for any display or group of displays;

• Deliver high definition image content;

• Content plays automatically upon set up of schedule;

• Display live news, weather, traffic reports, emergency announcements and many other notices;

• Anytime insert emergent video file;

• Remotely report system utilization and memory usage;

• System automatically notifies administrator of any malfunction;

• Custom-features development service available from our professional software team;

• Daily, monthly display content recording;

• Possible to integrate with the any existing management system.



Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 7”/16:9
Active Area/ Pixel Pitch 153.6(W) x 90(H)mm/0.150 × 0.150mm
Native Resolution/ Colors 1024 x 600/ 262K/16.7M
Brightness/ Contrast 400cd/㎡/800:1
Response Time 50ms
Viewing Angle(Typical) 85/85/85/85
Light Source LED Backlight with 50000Hours’Lifetime



CPU: ARM Quad Core RK3288,Main CPU frequency:1.8GHz

GPU: Mali-T764 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 5.1/6.0; Bluetooth: Optional

Video Decoder: 4K VP8 and 4K 10bits H265/H264

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM


Photo Format: Supports JPG/BMP/GIF/TIFF/PNG

Input / Output

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG; 4 × COM;

1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

Operating Temperature -10~60℃(-20~70℃ Optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90% (Non Condensing)
Order Information 7”Flat Bezel Android Panel PC with PCAP Touch/ITD07PPCT5KXE31
7”Flat Bezel Android Panel PC with Tempered Glass/ITD07PPCG1XE31



▪ Easy-to-clean, true flat front surface without bezel

▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA

▪ Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)

▪ Eliminates dust and debris build-up at the edge and corners of the display

▪ Provides improved power efficiency and reduced consumption

▪ Responds to a light touch to activate response

▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

▪ CE, FCC, RoHS Compliance


Product Display:

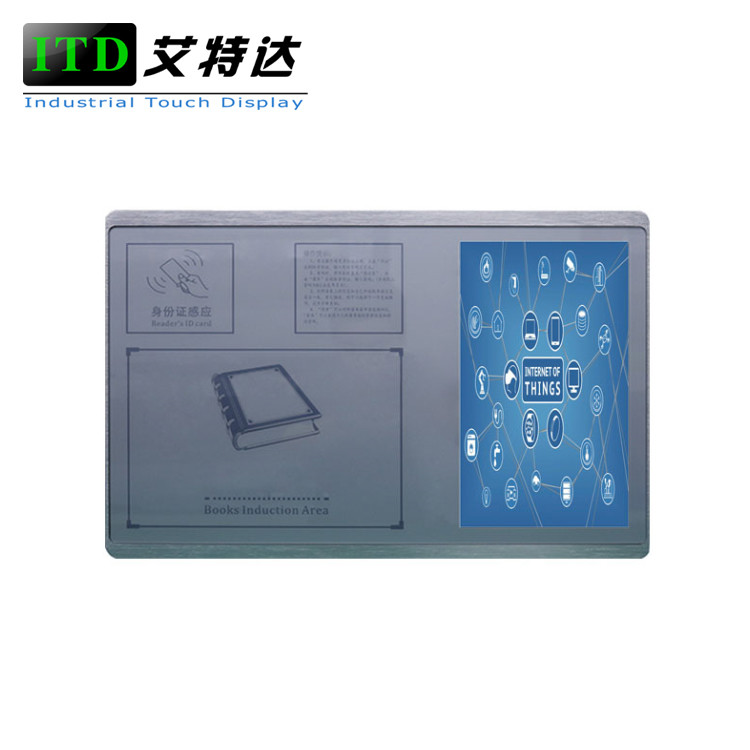

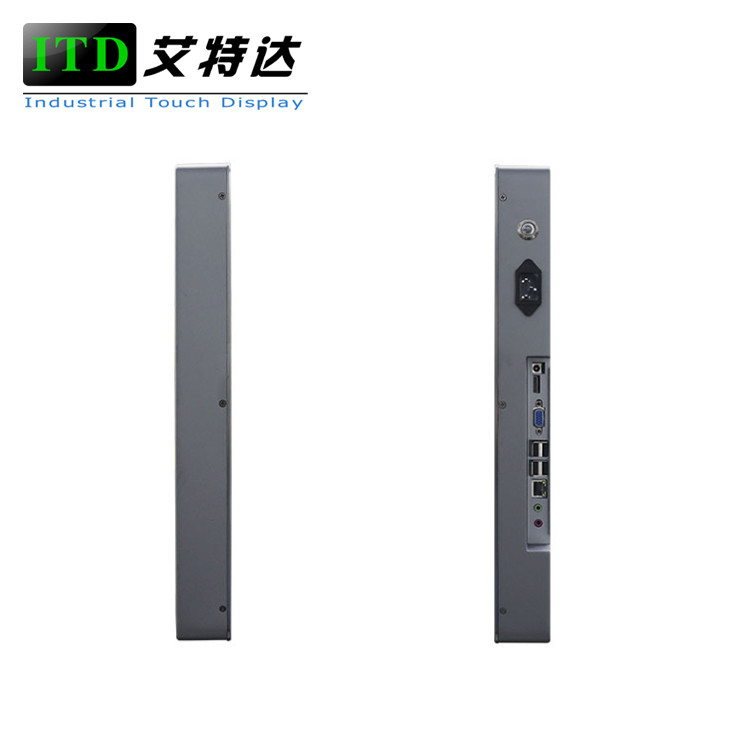

7'' 1024x600 Wall Mount Touch Screen PC ID Recognition For Library 07'' 1024x600 Wall Mount Touch Screen PC ID Recognition For Library 17'' 1024x600 Wall Mount Touch Screen PC ID Recognition For Library 27'' 1024x600 Wall Mount Touch Screen PC ID Recognition For Library 3
