Multi Capacitive Touch Panel PC Combines ARM Based Octa Core Processor 10.1" Video Intercom System

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD101PPCT5ME1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 3-7 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU ARM Eight-Core RK3399 Aspect Ratio 16:10
Native Resolution 1280 X 800 Brightness 300 Nits
Viewing Angle 80/80/80/80 OS Android 7.1 Or Linux Ubuntu
Memory 2GB
High Light

touch monitor pc

,

touch display pc

Leave a Message
Product Description

smart 10.1" video intercom system fully-integrated multi capacitive touch screen combines ARM based Octa-Core Processor



ITD 10.1” smart video intercom is fully-integrated‚ multi capacitive touch screen combines high-performance ARM based Octa-Core Processor RK3399 2.0GHz, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, combined with a smart reader, camera, relay, speaker and microphone with sleek and flat front surface industrial design. This stylish capacitive multi-touch intercom system has everything it takes for a convenient and versatile home automation. It is perfect for door control, custom software interface for interaction between intercom and smartphone and outdoor IP front protection from water (no ghost touches) and dust makes this device primary choice for entrance control.





Panel Cell Type/Glass Surface TFT
Size 10.1”
Aspect Ratio 16:10
Active Area 216.81(W) × 135.50(H)mm
Pixel Pitch 0.113 × 0.113mm
Native Resolution 1280 x 800
Colors 16.7M
Brightness 300cd/㎡
Contrast 800:1
Response Time 14ms
Viewing Angle(Typical) 160/160
Light Source LED Backlight with 30000Hours’Lifetime

SPECIFICATION

System

CPU: ARM Eight-Core RK3399,Main CPU frequency:2.0GHz;

GPU: Mali-T860 GPU, Supports AFBC(ARM Frame Buffer Compression)

Memory: 2G

Storage: 16G EMMC

OS: Android 7.1 or Linux Ubuntu 16.04

Input / Output

1 × Relay

2 × USB2.0, 2 × USB3.0

1 × HDMI

1 × RJ45 LAN Ethernet 10/100/1000 Mbps (Realtek RTL8211E);

1 × SIM Card Slot/TF Card Slot

1 × DC 12V 2.0

Operating Temperature -20~70℃
Storage Temperature -20~70℃
Operating Humidity 10%~90% (Non Condensing)
Power Consumption Below 18W









Product Display

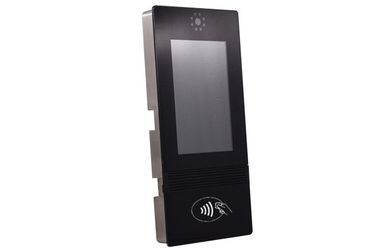

Multi Capacitive Touch Panel PC Combines ARM Based Octa Core Processor 10.1" Video Intercom System 0

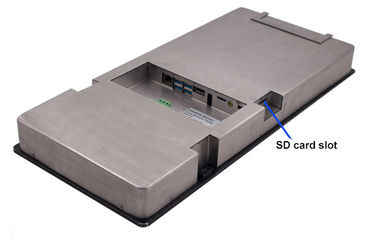

Multi Capacitive Touch Panel PC Combines ARM Based Octa Core Processor 10.1" Video Intercom System 1





Multi Capacitive Touch Panel PC Combines ARM Based Octa Core Processor 10.1" Video Intercom System 2

OPTIONALS



•WIFI, Bluetooth

•Camera with night vision

•PoE

•Card Reader

•Fully sealed waterproof








Packing


Multi Capacitive Touch Panel PC Combines ARM Based Octa Core Processor 10.1" Video Intercom System 3
