10.1" Touch Panel PC Capacitive Touchscreen For Door Entry Smart Video Intercom System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 10.1" | Native Resolution | 1280 X 800 |
|---|---|---|---|
| Brightness | 300 Nits | OS | Android 7.1 Or Linux Ubuntu |
| Input | 1 × Relay,2 × USB2.0, 2 × USB3.0,1 X HDMI,1XRJ45,1X SIM Card Slot | Power Consumption | Below 18W |
| High Light | touch monitor pc,touch display pc |
||
Product Description

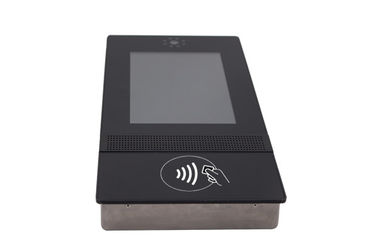

10.1" touch panel PC capacitive touchscreen for door entry smart video Intercom system
FEATURES
•Easy-to-clean, true flat front surface without bezel
•Ten independent touch points with anti-vandalism & scratch
•Eliminates dust and debris build-up at the edge and corners of the display
•Rockchip RK3399/2.0GHz Processor with Android 7.1/Linux Ubuntu 16.04 OS supported
•Ruggedized levels of NEMA 4, IP65 ratings for front panel
•Stainless steel chassis and aluminum front panel construction designed for public and harsh environments
•Flush mount and surface mount supported
•CE, FCC, RoHS Compliance
| Panel | Cell Type/Glass Surface | TFT |
| Size | 10.1” | |
| Aspect Ratio | 16:10 | |
| Active Area | 216.81(W) × 135.50(H)mm | |
| Pixel Pitch | 0.113 × 0.113mm | |
| Native Resolution | 1280 x 800 | |
| Colors | 16.7M | |
| Brightness | 300cd/㎡ | |
| Contrast | 800:1 | |
| Response Time | 14ms | |
| Viewing Angle(Typical) | 160/160 | |
| Light Source | LED Backlight with 30000Hours’Lifetime |
SPECIFICATION
| System |
CPU: ARM Eight-Core RK3399,Main CPU frequency:2.0GHz; GPU: Mali-T860 GPU, Supports AFBC(ARM Frame Buffer Compression) Memory: 2G Storage: 16G EMMC OS: Android 7.1 or Linux Ubuntu 16.04 |
| Input / Output |
1 × Relay 2 × USB2.0, 2 × USB3.0 1 × HDMI 1 × RJ45 LAN Ethernet 10/100/1000 Mbps (Realtek RTL8211E); 1 × SIM Card Slot/TF Card Slot 1 × DC 12V 2.0 |
| Operating Temperature | -20~70℃ |
| Storage Temperature | -20~70℃ |
| Operating Humidity | 10%~90% (Non Condensing) |
| Power Consumption | Below 18W |
Product Display
OPTIONALS
•WIFI, Bluetooth
•Camera with night vision
•PoE
•Card Reader
•Fully sealed waterproof
