RFID UHF Touch Panel PC Android 7.1 12.1 Inch DRAM 2GB With Face Recognition
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD12PPCT5XE1-RFID-FR |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 15 work days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | ARM Based RK3288 | Memory | DRAM 2GB |
|---|---|---|---|
| Storage | Sandisk EMMC 8G | OS | Android 6.0/7.1 |
| I/O | 2 X USB,1 X HDMI,1 X VGA, 1 X DC RJ45 | TF Slot | 1 X TF Slot |
| Operating Temperature | -10~60℃ | 3G/4G | Optional |
| MTBF | 50000H | Power | 1 X DC 12V,, DC24, DC9-36V Optional |
| GPS, PoE | Optional | Aging Test | 48H |
| Housing Type | Aluminum Front Bezel, Steel Back Chassis | Peripherals | Face Recognition, RFID, Finger Reader Integrated |
| High Light | touch panel computer,touch monitor pc |
||
Product Description

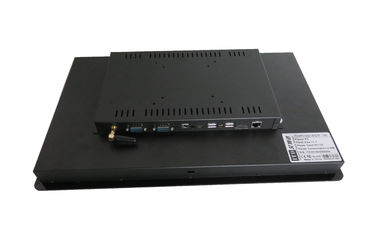

12.1inch pc industrial touch screen with face recognition/RFID UHF/finger reader Android 7.1
BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Edge to edge design with true flat surface, easy to clean
- Equipped with projected capacitive touch screen
- All steel construction designed for harsh and industrial environments
- Easy-to-install embedded/panel mounting with clamps
- Robust design with aluminum NEMA 4/ IP65 front panel
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Integrated with RFID reader, finger-reader, camera, microphone, etc. peripherals
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial touch panel computer PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel PC is combined with PCAP or resistive touch makes true flat surface with easy to clean. The custom industrial panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, x86 based or ARM based comprehensive embedded processors and chipsets, integrated RFID/NFC/MSR smart card readers, web camera (face recognition), QR reader, finger reader, thermal printer, barcode scanner, etc. peripherals, low power consumption, fanless design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, smart intercom, room reservation, room scheduling, and custom HMI applications.
SPECIFICATION
12.1 inch Touch Panel Computer with Face Recognition/RFID UHF/Finger Reader | |||
| Model Name | ITD12PPCT5X**** | ||
| IP Rating | IP65 Front Panel | ||
PC Systems Options | |||
| ARM Android Based RK3288(RK3368 optional) | X86 Windows Based | X86 Windows Based | |
| CPU: Quad-Core Cortex-A17 1.8GHz | CPU: Intel® Celeron J1900 | CPU: Intel Core i3/i5/i7 | |
| Chipset: N/A | Chipset: Intel® HD Graphics, Support 1080p | Chipset: Intel® HD Graphics, Support 1080p | |
| Memory: 1G/2G | Memory: 2GB(Max. 8GB) | Memory: 2GB(Max. 8GB) | |
| HDD/SSD: 8G | HDD/SSD:500G/64G | HDD/SSD:500G/64G | |
| 1×HDMI | 1×VGA, 1×HDMI | 1×VGA, 1×HDMI | |
| 1×USB 2.0 | 2×USB 2.0, 2×USB3.0 | 2×USB 2.0, 2×USB3.0 | |
| 1×mini-SD slot | 1×COM(RS232/422/485) | 1×COM(RS232/422/485) | |
| 1×LAN | 1×LAN | 1×LAN | |
| 1×Audio Out | 1×Audio Out, 1×MIC In | 1×Audio Out, 1×MIC In | |
| Expansion: SSD | Expansion: USB, COM, Mini-PCIe | Expansion: USB, COM, Mini-PCIe | |
LCD Panel | |||
| Screen Diagonal (Inch) | 12.1” | ||
| Display Active Screen Size (cm) | 246.0(H)×184.5(V) | ||
| Aspect Ratio | 4:3 | ||
| Physical Resolution | 800×600 (1024×768 optional) | ||
| Maximum Resolution Supported | 1920×768 | ||
| Colors | 16.7M | ||
| Brightness (cd/m²) | 300 | ||
| Contrast Ratio | 600:1 | ||
| View Angels | 80/80/70/70 | ||
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours'LifetimeV | ||
Touch Panel | |||
| Touch Options | Resistive, PCAP | ||
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi | ||
Operation | |||
| Operating Temperature Range | -10~60°C (-20~70°C Optional) | ||
| Humidity Range (RH) | 10-90% | ||
| 24/7/365 Use | Supported | ||
Power | |||
| Power Indicator | Green LED | ||
| Power Input | DC 12V | ||
| Power Consumption | 33.9W | ||
Order Information | |||
| 12.1”Custom PCAP Touch Android PC RK3288 with Face Recognition/RFID/Finger Reader | ITD12PPCT5XE1-RFID-FR | ||
| 12.1”Custom PCAP Touch Android PC RK3399 with Face Recognition/RFID/Finger Reader | ITD12PPCT5XE1-RFID-FR | ||
| 12.1”Custom PCAP Touch PC Intel J1900 with Face Recognition/RFID/Finger Reader | ITD12PPCT5XJ1-RFID-FR | ||
| 12.1”Custom PCAP Touch PC Intel i3 with Face Recognition/RFID/Finger Reader | ITD12PPCT5XI3-RFID-FR | ||
| 12.1”Custom PCAP Touch PC Intel i5 with Face Recognition/RFID/Finger Reader | ITD12PPCT5XI5-RFID-FR | ||
| 12.1”Custom PCAP Touch PC Intel i7 with Face Recognition/RFID/Finger Reader | ITD12PPCT5XI7-RFID-FR | ||
