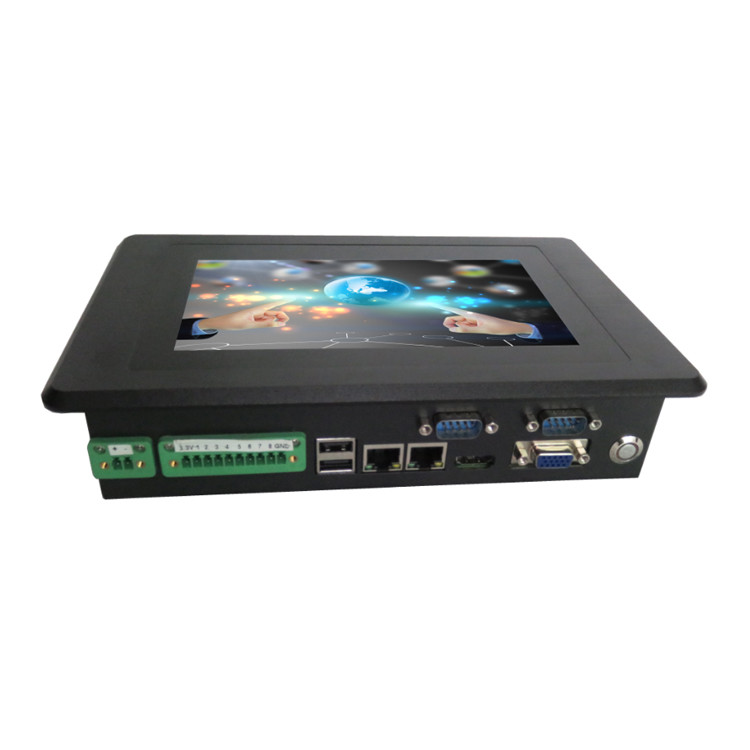

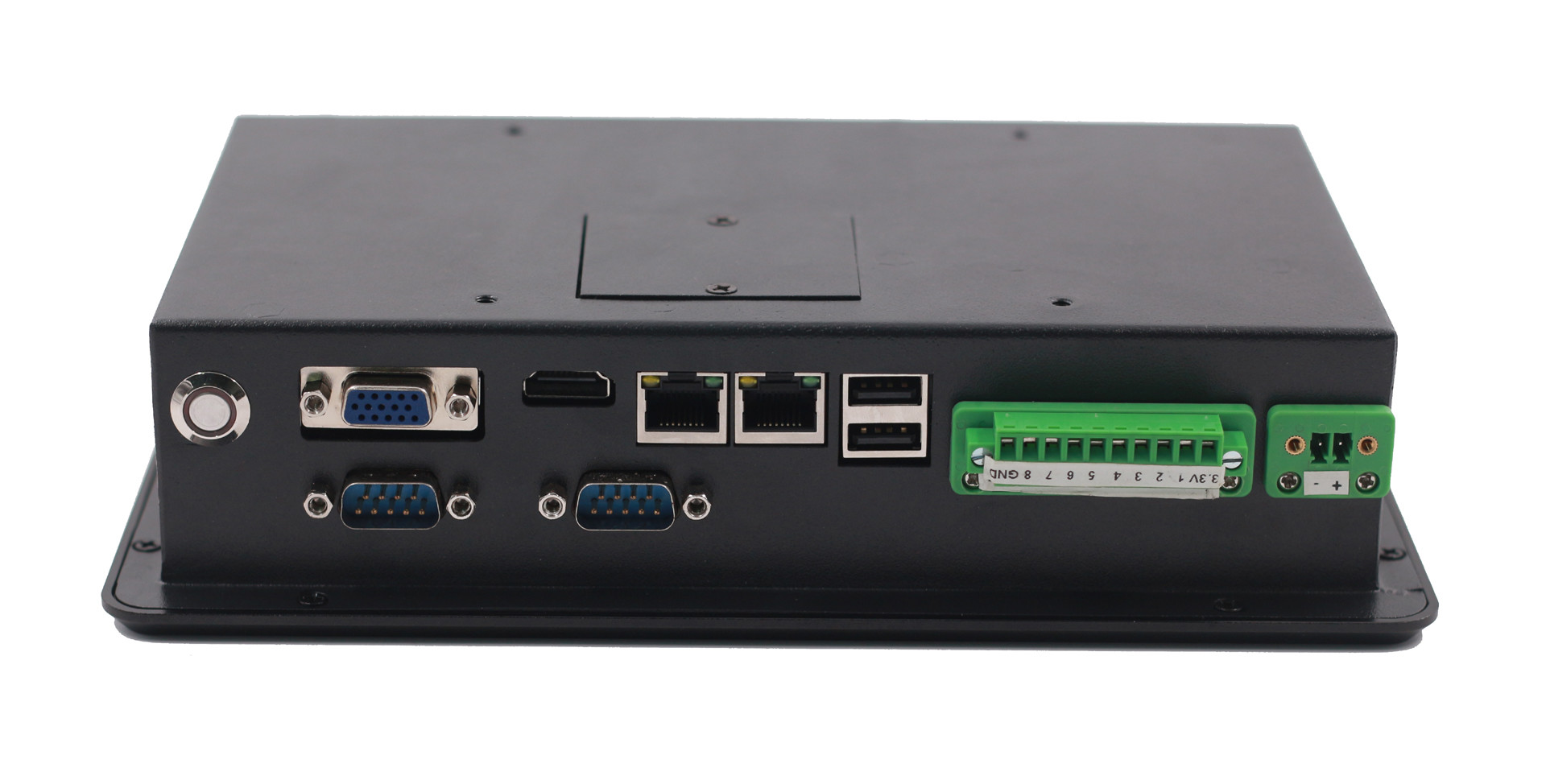

Industrial Panel Mount Touch Screen PC 7 Inch Android High Brightness AC100-240V

  • Industrial Panel Mount Touch Screen PC 7 Inch Android High Brightness AC100-240V
  • Industrial Panel Mount Touch Screen PC 7 Inch Android High Brightness AC100-240V
  • Industrial Panel Mount Touch Screen PC 7 Inch Android High Brightness AC100-240V
Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD07PPCT5XE1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,wooden case,pallet
Delivery Time 10-15 work days
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU ARM Android RK3288 1.8GHz Memory 2G, Up To 4G
Storage 8G Up To 32G OS Android 5.1, 6.0, 7.1, Linux
Expansion 1 X Mini PCIe (Supports 3G/4G) Native Resolution 1024 X 600
IP65 Front Yes Material Aluminum Front Bezel, Steel Back Chassis
MTBF 50000H Warranty 1 Year For TFT Panels And 2 Years For Others
High Light

touch panel computer

,

touch monitor pc
Leave a Message
Product Description

7 inch android industrial panel pc multi touch pc industrial panel mount computer



ITD New Series multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines Android media player, and Projected Capacitive Touch (PCT or PCAP)Technology in TFT LCD flat panels, with sleek and flat front surface commercial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various interactive digital signage applications.



OPTIONAL

•DC 24V, DC9-36V, AC100-240V

•High brightness, sunlight readable

•Resistive touch screen, tempered glass

•Web camera, speakers, RFID, NFC, Fingerprint, QR reader, Thermal printer, etc



SPECIFICATION

PARAMETERS

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 7”/16:9
Active Area/ Pixel Pitch 153.6(W) x 90(H)mm/0.150 × 0.150mm
Native Resolution/ Colors 1024 x 600/ 262K/16.7M
Brightness/ Contrast 400cd/㎡/800:1
Response Time 50ms
Viewing Angle(Typical) 85/85/85/85
Light Source LED Backlight with 50000Hours’Lifetime
System

CPU: ARM Quad Core RK3288,Main CPU frequency:1.8GHz

GPU: Mali-T764 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 5.1/6.0; Bluetooth: Optional

Video Decoder: 4K VP8 and 4K 10bits H265/H264

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG
Input / Output

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG; 4 × COM;

1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);
Operating Temperature -10~60℃(-20~70℃ Optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90% (Non Condensing)
Order Information 7”Flat Bezel Android Panel PC with PCAP Touch/ITD07PPCT5KXE31
7”Flat Bezel Android Panel PC with Tempered Glass/ITD07PPCG1XE31



Image:



Industrial Panel Mount Touch Screen PC 7 Inch Android High Brightness AC100-240V 0Industrial Panel Mount Touch Screen PC 7 Inch Android High Brightness AC100-240V 1Industrial Panel Mount Touch Screen PC 7 Inch Android High Brightness AC100-240V 2
