9.7 Inch Touch Screen Industrial Grade LCD Monitors VGA HDMI Inputs IP65

Place of Origin China
Brand Name ITD/OEM
Certification CE,ROHS,FCC
Model Number ITD09PMT5X31
Minimum Order Quantity 1 unit
Price TBA
Packaging Details Foam,gift box,master carton,woonden case,pallet
Delivery Time 10-15 work days
Payment Terms T/T,Western Union,Paypal
Supply Ability 10000 units per month
Product Details
Screen Diagonal 9.7 Inch Aspect Ratio 4:3
Physical Resolution 1024×768 Brightness 350nits,
Backlight/Backlight Lifetime LED Backlight With 50000 Hours’ Lifetime View Angels 80/80/80/80
Operating Temperature Range -10~60°C Video Input VGA/DVI/HDMI
Touch Options Resistive, Projected Capacitive Touch OS Supported Windows, Linux, Android, Mac, Raspberry Pi
MTBF 50000Hours Warranty 1 Year For TFT Panels And 2 Years For Others
Waterproof IP65 Front Panel
High Light

panel mount lcd monitor

,

industrial touch monitor

Leave a Message
Product Description

9.7 Inch touch screen industrial panel embedded mount display VGA HDMI inputs



ITD 9.7” ITD09PMN101 panel-mount LCD monitor has been designed to provide the industrial user with superior picture quality and state-of-the-art features housed in a rugged industrial enclosure with brushed aluminum front bezel, which will assure reliable operation in most factory environments rugged in design and fit perfectly into any rack enclosure. It is space saving for your compact environment rack.



FEATURES

•High contrast color TFT LCD display supports resolution up to 1024 x 768

•Supports DDC 1/2B for Plug & Play compatibility

•Advanced OSD control for picture quality adjustment

•All steel construction designed for harsh and industrial environments

•The LED backlight enables optimal viewing in all lighting conditions

•CE,FCC, RoHS Compliance



OPTIONALS

•AR/AG Tempered glass

•Touch sensor technologies: SAW, IR, PCAP

•High brightness, sunlight readable

•AV, S-Video inputs, RS232 remote control



SPECIFICATION

Panel Cell Type/Glass Surface TFT
Aspect Ratio/Size 9.7” 4:3
Active Area/Pixel Pitch 196.608(W) x 147.456(H)/0.192mm
Native Resolution/Colors 1024 x 768 /262K
Brightness/Contrast 400nits/600:1
Response Time 30ms
Viewing Angle(Typical) 80/80/80/80
Light Source LED backlight with 50000hours’lifetime
Frequency 55Hz~75Hz
Input signals VGA,HDMI
Convenient Features Backlight adjustment, Plug & Play, OSD Multi-Languages
Power External AC-to-12VDC power adapter with universal/Auto-Sensing
Power Consumption Operation/Power Saving Below 15W
Touch Panel Resistive touch screen
Touch interface USB
Key Control Power on/off with LED, Menu, Select, Adjustment(Right/Left)
Order Information 9.7”chassis monitor no touch/ITD09CMN101
9.7”chassis monitor with protective glass/ITD09CMG101
9.7”chassis monitor with PCT Touch/ITD09CMT501



Product Display:

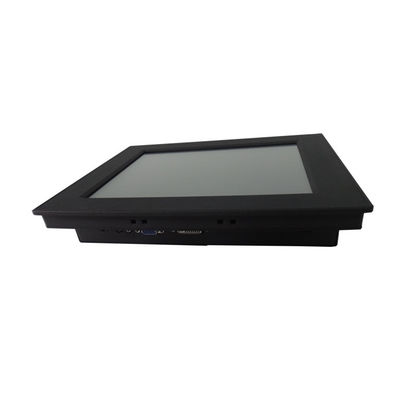

9.7 Inch Touch Screen Industrial Grade LCD Monitors VGA HDMI Inputs IP65 09.7 Inch Touch Screen Industrial Grade LCD Monitors VGA HDMI Inputs IP65 1
