High Brightness Sunlight Readable LCD Monitor 16/9 Aspect Ratio Anti Vibration LCD Monitor
1pcs
MOQ
TBA
Price
High Brightness Sunlight Readable LCD Monitor 16/9 Aspect Ratio Anti Vibration LCD Monitor
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: ITD
Certification: CE, FCC, RoHS
Model Number: ITD156CMT1IPHBHRA2
High Light:

sun readable lcd display

,

daylight readable lcd monitor

Payment & Shipping Terms
Packaging Details: 1-5pcs/CTN, Safe, Firm
Delivery Time: 20 Business Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000PCS/Month
Specifications
Aspect Ratio: 16:9
Active Area: 344.16(H) X 193.59(V)mm
Response Time: 30ms
Viewing Angle: 80/80/80/65
Optical Bonding: Optional
IP Rating: IP65/IP66/IP67
Operating Temperature: -10~60℃
Product Description

high brightness sunlight readable aluminum alloy anti-corrosive anti-vibration lcd monitor



15.6”rugged industrial rugged high bright full IP65/IP66 LCD display series features industrial-duty fully sealed NEMA 4/IP65 aluminum alloy chassis, for specially use in hygienic and harsh indoor/outdoor environments. It offers extra protection from extensive corrosive environments with the intrusion of dust, rain, hose directed water, and applications where corrosive materials and caustic cleaners are used. The additional high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality and guaranteeing product life cycle longevity, stability, and reliability.



FEATURES



▪Rugged stainless-steel/Aluminum alloy enclosure

▪IP65/IP66 sealed, with anti-corrosive rubber providing 360-degree protection

▪Full IP65/IP66 I/O connectors protect from any particles, water, and corrosive agents

▪Modularize mechanical design provides flexible product configuration and easy maintenance

▪Complete custom design/solution

▪CE, FCC, RoHS Compliance



Panel Cell Type/Glass Surface TFT
Aspect Ratio/Size 15.6” 16 : 9
Active Area/Pixel Pitch 344.16(H) x 193.59(V)mm/0.17925 x 0.17925mm
Native Resolution/Colors 1920 x 1080 /16.7M
Brightness/Contrast 1000nits/800:1
Response Time 30ms
Viewing Angle(Typical) 80/80/80/65
Light Source LED Backlight with 50000Hours’Lifetime
Input Signal HDMI (Waterproof Connector)
Power Input DC 12V (Waterproof Connector)
Touch Panel Resistive/PCAP Touch Panel with Waterproof USB Connector
Power Consumption Operation/Power Saving Below 18W
Operating Temperature -10~60℃
Storage Temperature -20~70℃
Order Information 15.6” FHD Full IP66 monitor 1000nits with tempered glass/ITD156CMG1IPHBHRA2
15.6” FHD Full IP66 monitor 1000nits with Resistive touch/ITD156CMT1IPHBHRA2
15.6” FHD Full IP66 monitor 1000nits with PCAP touch/ITD156CMT5IPHBHRA2


BENEFITES

  • Exceptional quality and highly engineered industrial heavy duty monitors
  • Optional touchscreens like resistive and PCAP
  • Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
  • Solid steel and stainless steel or aluminum alloy enclosures
  • IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
  • Accuracy in high-use applications
  • Long lasting product cycle for continuity thru all phases of project

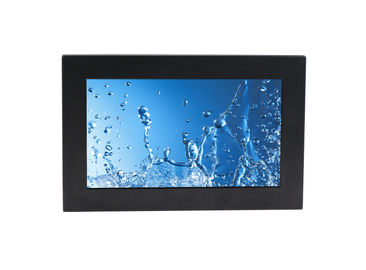

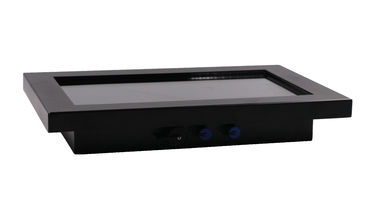

Product display



marine sunlight readable lcd monitor





IP66 waterproof aluminu alloy marine monitor

High Brightness Sunlight Readable LCD Monitor 16/9 Aspect Ratio Anti Vibration LCD Monitor 2

Applications:

High Brightness Sunlight Readable LCD Monitor 16/9 Aspect Ratio Anti Vibration LCD Monitor 3
