15.6" Sunlight Readable LCD Monitor Fully Sealed NEMA 4 / IP65 Aluminum Alloy
1pcs
MOQ
TBA
Price
15.6" Sunlight Readable LCD Monitor Fully Sealed NEMA 4 / IP65 Aluminum Alloy
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: ITD
Certification: CE, FCC, RoHS
Model Number: ITD156CMT1IPHBHRA2
High Light:

sun readable lcd display

,

daylight readable lcd monitor

Payment & Shipping Terms
Packaging Details: 1-5pcs/CTN, Safe, Firm
Delivery Time: 20 Business Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000PCS/Month
Specifications
Brightness: 1000 Nits
Voltage: DC12V/9-36V
Interface Type: HDMI Input(waterproof)
Touch Panel: IR/Resistive/PCAP Touch Panel With Waterproof USB Connector
Pixel Pitch: 0.17925 X 0.17925mm
Material: Rugged Aluminum Alloy Enclosure
Product Description

15.6" fully sealed NEMA 4/IP65 aluminum alloy anti-corrosive anti-vibration marine use lcd monitor



FEATURES



▪Rugged stainless-steel/Aluminum alloy enclosure

▪IP65/IP66 sealed, with anti-corrosive rubber providing 360-degree protection

▪Full IP65/IP66 I/O connectors protect from any particles, water, and corrosive agents

▪Modularize mechanical design provides flexible product configuration and easy maintenance

▪Complete custom design/solution

▪CE, FCC, RoHS Compliance



Panel Cell Type/Glass Surface TFT
Aspect Ratio/Size 15.6” 16 : 9
Active Area/Pixel Pitch 344.16(H) x 193.59(V)mm/0.17925 x 0.17925mm
Native Resolution/Colors 1920 x 1080 /16.7M
Brightness/Contrast 1000nits/800:1
Response Time 30ms
Viewing Angle(Typical) 80/80/80/65
Light Source LED Backlight with 50000Hours’Lifetime
Input Signal HDMI (Waterproof Connector)
Power Input DC 12V (Waterproof Connector)
Touch Panel Resistive/PCAP Touch Panel with Waterproof USB Connector
Power Consumption Operation/Power Saving Below 18W
Operating Temperature -10~60℃
Storage Temperature -20~70℃
Order Information 15.6” FHD Full IP66 monitor 1000nits with tempered glass/ITD156CMG1IPHBHRA2
15.6” FHD Full IP66 monitor 1000nits with Resistive touch/ITD156CMT1IPHBHRA2
15.6” FHD Full IP66 monitor 1000nits with PCAP touch/ITD156CMT5IPHBHRA2



Product display



marine monitor

marine sunlight readable lcd monitor





IP66 waterproof aluminu alloy marine monitor

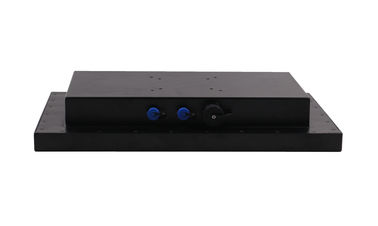

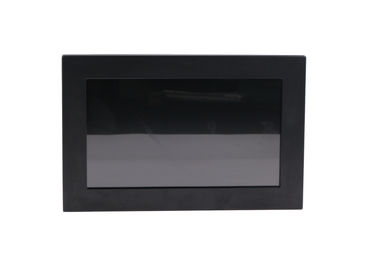

15.6" Sunlight Readable LCD Monitor Fully Sealed NEMA 4 / IP65 Aluminum Alloy 3





15.6" Sunlight Readable LCD Monitor Fully Sealed NEMA 4 / IP65 Aluminum Alloy 4

Certifications:

15.6" Sunlight Readable LCD Monitor Fully Sealed NEMA 4 / IP65 Aluminum Alloy 5
