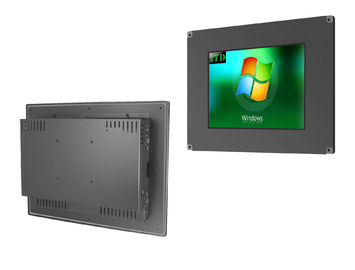

All In One Touch Panel PC 9 - 36V Voltage Power Multi Capacitive Touch Screen
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel J1900,i3,i5,i7 | Voltage Power | 9-36V |
|---|---|---|---|
| Ruggedized Levels | NEMA 12, NEMA 4, IP52, IP54, IP65 Ratings For Front Panel | Enclosure | Rugged Aluminum Front Bezel And Steel Chassis Construction Designed For Harsh And Industrial Environments |
| LAN | 1 X 10/100/1000Mbps Ethernet | WIFI | Built-in, 802.11a/b/g/h (optional) |
| Operating Temperature | -10~60℃ | ||
| High Light | touch panel computer,touch monitor pc |
||
Product Description
marine panel PC all in one touch flush mounted IP front front panel PC with pcap touch from 10-24 inch
The ITD industrial touch screen flush mounted panel PC series is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® i3/i5/i7 Processor with Projected Capacitive Touch (PCT or PCAP) Technology in an industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel. The Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8 and other popular programming languages. The multi-touch flush mounted panel PC can be used in industrial processing machines, control systems, automation systems, and especially marine application.
| Model | ITD10PPCT5MI* | ITD12PPCT5MI* | ITD15PPCT5MI* | ITD17PPCT5MI* | ITD19PPCT5MI* | ITD21PPCT5MI* | |
| Size | 10.4” | 12.1” | 15” | 17” | 19" | 21.5" | |
| Active Area(mm) | 211.2 x158.4 | 246.0x184.5 | 304.12x228.09 | 337.92x270.33 | 376.32x301.06 | 476.64x268.11 | |
| Contrast Ratio | 500:1 | 500:1 | 700:1 | 1000:1 | 1000:1 | 1000:1 | |
| Resolution | 800 x 600 | 800 x 600 | 1024 x 768 | 1280 x 1024 | 1280 x 1024 | 1920 x 1080 | |
| Brightness | 300nits | 300nits | 250nits | 250nits | 250nits | 250nits | |
| Viewing Angles | 70/70/60/70 | 70/70/60/60 | 80/80/60/70 | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 or 89/89/89/89 | |
| Backlight | LED | LED | LED | LED | LED | LED |
SPECIFICATION
| System | CPU | Intel® I3/I5/I7 Processor |
| BIOS | Award BIOS 4/8Mbit SPI Flash ROM | |
| Chipset | Intel HD Graphics | |
| Memory | 1xSO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB | |
| Graphic Chipset | CPU integrated graphics HD and support 1080p | |
| Storage | 64GB SSD or 500GB HDD, max. 512GB SSD or 1TB HDD | |
| LAN | 1 x 10/100/1000Mbps Ethernet | |
| Input / Output | Serial Ports | 1 x COM |
| USB Ports | 4 X USB | |
| VGA Port | 1 x VGA | |
| HDMI Port | 1 x HDMI Port | |
| Power Port | 9~36V DC Input | |
| Audio Card | Realtek ALG662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN | |
| Environment Considerations | WIFI | Built-in, 802.11a/b/g/h (optional) |
| Touch Screen | Type | Projected Capacitive Touch Screen with 10 independent touch points |
| Response Time | ≤5ms | |
| Interface | USB or COM, default to USB | |
| Transparency | ≥85% | |
| Lifetime | ≥50,000,000 times/click | |
| OS Support | Windows CE/XP/7/8, Linux, Mac, Android | |
| Operation/Power Saving | TBA | |
| Operating Temperature | -10~60℃ | |
| Storage Temperature | -20~70℃ | |
| Operating Humidity | 5%~95% (non condensing) | |
| Anti-Vibration | 5Hz-500Hz / 1Grms/3 Axis | |
| Anti-Shock | 15G, 11ms duration | |
| Mechanical Mounting | Panel/Flush Mounting with IP65, VESA Brackets Mounting | |
| OS Support | Windows7/8/10, Linux | |
| Order Information | Marine Panel PC Intel i3 with Resistive Touch/ITD**PPCT1MI3 | |
| Marine Panel PC Intel i3 with PCAP Touch/ITD**PPCT5MI3 | ||
| Marine Panel PC Intel i3 with Tempered Glass/ITD**PPCG1MI3 | ||
| Marine Panel PC Intel i5 with Resistive Touch/ITD**PPCT1MI5 | ||
| Marine Panel PC Intel i5 with PCAP Touch/ITD**PPCT5MI5 | ||
| Marine Panel PC Intel i5 with Tempered Glass/ITD**PPCG1MI5 | ||
| Marine Panel PC Intel i7 with Resistive Touch/ITD**PPCT1MI7 | ||
| Marine Panel PC Intel i7 with PCAP Touch/ITD**PPCT5MI7 | ||
| Marine Panel PC Intel i7 with Tempered Glass/ITD**PPCG1MI7 | ||
BENEFITES
- Exceptional quality and highly engineered industrial heavy duty monitors
- Optional touchscreens like resistive and PCAP
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
- Solid steel and stainless steel or aluminum alloy enclosures
- IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
- Accuracy in high-use applications
- Long lasting product cycle for continuity thru all phases of project
