Zero Bezel AIO 1024x768 15in All In One Touch PC For Kiosk
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel Core I3/i5/i7/Android/J1900 | Native Resolution | 1024x768 |
|---|---|---|---|
| LAN | 1 X 10/100/1000Mbps Ethernet | USB Ports | 4X USB |
| Input Voltage | DC 12V | Operating Temperature | -10~60℃ |
| Brightness | 250 Nits | Serial Port | 1 X COM |
| HDMI Port | 1xHDMI Output | ||
| High Light | 15in All In One Touch PC,1024x768 All In One Touch PC,Zero Bezel Capacitive Touch Screen |
||
Product Description
zero bezel AIO industrial all in one touch panel PC 15inch capacitive touch screen for kiosk
ITD 15” multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance Intel® Celeron™ Quad Core Processor J1900,intel i3,i5,i7, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panel, with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experience. The multi-touch HMI comfort panel PC specifically suited for various interactive digital signage applications.
SPECIFICATIONS
| Panel | Cell Type/Glass Surface | TFT |
| Size | 15” | |
| Aspect Ratio | 4:3 | |
| Active Area | 304.128(H)x 228.096(V)mm | |
| Pixel Pitch | 0.297 × 0.297mm | |
| Native Resolution | 1024 × 768 | |
| Colors | 16.2M | |
| Brightness | 250nits | |
| Contrast | 700:1 | |
| Response Time | 5ms | |
| Viewing Angle(Typical) | 80/80/60/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime | |
| System | CPU | Intel® Celeron J1900 2.0GHz Processor |
| BIOS | UEFI | |
| Chipset | Intel Valley View SSA‐Cunit | |
| Memory | 1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB | |
| Graphic Chipset | CPU integrated graphics HD and support 1080p | |
| Storage | 64GB SSD or 500GB HDD | |
| LAN | 1 x 10/100/1000Mbps Ethernet | |
| Input/Output | Serial Ports | 1 x COM |
| USB Ports | 4 X USB | |
| VGA Port | 1 x VGA | |
| HDMI Port | 1x HDMI Port | |
| Audio Card |
with Realtek ALC662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN |
|
| Power | Input Voltage | DC 12V |
| Operation/Power Saving | 30W | |
| Environment Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90%(Non Condensing) | |
| OS Support | Windows 7/ Windows XP/ Windows 8/ Linux/Windows 10 | |
| Mounting Method | VESA, Side Mounting Brackets | |
| Accessories | Power cable, Motherboard CD driver, Screws | |
| Order Information | 15” Zero-Bezel PCAP Touch Panel PC with J1900/ITD15PPCT5KJ | |
| 15” Zero-Bezel Non Touch Panel PC with Intel J1900/ITD15PPCG1KJ | ||
| Order Information | 15” Zero-Bezel PCAP Touch Panel PC with Intel i3/ITD15PPCT5KI3 |
| 15” Zero-Bezel PCAP Touch Panel PC with Intel i5/ITD15PPCT5KI5 | |
| 15” Zero-Bezel PCAP Touch Panel PC with Intel i7/ITD15PPCT5KI7 | |
| 15” Zero-Bezel Panel PC with Tempered Glass/ITD15PPCG1KI* |

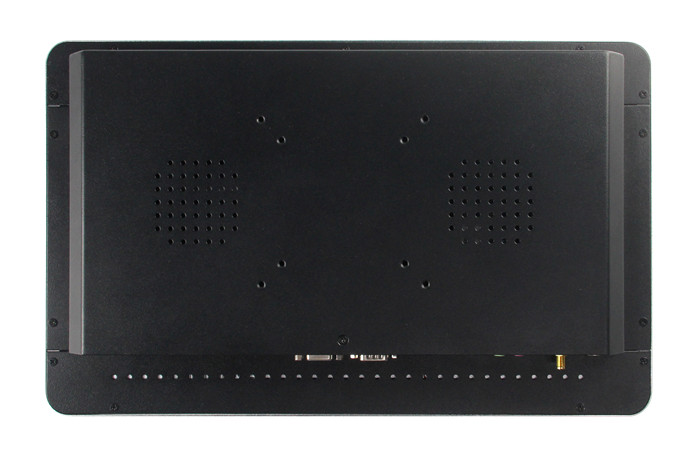

Product display:
