Android 7.0 20W 10.4" 1000nits Touch Panel Fanless PC SCADA
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD10PPCT1HBLJ2/ITD10PPCT5HBLJ2/ITD10PPCG1HBLJ2 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1920x1080 | Brightness | 250 ,1000nits Optional |
|---|---|---|---|
| Processor | Android,X86 For Optional | Touch Panel | Capacitive/resistive |
| Mounting Method | VESA | OS | Android 7.0,Windows 7/8/10, Linux |
| Operating Temperature | -10~60℃ | Storage Temperature | -20~70℃ |
| High Light | 1000nits Touch Panel Fanless PC,SCADA Touch Panel Fanless PC,Android 7.0 Open Frame Panel Pc |
||
Product Description
10.4”Industrial High Brightness touch Panel PC
ITD 10.4” ITD10PPCT1HBLJ2 Low cost PPC series with rugged metal chassis, provides OEMs with vast selection of technologies and solutions simplifying PLC, HMI and SCADA applications. These PCs feature Intel® Celeron™ Quad Core Processor J1900 2.0 GHz, in industrial-grade LCD flat panels with resistive touch technology and NEMA 4 IP65 front bezel optional designed for HMI display and visualization solutions.
Specifications:
| System | CPU | Intel® Celeron J1900 2.0GHz Processor |
| BIOS | Award BIOS 4/8Mbit SPI Flash ROM | |
| Chipset | Intel® NM70 Express Chipset | |
| Memory | 1*SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB | |
| Graphic Chipset | CPU integrated graphics HD and support 1080p | |
| Storage | 32GB SSD or 320GB HDD | |
| LAN | 1 x 10/100/1000Mbps Ethernet | |
| Input/Output | Serial Ports | 1 x COM |
| USB Ports | 4 X USB | |
| VGA Port | 1 x VGA | |
| HDMI Port | 1x HDMI Port | |
| Audio Card |
with Realtek ALC662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN |
|
| Panel | Cell Type/Glass Surface | TFT |
| Aspect Ratio/Size | 10.4” 4:3 | |
| Active Area/Pixel Pitch | 211.2(W) x 158.4(H)/0.264 | |
| Native Resolution/Colors | 800 x 600 /16.7M | |
| Brightness/Contrast | 1000nits/500:1 | |
| Viewing Angle(Typical) | 70/70/60/60 | |
| Light Source | LED | |
| Convenient Features | Backlight adjustment, Plug & Play, OSD Multi-Languages | |
| Power | Input Voltage | AC 100V~240V, 50/60Hz |
| Operation/Power Saving | 20W(Max) | |
| Output Voltage | +12V 4A | |
| Environment Considerations | Operating Temperature | -10~60 deg.C |
| Storage Temperature | -30~80 deg.C | |
| Relative Humidity | 5%-95% | |
| OS Support | Windows 7/ Windows XP Embedded/ Windows XP Embedded/ Linux/ Win CE | |
| Touch Panel/Interface | Optional | |
| Order Information | 10.4” Industrial high brightness panel PC with resistive touch/ITD10PPCT1HBLJ2 | |
| 10.4” Industrial high brightness panel PC with IR touch/ITD10PPCT2HBLJ2 | ||
| 10.4” Industrial high brightness panel PC with PCAP touch/ITD10PPCT5HBLJ2 | ||
| 10.4” Industrial high brightness panel PC with tempered glass/ITD10PPCG1HBLJ2 | ||
| 10.4” Industrial high brightness panel PC without touch/ITD10PPCN1HBLJ2 | ||

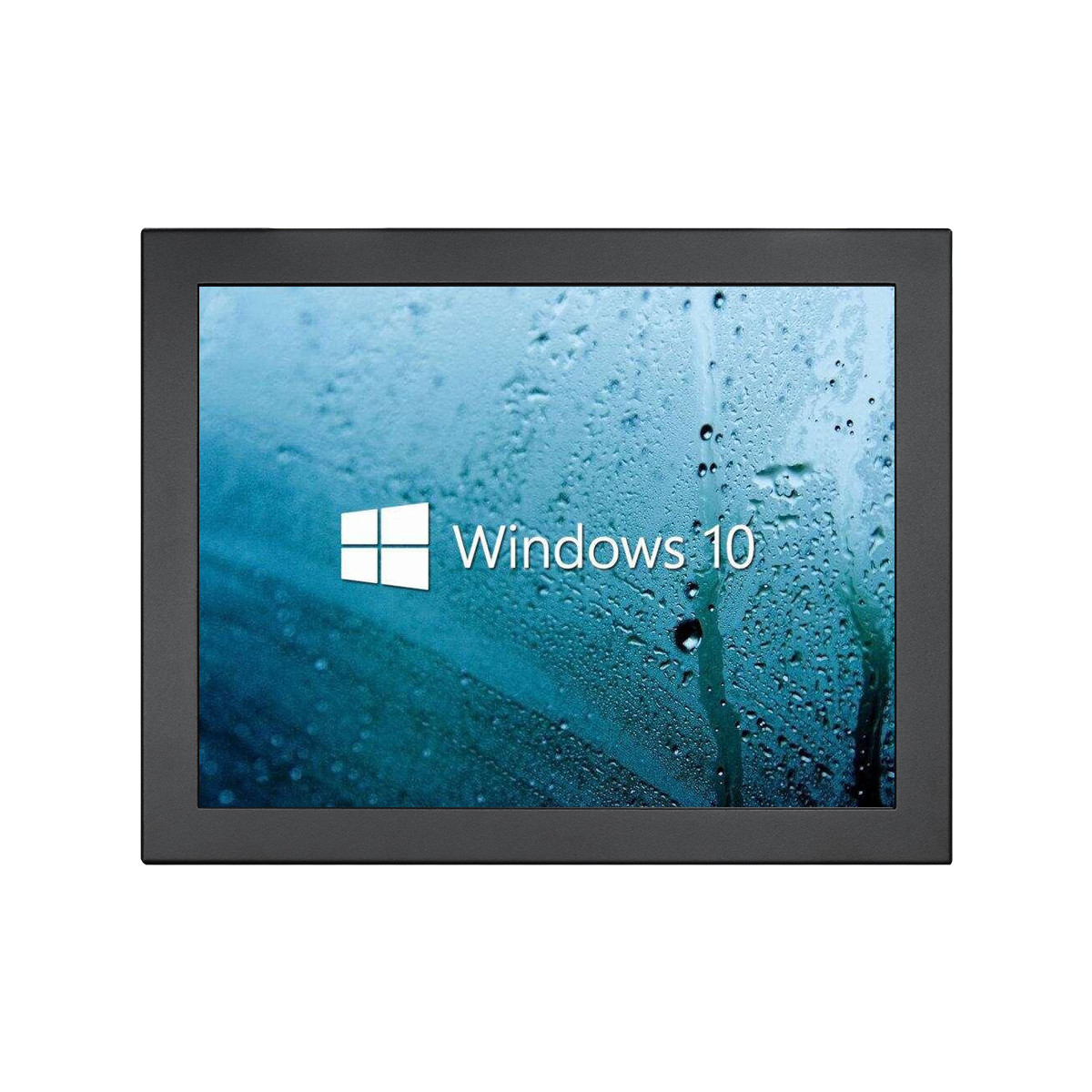

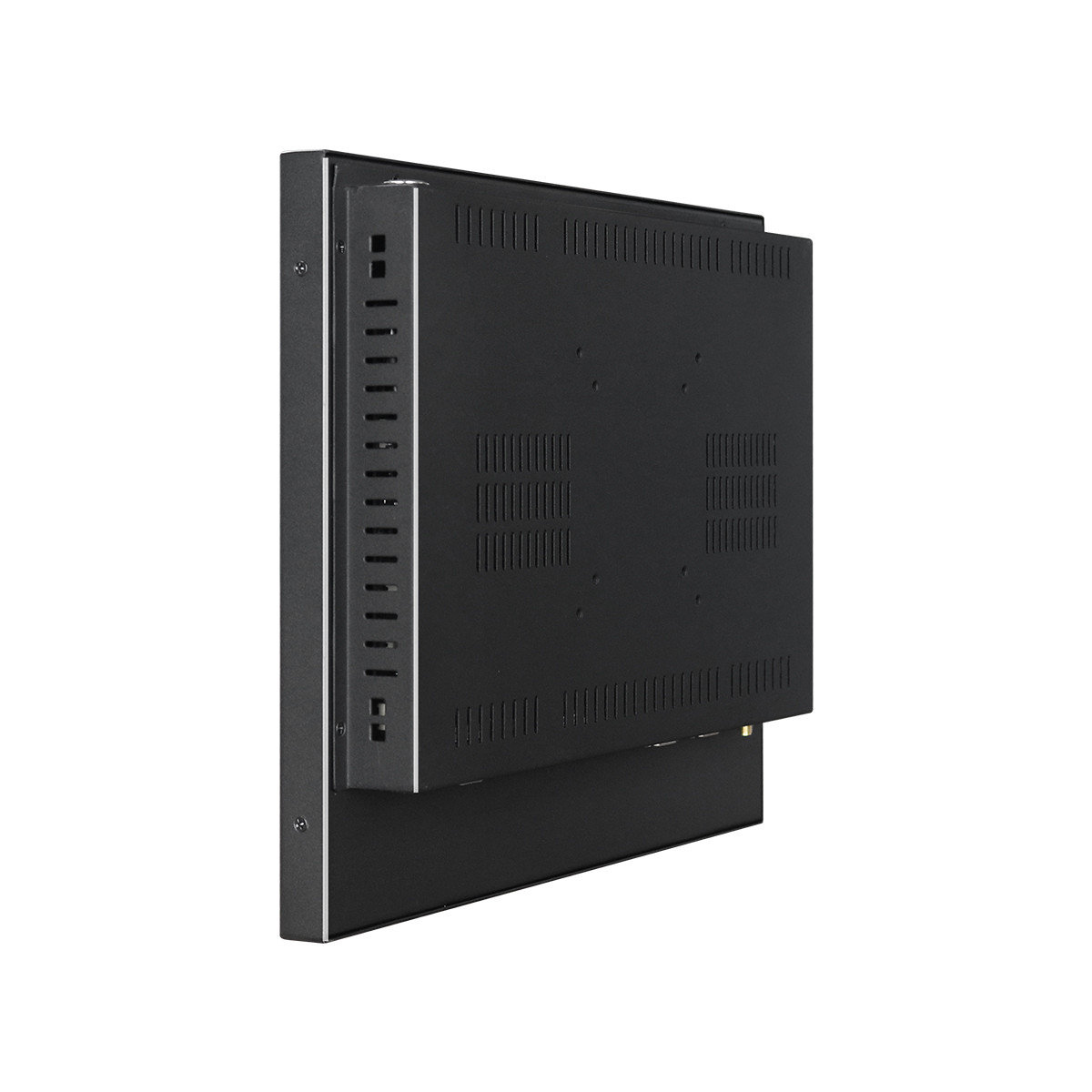

Product Image
