DC 9-36V Hmi Embedded Touch Panel PC 1024x768 With GPIO

  • DC 9-36V Hmi Embedded Touch Panel PC 1024x768 With GPIO
  • DC 9-36V Hmi Embedded Touch Panel PC 1024x768 With GPIO
  • DC 9-36V Hmi Embedded Touch Panel PC 1024x768 With GPIO
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD10PPCTxB-xxxx
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Native Resolution 800 X 600 Or 1024x768 Brightness 300 ,1000 Nits Optional
Processor Intel J1900, Intel I3/i5/i7 Touch Panel Capacitive/resistive
Mounting Method Panel Mounted,VESA OS Windows 7/8/10, Linux
Operating Temperature -20~60℃ Humidity 10~90% Non Condensing
Material Aluminum Housing With Heat Sink Warranty 2 Years
High Light

Hmi Embedded Touch Panel PC

,

GPIO Embedded Touch Panel PC

,

1024x768 Panel Pc Touch Screen
Leave a Message
Product Description

industrial hmi touch panel PC embedded with GPIO DC 9-36V input shock vibration proof



Features

  • Onboard Intel® Celeron® J1900/CoreTM i5-4200U/i7-4500U CPU
  • Onboard DDR3 4GB Memory / Optional SODIMM SKU
  • LCD+HDMI Output, Support Dual view/Simultaneous display
  • Fanless Operation
  • IP65 Front Bezel
  • Wide DC Support 9 ~ 36V
  • Anti-Shock&Vibration
  • Rich I/O with GPIO port

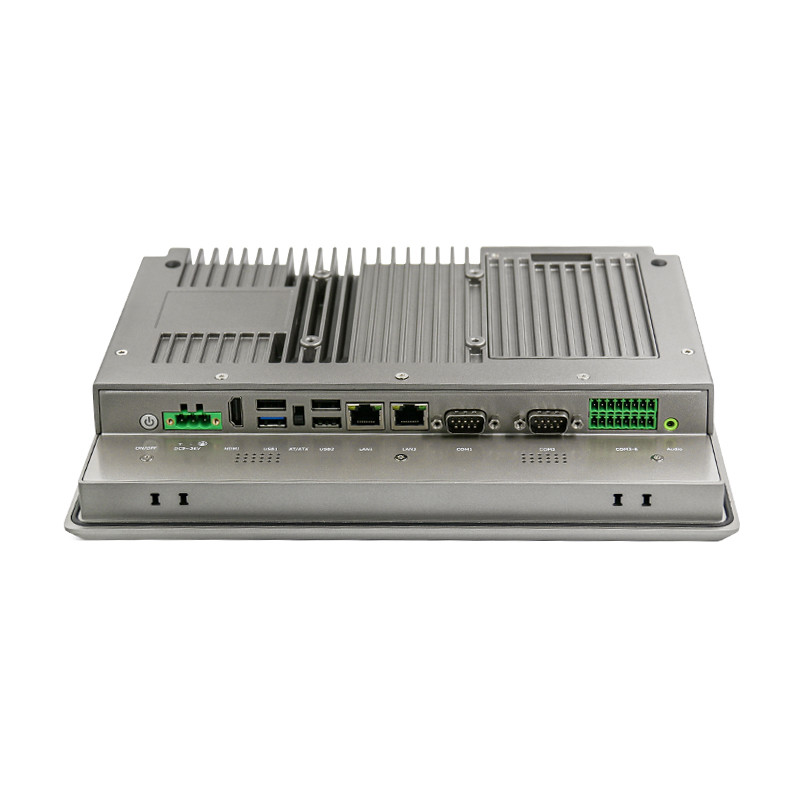

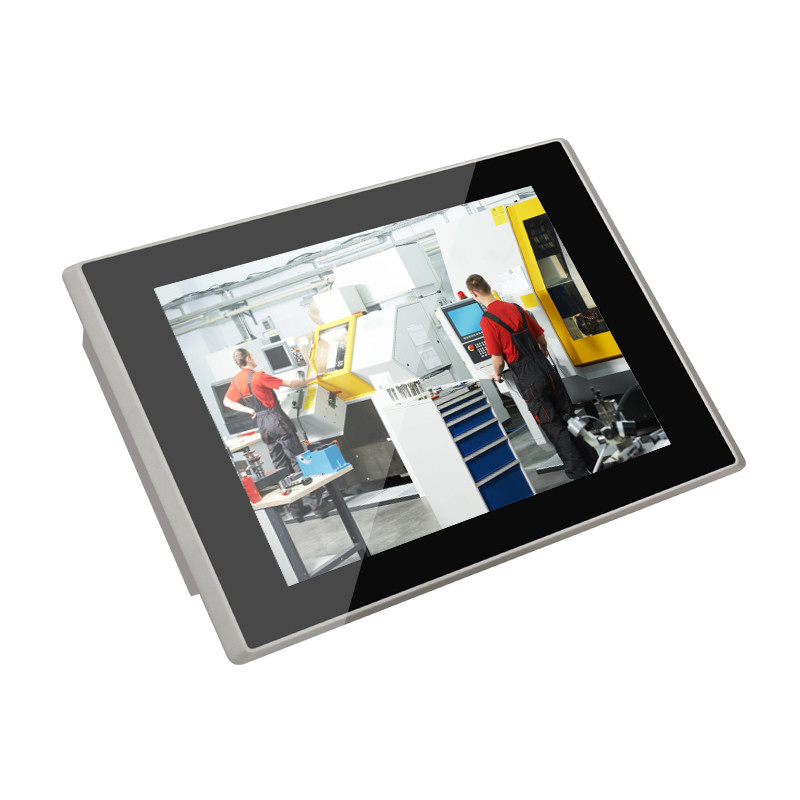

DC 9-36V Hmi Embedded Touch Panel PC 1024x768 With GPIO 0DC 9-36V Hmi Embedded Touch Panel PC 1024x768 With GPIO 1DC 9-36V Hmi Embedded Touch Panel PC 1024x768 With GPIO 2



OPTIONALS

• DC 24V, DC9-36V, AC100-240V • Optical bonding
• Resistive touch screen, tempered glass • WIFI, 3G, 4G
• Web camera, speakers, RFID, NFC, Fingerprint, QR reader, Thermal printer, GPS etc.

DISPLAY

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 10.4”/4:3
Active Area/ Pixel Pitch 211.2(W) x 158.4(H)mm/0.264 × 0.264mm
Native Resolution/ Colors 800 x 600 (1024 x 768 optional)/ 262K/16.2M
Brightness/ Contrast 1000cd/㎡ (1500cd/㎡ optional)/ 700:1
Response Time/ Viewing Angle(Typical) 30ms/70/70/60/70
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) Intel® Celeron J1900 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage

8GB: 16GB/32GB/64GB Optional



 1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
I/O 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

Line-Out /MIC IN

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

Line-Out /MIC IN
LAN 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet
OS Android 6.0 (Android 7.0 optional) Windows 7/8/10, Linux Windows 7/8/10, Linux

GENERAL

Power Input Voltage DC 12V 2.0
Operation/Power Saving 15~37W
Environment Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity

10%~90%
