Open Frame AIO HMI 1026x600 Touch Panel PC 500nits
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD19PPCN1FJ1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel J1900 | BIOS | AMI |
|---|---|---|---|
| Memory | Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB | Graphic Chipset | Intel HD Graphics (By CPU) |
| Storage | 1XSATA, 1X MSATA, Default To 64GB SSD | Serial Ports | 2 X COM |
| USB Ports | 2XUSB | ||
| High Light | AIO Touch Panel PC,1026x600 Touch Panel PC,500nits Open Frame Panel PC |
||
Product Description

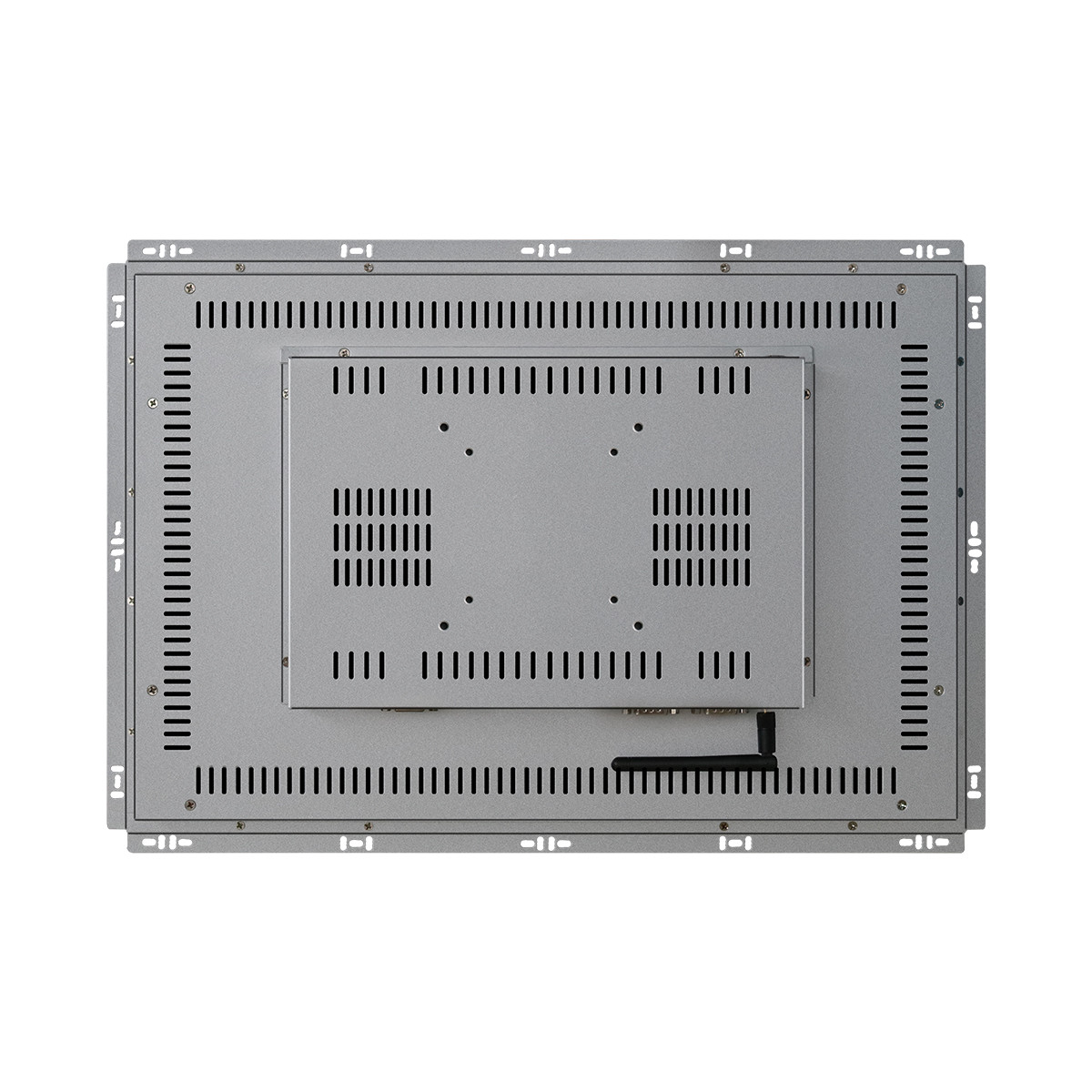

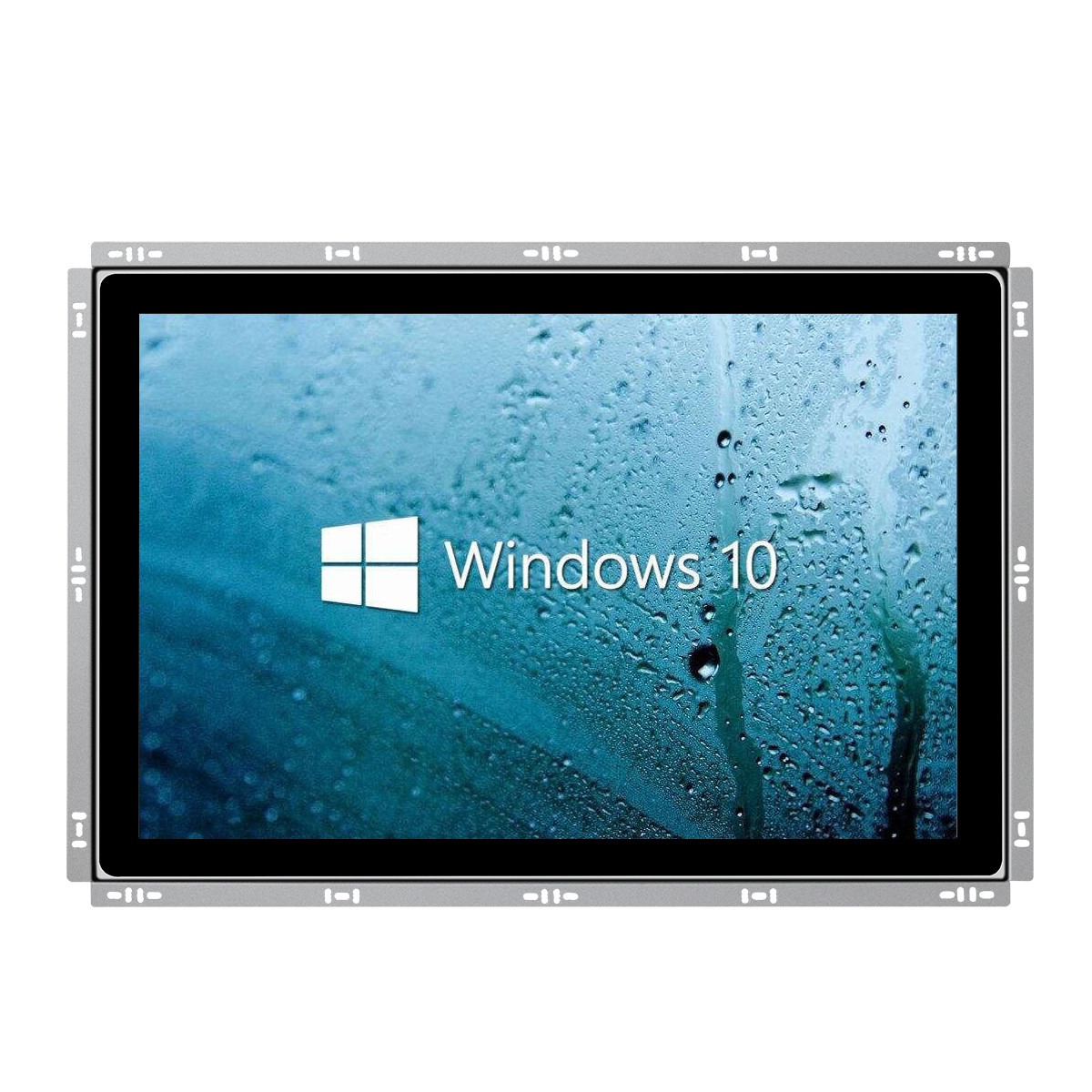

Industrial HMI touch panel PC open frame AIO
ITD HMI comfort open frame panel PC is fully-integrated‚ combines high-performance Intel® Celeron™ Quad Core Processor J1900 2.0 GHz, and optional touchscreen integrated in industrial-grade LCD flat panels, with sleek and open frame chassis industrial design. This open frame panel PC series with bezel-less display provides design flexibility for customers without any limitation, which can be easily installed in any enclosures.
SPECIFICATION
| Model | ITD07PPCN1FJ1 | ITD08PPCN1FJ1 | ITD09PPCN1FJ1 | ITD10PPCN1FJ1 | ITD12PPCN1FJ1 | |
| Size | 7” | 8” | 9.7” | 10.4” | 12.1” | |
| Active Area | 154.214(H) x 85.92(V) | 162.048(W) × 121.536(H) | 304.128(H)x 228.096(V) | 211.2(H) x 158.4(V) | 246(H) x 184.5(V) | |
| Contrast | 800:1 | 700:1 | 700:1 | 800:1 | 800:1 | |
| Resolution | 1026x600 | 1026 x 768 | 1024 x 768 | 800 x 600(1024 x 768 optional) | 800 x 600(1024 x 768 optional) | |
| Brightness | 500nits | 300nits | 250nits | 300nits | 300nits | |
| Viewing Angles | 75/75/70/75 | 80/80/80/80 | 80/80/80/80 | 70/70/60/70 | 80/80/65/75 | |
| Backlight | LED | LED | LED | LED | LED | |
| Model | ITD101PPCN1FJ1 | ITD13PPCN1FJ1 | ITD15PPCN1FJ1 | ITD156PPCN1FJ1 | ITD17PPCN1FJ1 | |
| Size | 10.1” | 13.3” | 15” | 15.6” | 17” | |
| Active Area | 216.81(H) x 135.5(V) | 293.42(W) × 164.97(H) | 304.128(H)x 228.096(V) | 246.0(H) x 184.5(V) | 337.920(H) x 270.336(V) | |
| Contrast | 800:1 | 800:1 | 700:1 | 700:1 | 1000:1 | |
| Resolution | 1280 x 800 | 1920 x 1080 | 1024 x 768 | 1920 x 1080 | 1280 x 1024 | |
| Brightness | 400nits | 300nits | 250nits | 300nits | 250nits | |
| Viewing Angles | 85/85/85/85 | 85/85/85/85 | 80/80/60/80 | 89/89/89/89 | 85/85/80/80 | |
| Backlight | LED | LED | LED | LED | LED | |
| Model | ITD173PPCN1FJ1 | ITD18PPCN1FJ1 | ITD19PPCN1FJ1 | ITD21PPCN1FJ1 | ITD24PPCN1FJ1 | |
| Size | 17.3” | 18.5” | 19” | 21.5” | 24” | |
| Active Area | 381.888(H) x 214.812(V) | 409.8(H) x 230.4(V) | 376.32(H) x 301.06(V) | 476.64(H) x 248.25(V) | 531.36(H) x 298.89(V) | |
| Contrast | 400:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | |
| Resolution | 1920 x 1080 | 1366 x 768 | 1280 x 1024 | 1920 x 1080 | 1920 x 1080 | |
| Brightness | 300nits | 250nits | 250nits | 250nits | 300nits | |
| Viewing Angles | 80/80/80/80 | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 | 89/89/89/89 | |
| Backlight | LED | LED | LED | LED | LED | |
| Model | ITD27PPCN1FJ1 | ITD32PPCN1FJ1 | ITD42PPCN1FJ1 | ITD55PPCN1FJ1 | ITD65PPCN1FJ1 | |
| Size | 27” | 32” | 42”/43” | 55” | 65” | |
| Active Area | 597.6(H)x 336.15(V) | 698.4(H) x 392.85(V) | 930.24(H) x 523.26(V) | 1213.6(H) x 684.4(V) | 1428.48(W) × 803.52(H) | |
| Contrast | 1000:1 | 1000:1 | 1200:1 | 3000:1 | 4000:1 | |
| Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | |
| Brightness | 300nits | 350nits | 400nits | 400nits | 400nits | |
| Viewing Angles | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | |
| Backlight | LED | LED | LED | LED | LED | |
| SPECIFICATION | ||||||
| System | CPU | Intel® Celeron J1900 2.0GHz Processor | ||||
| BIOS | AMI | |||||
| Chipset | Intel Bay Trail SoC | |||||
| Memory | Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB | |||||
| Graphic Chipset | Intel HD Graphics (By CPU) | |||||
| Storage | 1 x SATA, 1 x mSATA, Default to 64GB SSD | |||||
| LAN | 1 x 10/100/1000Mbps Ethernet (WIFI Optional) | |||||
| Input/Output | Serial Ports | 2 x COM | ||||
| USB Ports | 2 X USB | |||||
| VGA Port | 1 x VGA | |||||
| HDMI Port | 1x HDMI | |||||
| Audio Card | Line-Out/MIC IN | |||||
| Power | Input Voltage | External Power Supply DC 12V for 7”~24”; Internal Power Supply AC100~240V for 27”~65” | ||||
| Environment Considerations | Operating Temperature | -10~60℃ for 7”~21.5”; 0-50℃ for 24”~65” | ||||
| Storage Temperature | -20~70℃ | |||||
| Order Information | Open Frame Panel PC with Resistive Touch/ITD**PPCT1FJ1(available for sizes below 24”) | |||||
| Open Frame Panel PC with IR Touch/ITD**PPCT2FJ1 | ||||||
| Open Frame Panel PC with PCAP Touch/ITD**PPCT5FJ1 | ||||||
