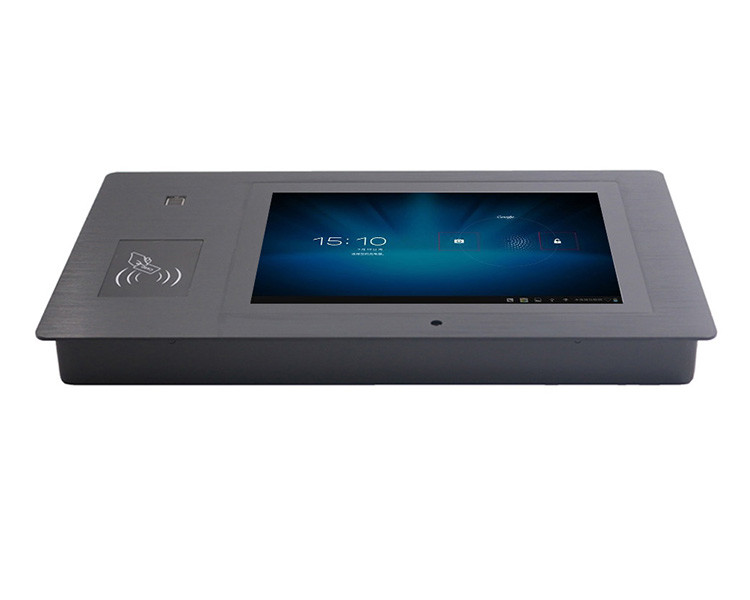

IP52 Fanless Industrial Touch Panel Pc With RFID NFC Reader
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD12PPCT5Xxx-RFID-FR |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1024x768 | Brightness | 350 |
|---|---|---|---|
| Processor | ARM, Ntel J1900, Intel I3/i5/i7 | Touch Panel | Capacitive |
| Mounting Method | VESA | OS | Android, Windows, Linux |
| Operating Temperature | -10~60℃ | Storage Temperature | -20~70℃ |
| Material | Aluminum Frame, Steel Chassis | Warranty | 2 Years |
| High Light | Fanless Industrial Touch Panel Pc,IP52 Industrial Touch Panel Pc,RFID NFC Reader Fanless Panel Pc |
||
Product Description
fanless industrial touch panel pc with RFID NFC reader fingerprint recognition
The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance ARM based Octa-Core RK3399 1.8GHz with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design, embedded RFID reader and finger printer. The ITD ARM-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Android 7.1/8/9 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.
FEATURES
▪ Easy-to-clean, true flat front surface without bezel
▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
▪ Web camera, RFID and thermal printer integrated
▪ Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Provides improved power efficiency and reduced consumption
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
▪ CE, FCC, RoHS Compliance
OPTIONALS
•DC 24V, DC9-36V, AC100-240V
High brightness, sunlight readable
•Resistive touch screen, tempered glass
•Speakers, NFC, Fingerprint, thermal printer, etc.
PARAMETERS
| Panel | Cell Type/Glass Surface | TFT |
| Size | 12.1” | |
| Aspect Ratio | 4:3 | |
| Active Area | 246.0(W) x 184.5(H)mm | |
| Pixel Pitch | 0.3075 × 0.3075mm | |
| Native Resolution | 800 x 600 (1024 x 768 optional) | |
| Colors | 262K/16.2M | |
| Brightness | 300cd/㎡ | |
| Contrast | 700:1 | |
| Response Time | 30ms | |
| Viewing Angle(Typical) | 80/80/60/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SPECIFICATION
| System | CPU | Intel® Celeron J1900 2.0GHz Processor |
| BIOS | AMI | |
| Chipset | Intel Bay Trail SoC | |
| Memory |
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
|
| Graphic Chipset | Intel HD Graphics (By CPU) | |
| Storage | 1 x SATA, 1 x mSATA, Default to 64GB SSD | |
| LAN | 1 x 10/100/1000Mbps Ethernet | |
| Input / Output | Serial Ports | 2 x COM |
| USB Ports | 4 X USB | |
| VGA Port | 1 x VGA Output | |
| HDMI Port | 1x HDMI Output | |
| Audio Card |
with Realtek ALC662 Line-Out/MIC IN |
|
| Power | Power Input | DC 12V |
| Operation/Power Saving | 35W | |
| Environment Considerations | Operating Temperature | -10~60℃ (-20~70℃ Optional) |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90% | |
| Order Information | 12.1” Panel PC with PCAP Touch+RFID&Finger Printer /ITD12PPCT5XJ1-RFID-FP | |
| 12.1” Panel PC with Resistive Touch+RFID&Finger Printer /ITD12PPCT1XJ1-RFID-FP | ||
| 12.1” Panel PC with Tempered Glass+RFID&Finger Printer /ITD12PPCG1XJ1-RFID-FP | ||
