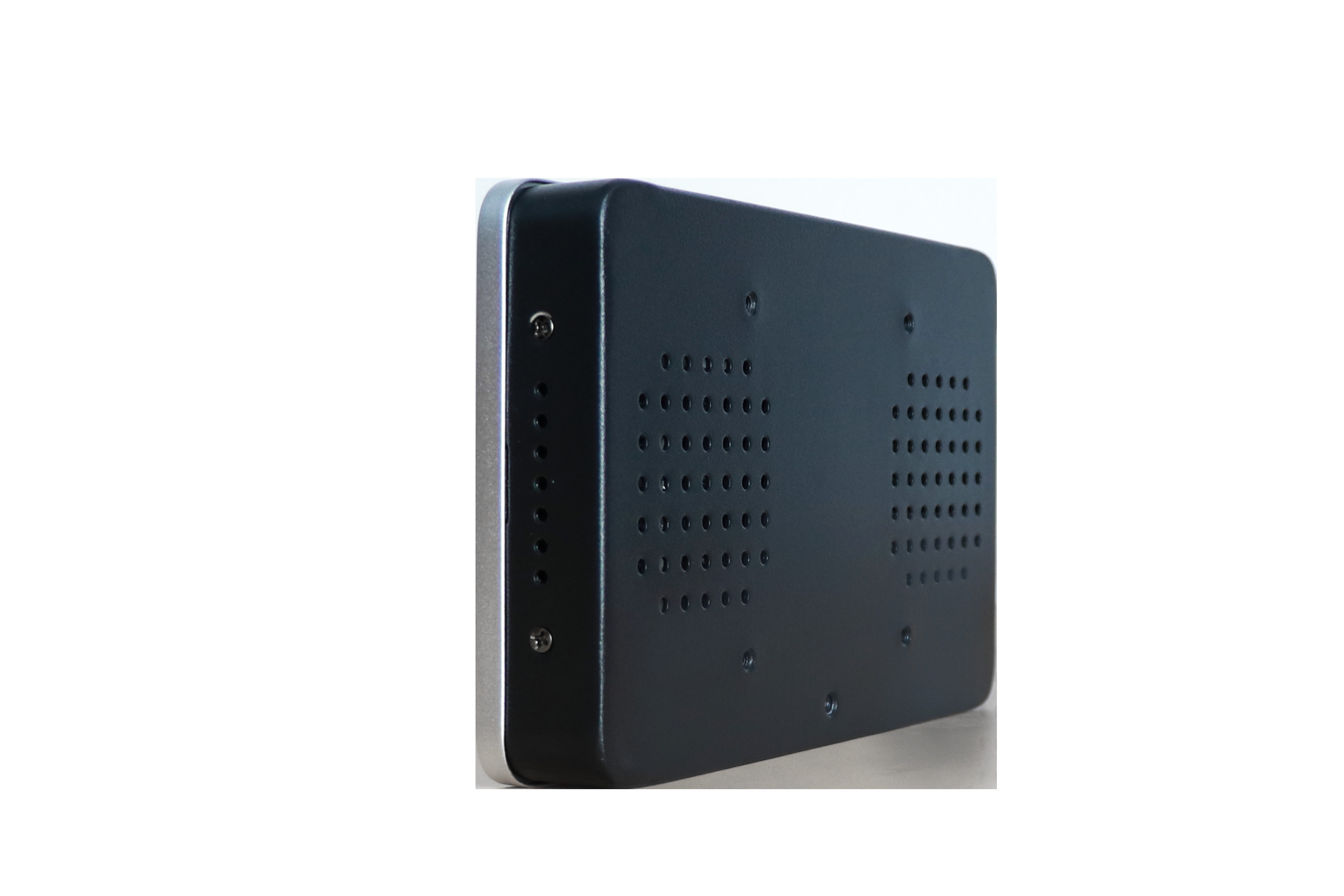

Bezel Free 400nits 1024x600 Android Touch PC Android 7.1

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD07PPCT5KE1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Native Resolution 1024 X 600 Brightness 400nits
I/O HDMI Input, USB Ports, SD Card Slot, RJ45,COM Optional Touch Panel Capacitive 10 Points
Mounting Method VESA Power Input DC 12V
Operating Temperature -10~60℃ Storage Temperature -20~70℃
Material Steel Housing, Aluminum Frame Warranty 2 Years
MTBF 50000hours
High Light

400nits Android Touch PC

,

1024x600 Android Touch PC

,

Android 7.1 Multi Touch Panel Pc

Leave a Message
Product Description

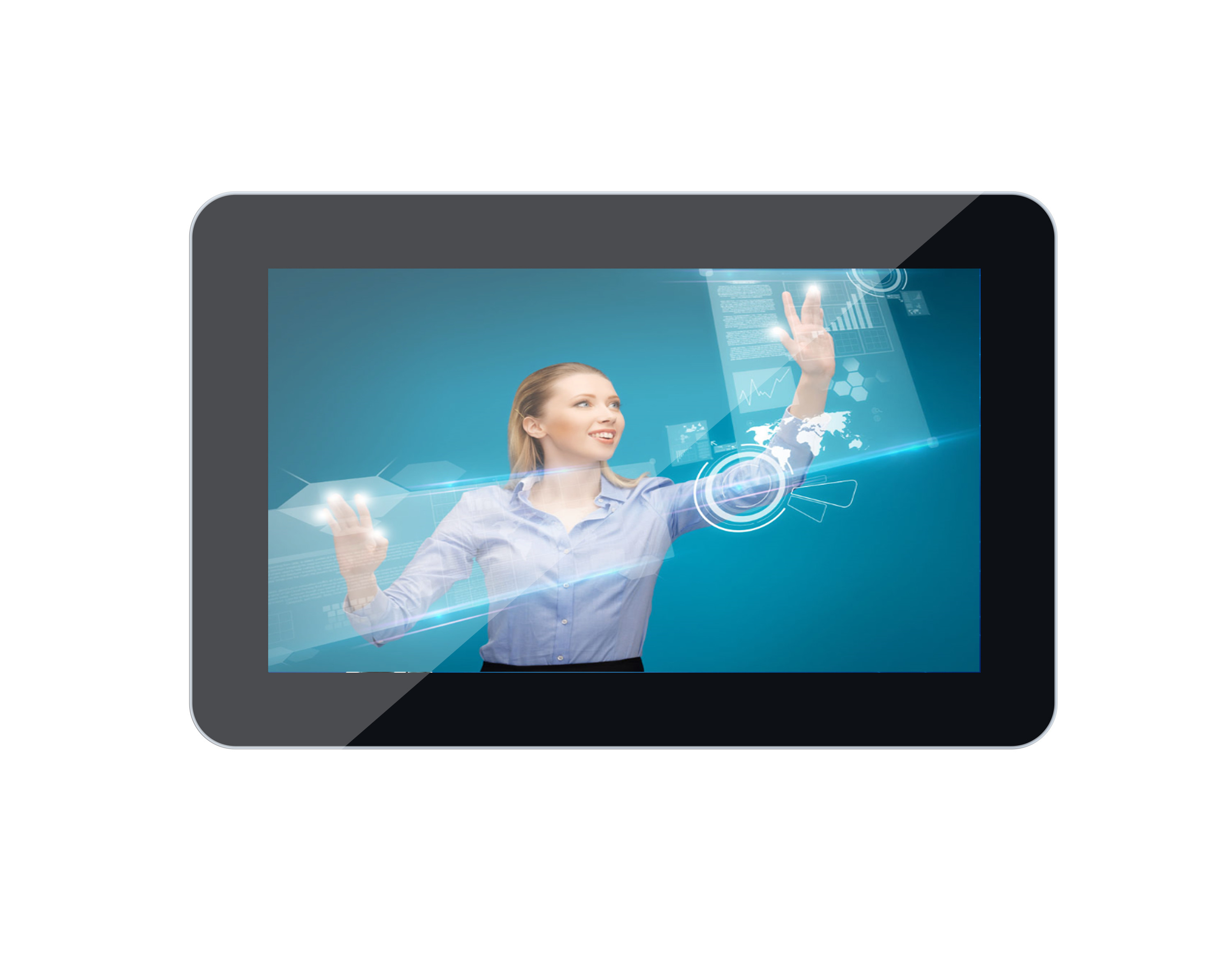

7 inch bezel free Android touch display panel PC for digital signage







FEATURES

• Centralized server controls content distribution;

• Combined hardware and software solution for fast, reliable delivery of digital signage content and continuous operation;

• Easy WIFI network system installation without the need for extra IT, firewall or security configurations;

• Simple content scheduling and updating for each display;

• Restart and update digital signage players remotely;

• Create and update separate schedules for each display, al owing for targeted ads at each terminal or different locations;

• Deliver rich media including: Multiple video and audio formats, RSS feeds and image slide shows;

• Transfer schedules and contents to one or more displays;

• Control, monitor and design screen layouts remotely by the admin software;

• Support Multi-zone terminal display and flexible screen layout;

• Local review of multi-zone display layout once the content is stored in the server PC;

• Manage daily power on/off time for any display or group of displays;

• Deliver high definition image content;

• Content plays automatically upon set up of schedule;

• Display live news, weather, traffic reports, emergency announcements and many other notices;

• Anytime insert emergent video file;

• Remotely report system utilization and memory usage;

• System automatically notifies administrator of any malfunction;

• Custom-features development service available from our professional software team;

• Daily, monthly display content recording;

• Possible to integrate with the any existing management system.

PARAMETERS

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 7”/16:9
Active Area/ Pixel Pitch 155.5(W) x 87.5(H)mm/0.150 × 0.150mm
Native Resolution/ Colors 1024 x 600/16.7M
Brightness/ Contrast 300cd/㎡/800:1
Response Time 10/15ms
Viewing Angle (Typical) 85/85/85/85
Light Source LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System

CPU: ARM Quad Core RK3288, Main CPU frequency:1.8GHz

GPU: Mali-T764 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 7.1 (Android 8/9 optional); Bluetooth&WIFI integrated

Video Decoder: 4K VP8 and 4K 10bits H265/H264

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG

Input / Output

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional);

1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

PoE optional

Operating Temperature -10~60℃(-20~70℃ Optional)
Storage Temperature -20~70℃
Anti-Vibration 5Hz-500Hz / 1Grms/3 Axis (optional)
Anti-Shock 15G, 15ms Duration (optional)
Relative Humidity 10%~90%
Order Information 7” Zero-Bezel Android Panel PC with Tempered Glass/ITD07PPCG1KE3
