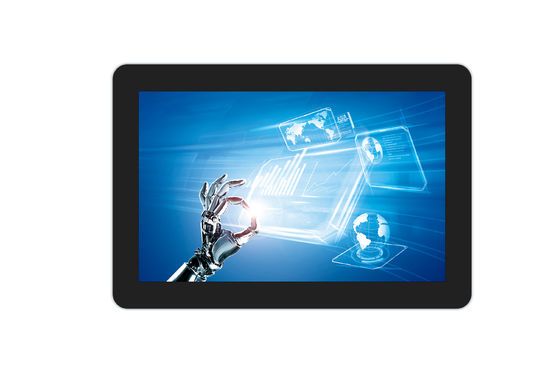

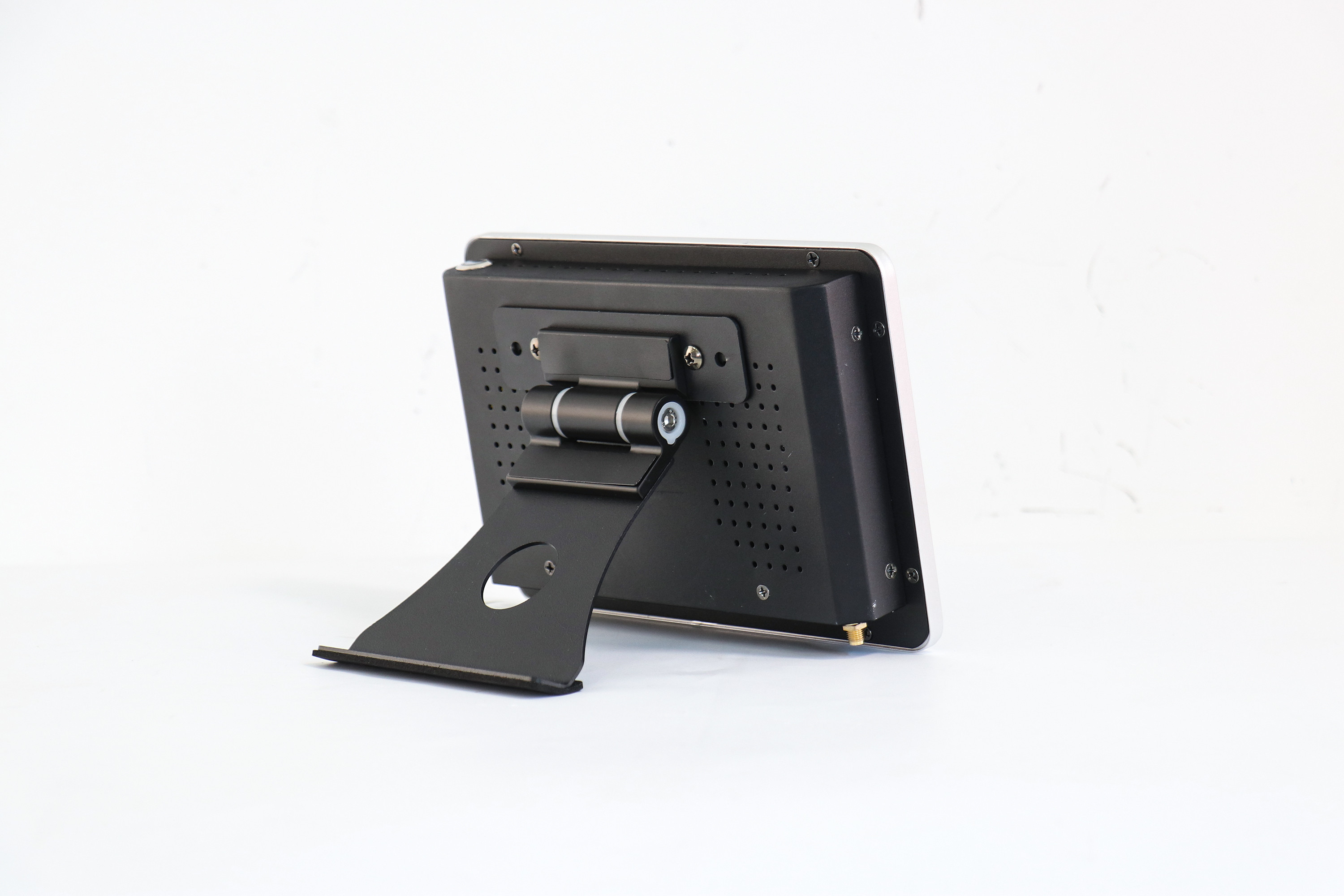

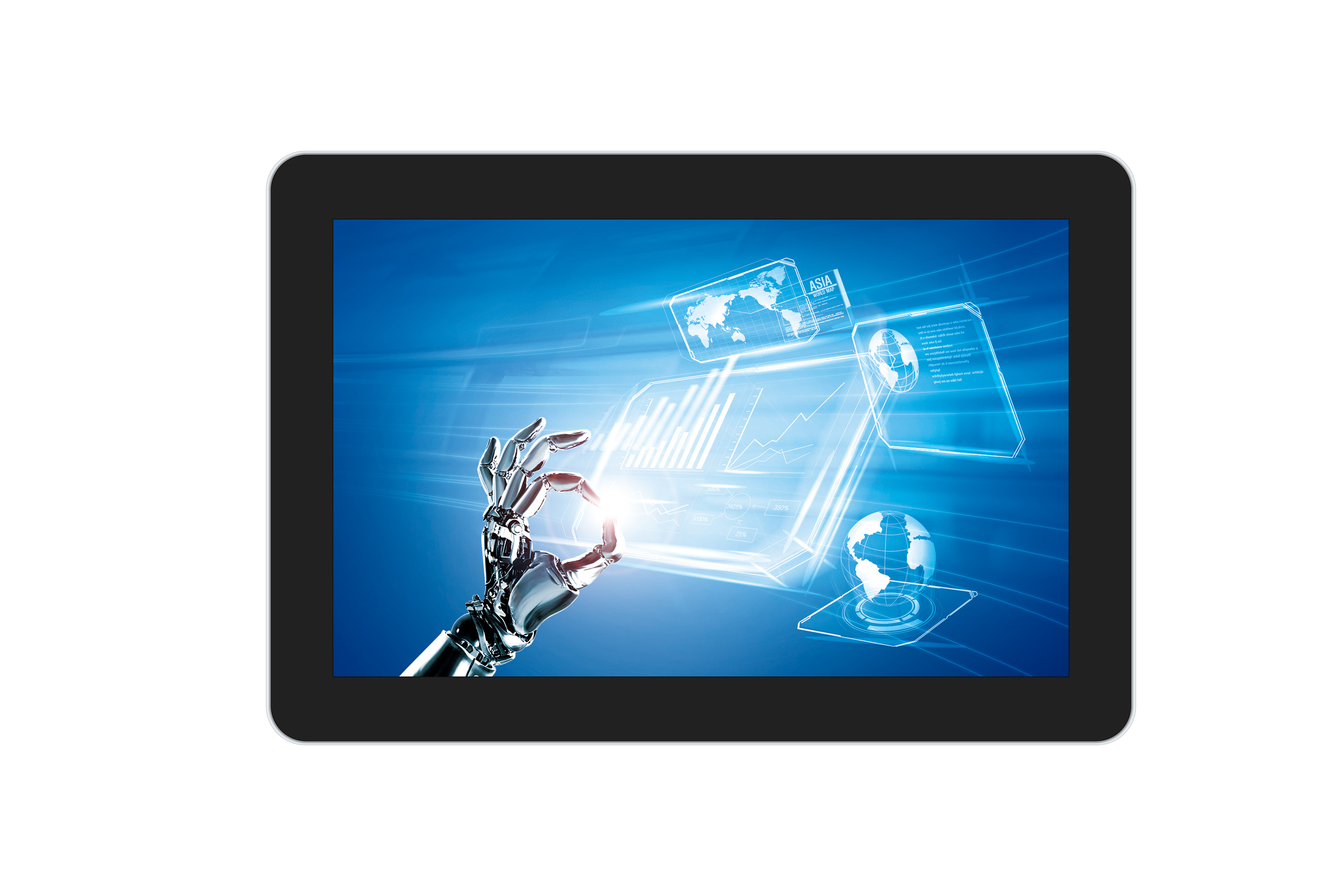

2G RAM 16G 8inch Flash POE Android Panel PC RK3288 RK3399

  • 2G RAM 16G 8inch Flash POE Android Panel PC RK3288 RK3399
  • 2G RAM 16G 8inch Flash POE Android Panel PC RK3288 RK3399
  • 2G RAM 16G 8inch Flash POE Android Panel PC RK3288 RK3399
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD08PPCT5KE1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Native Resolution 1024 X 768 Brightness 350nits
I/O HDMI Input, USB Ports, SD Card Slot, RJ45,COM Optional Touch Panel Capacitive 10 Points
Mounting Method VESA Power Input DC 12V
Operating Temperature -10~60℃ Storage Temperature -20~70℃
Material Steel Housing, Aluminum Frame Warranty 2 Years
MTBF 50000hours IP Rate IP65 Front
High Light

Flash POE Android Panel PC

,

8inch Android Panel PC

,

RK3399 Android Touch Pc
Leave a Message
Product Description

android touch pc RK3288 RK3288 2G RAM 16G 8inch flash POE optional



ITD New Series multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines Android media player, and Projected Capacitive Touch (PCT or PCAP)Technology in TFT LCD flat panels, with sleek and flat front surface commercial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various interactive digital signage applications.



Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 8”/4:3
Active Area/ Pixel Pitch 163(W) x 122.5(H)mm/0.15825 × 0.15825mm
Native Resolution/ Colors 1024 x 768/16.7M
Brightness/ Contrast 300cd/㎡/800:1
Response Time 25ms
Viewing Angle(Typical) 85/85/85/85
Light Source LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System

CPU: ARM Octa-Core RK3368 Cortex-A53,Main CPU(RK3288, RK3399 optional frequency:1.5GHz;

GPU: PowerVR G6110 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 5.1/6.0

Bluetooth: Optional

Video Decoder: 4K VP9/H265/H264 video decoders, up to 60fps

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG
Input / Output

1 × HDMI; 2 × USB Max. 6× USB

1 × TF Card Support 8~128GB;

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

1 × DC 12V 2.0; 3G/4G Optional

Com Port optional
Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%
Order Information 8”Zero-Bezel Android Panel PC with Tempered Glass/ITD08PPCG1KE1
