RK3288 15.6in PCAP Touch Android Panel Zero Bezel AIl In One PC

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD156PPCT5KE1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel TFT Size 15.6inch
Active Area 344.16mm(W)×193.59mm(H) Viewing Angle 89/89/89/89
Brightness 300 Cd/m2 CPU ARM Quad Core RK3288 Cortex-A17/RK3369
SD RAM 2G; 4G Optional
High Light

15.6in PCAP Touch Android Panel

,

RK3288 PCAP Touch Android Panel

,

Zero Bezel AIl In One PC

Leave a Message
Product Description

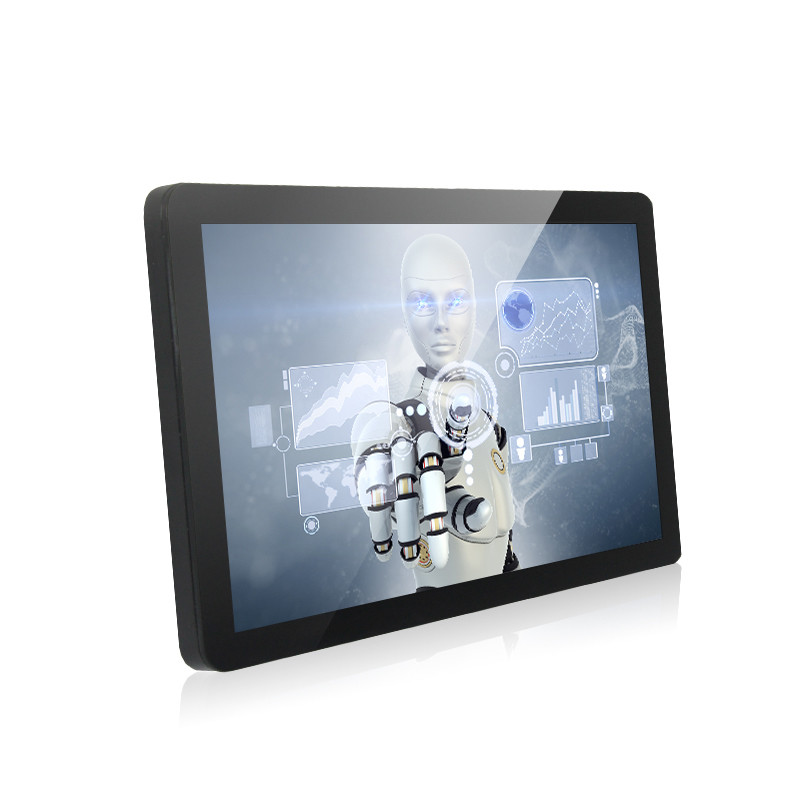

15.6”Zero-Bezel pure flat PCAP Touch Android Panel PC AIll in one PC





  • FEATURES

    • Centralized server controls content distribution;

    • Combined hardware and software solution for fast, reliable delivery of digital signage content and continuous operation;

    • Easy WIFI network system installation without the need for extra IT, firewall or security configurations;

    • Simple content scheduling and updating for each display;

    • Restart and update digital signage players remotely;

    • Create and update separate schedules for each display, al owing for targeted ads at each terminal or different locations;

    • Deliver rich media including: Multiple video and audio formats, RSS feeds and image slide shows;

    • Transfer schedules and contents to one or more displays



Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 15.6”/16:9
Active Area/ Pixel Pitch 344.16mm(W)×193.59mm(H) /0.17925(H)×0.17925(V)mm
Native Resolution/ Colors 1920 x 1080/262K
Brightness/ Contrast 300cd/㎡/700:1
Response Time 25ms
Viewing Angle(Typical) 89/89/89/89
Light Source LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System

CPU: ARM Quad Core RK3288 Cortex-A17, Main CPU frequency:1.8GHz

GPU: Mali-T764 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 6.0/7.1; Bluetooth: Optional

Video Decoder: 4K VP8 and 4K 10bits H265/H264

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG

Input / Output

1 × HDMI; 2 × USB Max. 6× USB

1 × TF Card Support 8~128GB;

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

1 × DC 12V 2.0; 3G/4G Optional

Com Port optional

Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%
Order Information 15.6”Zero-Bezel Android Panel PC with Tempered Glass/ITD156PPCG1KE2
