Waterproof PCAP 1024x600 Android Touch Tablet 7 Inch RK3399
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD07PPCT5IPAxx |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 15-20 working days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | RK3288, RK3399 | Material | Stainless Steel Housing |
|---|---|---|---|
| Screen Diagonal | 7" | Physical Resolution | 1024X600 |
| View Angels | 75/75/75/75 | Backlife | LED Backlight With 50000 Hours’lifetime |
| RAM | 2G Max. 4G | IP Rate | Full IP65 IP66 |
| Touch Screen | Resistive Touch Screen Or PCAP Touch | Storage | 8G, Max. 32G |
| High Light | 1024x600 Android Touch Tablet,1024x600 Android Touch Tablet,RK3399 Android Panel PC |
||
Product Description

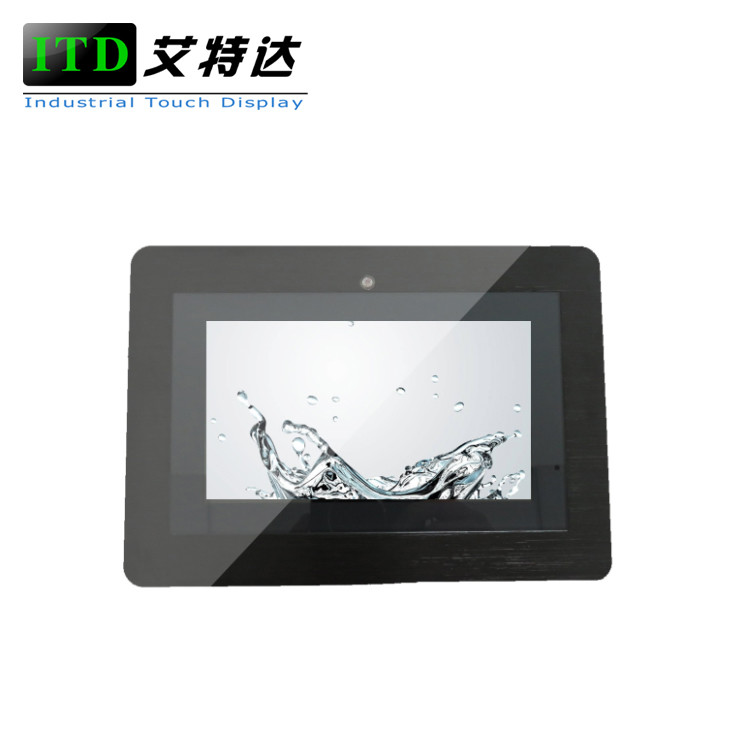

7 inch fully sealed NEMA 4 waterproof Android touch tablet panel PC
FEATURES
•Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents
•Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection
•Rugged aluminum alloy/stainless steel enclosure design with high EMC and IP65/IP66 NEMA4/4X protection
•Intel J1900, Intel i3/i5/i7 up to 19th gen.
•316 stainless steel, saltwater resistance
•RFID/NFC/QR/Finger reader optional
•CE, FCC, RoHS Compliance
Specifications
| Panel | Cell Type/Glass Surface | TFT LCD |
| Aspect Ratio/Size | 7” 16:9 | |
| Active Area | 154.214(H) x 85.92(V)mm | |
| Pixel Pitch | 0.1506(H) x 0.1432(V)mm | |
| Native Resolution | 1024 x 600 | |
| Contrast | 800:1 | |
| Colors | 262K/16.7M | |
| Contrast Ratio | 1000nits | |
| Response Time | 10/15ms | |
| Viewing Angle (Typical) | 75/75/70/75 | |
| Light Source | LED Backlight with 50000Hours’ Lifetime | |
| System | CPU | ARM Quad Core RK3288, Main CPU frequency:1.8GHz; |
| Memory | 2Gb max. 4G | |
| Flash | 8Gb max. 32G | |
| Storage | USB 2.0 Host | |
| OS Support | Android 4.4/5.1(Android 7.1 optional) | |
| I/O | Serial Ports | 1 x COM (Optional) |
| USB Ports | 1 x USB 2.0(Waterproof Connector and Cable) | |
| Power Port | 1 x 12V DC Jack (Waterproof Connector and Cable) | |
| HDMI Output | 1 x HDMI (Optional) | |
| LAN | 1 x 10/100Mbps Ethernet (Waterproof Connector and Cable) | |
| WIFI | Built-in, 802.11a/b/g/h (optional) | |
| Anti-Vibration | 5Hz-500Hz / 1Grms/3 Axis (Optional) | |
| Anti-Shock | 15G, 15ms duration (Optional) | |
| Mounting | 75 x 75 VESA Mount, Panel/Embedded Mount | |
| Operating Temperature | -10~60℃ (-20~70℃ Optional) | |
| Storage Temperature | -20~70℃ | |
| Order Information | 7” 1000nits Stainless Steel Full IP65/IP66 Android Panel PC with Tempered Glass: ITD07PPCG1HBIPSE2 | |
| 7” 1000nits Stainless Steel Full IP65/IP66 Android Panel PC with Resistive Touch: ITD07PPCT1HBIPSE2 | ||
| 7” 1000nits Stainless Steel Full IP65/IP66 Android Panel PC with PCAP Touch: ITD07PPCT5HBIPSE2 | ||
| 7” 1000nits Aluminum Alloy Full IP65/IP66 Android Panel PC with Tempered Glass: ITD07PPCG1HBIPAE2 | ||
| 7” 1000nits Aluminum Alloy Full IP65/IP66 Android Panel PC with Resistive Touch: ITD07PPCT1HBIPAE2 | ||
| 7” 1000nits Aluminum Alloy Full IP65/IP66 Android Panel PC with PCAP Touch: ITD07PPCT5HBIPAE2 | ||
| 7” 1000nits Steel Full IP65/IP66 Android Panel PC with Tempered Glass: ITD07PPCG1HBIPXE2 | ||
| 7” 1000nits Steel Full IP65/IP66 Android Panel PC with Resistive Touch: ITD07PPCT1HBIPXE2 | ||
| 7” 1000nits Steel Full IP65/IP66 Android Panel PC with PCAP Touch: ITD07PPCT5HBIPXE2 | ||
| 7” 1000nits Stainless Steel Full IP67 Android Panel PC with Tempered Glass: ITD07PPCG1HBIPSE7 | ||
| 7” 1000nits Stainless Steel Full IP67 Android Panel PC with Resistive Touch: ITD07PPCT1HBIPSE7 | ||
| 7” 1000nits Stainless Steel Full IP67 Android Panel PC with PCAP Touch: ITD07PPCT5HBIPSE7 | ||
| 7” 1000nits Aluminum Alloy Full IP67 Android Panel PC with Tempered Glass: ITD07PPCG1HBIPAE7 | ||
| 7” 1000nits Aluminum Alloy Full IP67 Android Panel PC with Resistive Touch: ITD07PPCT1IPAE7 | ||
| 7” 1000nits Aluminum Alloy Full IP67 Android Panel PC with PCAP Touch: ITD07PPCT5HBIPAE7 | ||
