10.4 Inch Rugged Full IP67 NEMA 4x Marine Panel PC 1024x768
1 unit
MOQ
10.4 Inch Rugged Full IP67 NEMA 4x Marine Panel PC 1024x768
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: ITD
Certification: CE/ROHS/FCC
Model Number: ITD10PPCT5IPAxx
High Light:

NEMA 4x Marine Panel PC

,

10.4 Inch Marine Panel PC

,

1024x768 Industrial Touch Screen Pc

Payment & Shipping Terms
Packaging Details: Foam,gift box,master carton,wooden case,pallet
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000 unit per month
Specifications
CPU: RK3288, RK3399, Intel J1900, E3845, I3/i5/i7 Optional
Material: Aluminum Alloy Housing
Screen Diagonal: 10.4"
Physical Resolution: 1024 X 768
View Angels: 80/80/80/80
Backlife: LED Backlight With 50000 Hours’lifetime
RAM: 2G Max. 4G
IP Rate: Full IP67
Touch Screen: Resistive Touch Screen Or PCAP Touch
Storage: 8G, Max. 32G
OS: Android 8.9,10, 11, Linux Optional
Brightness: 350nits, 1000nits, 1500nits Optional
Product Description

10.4 inch rugged full IP67 NEMA 4x marine panel PC Android Windows optional

FEATURES:

•Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents

•Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection

•Rugged aluminum alloy/stainless steel enclosure design with high EMC and IP65/IP66 NEMA4/4X protection

•Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports

•Flexible, reliable, and ruggedized for open platform HMI/SCADA

•Provides improved power efficiency and reduced consumption

•CE, FCC, RoHS Compliance


Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 10.4”/4:3
Active Area/ Pixel Pitch 211.2(W) x 158.4(H)mm/0.264 × 0.264mm
Native Resolution/ Colors 800 x 600 (1024 x 768 optional)/ 262K/16.2M
Brightness/ Contrast 300cd/㎡  1000/1500cd/㎡ optional/ 700:1
Response Time/ Viewing Angle(Typical) 30ms/70/70/60/70
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) Intel® Celeron J1900 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage 8GB: 16GB/32GB/64GB Optional 1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
Default Waterproof I/O

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

LAN 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet
OS Android 6.0 (Android 7.0 optional) Windows 7/8/10, Linux Windows 7/8/10, Linux

GENERAL

Power Input Voltage DC 12V 2.0
Operation/Power Saving 15-35W
Environment Considerations Operating Temperature -10~60℃(-20~70℃ optional)
Storage Temperature -20~70℃
Mounting 75 x 75 VESA Mount, Panel/Embedded Mount optional
Order Information 10.4” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD10PPCG1IP*E2
10.4” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD10PPCT1IP*E2
10.4” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD10PPCT5IP*E2
10.4” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD10PPCG1IP*J2
10.4” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD10PPCT1IP*J2
10.4” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD10PPCT5IP*J2
10.4” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD10PPCG1IP*I3
10.4” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD10PPCT1IP*I3
10.4” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD10PPCT5IP*I3
10.4” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD10PPCG1IP*I5
10.4” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD10PPCT1IP*I5
10.4” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD10PPCT5IP*I5

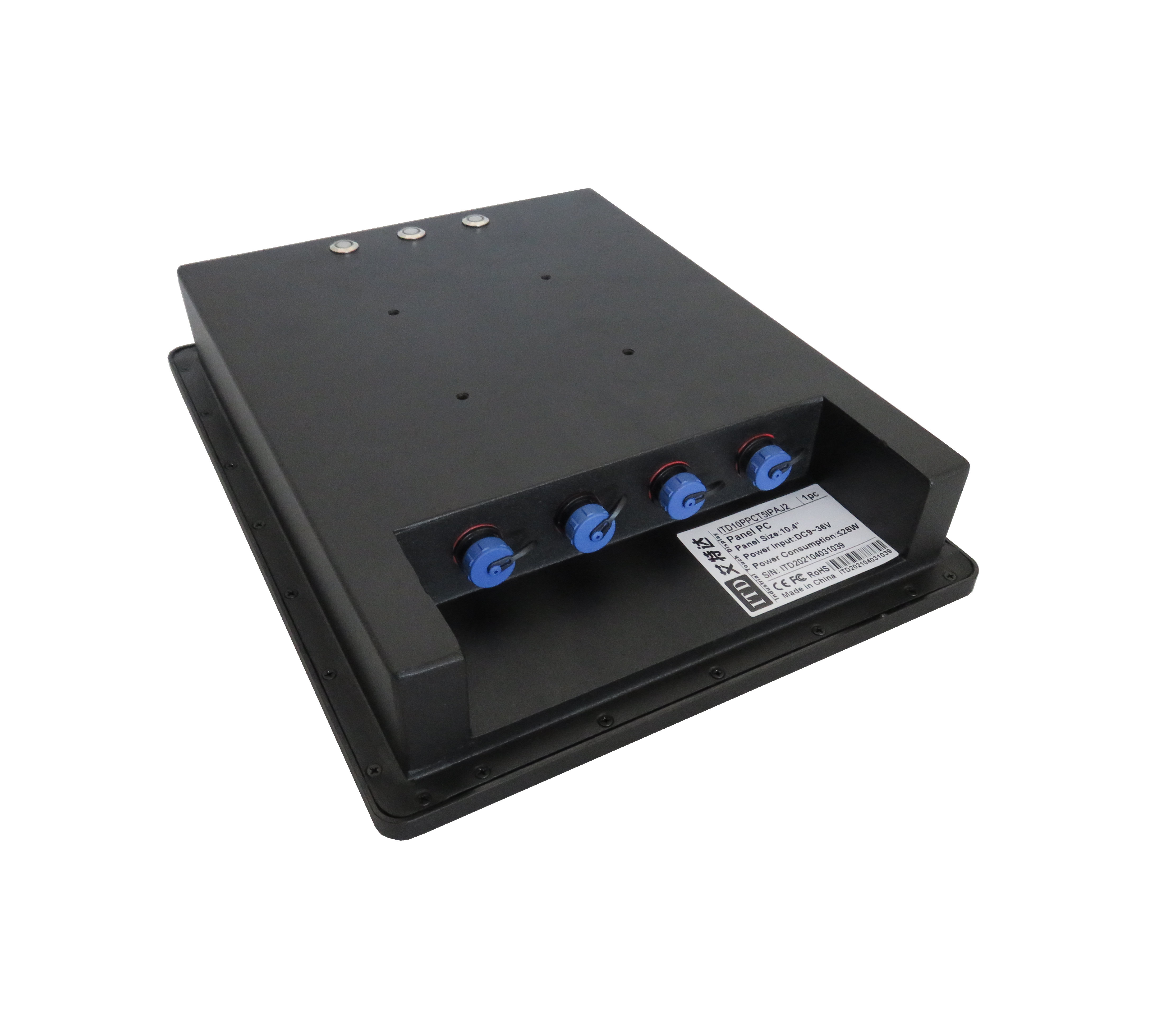

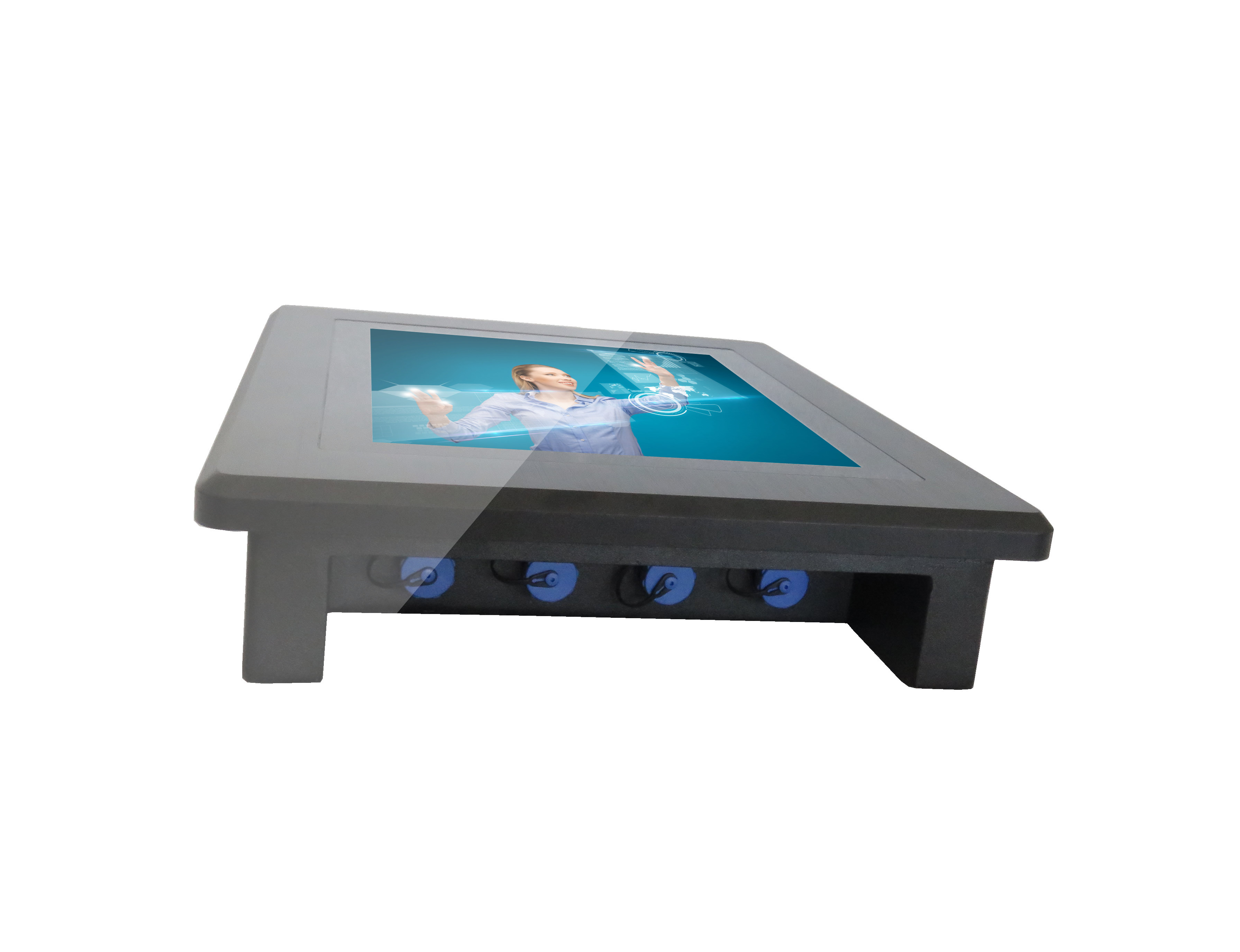

Product Display



 10.4 Inch Rugged Full IP67 NEMA 4x Marine Panel PC 1024x768 010.4 Inch Rugged Full IP67 NEMA 4x Marine Panel PC 1024x768 1
