15in Linux PoE Android Panel PC Waterproof Touchscreen Computer RK3399
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD15PPCT5IPAxx |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 15-20 working days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | RK3288, RK3399, Intel J1900, E3845, I3/i5/i7 Optional | Material | Aluminum Alloy Housing, Stainless Optionaal |
|---|---|---|---|
| Screen Diagonal | 15" | Physical Resolution | 1024 X 768 |
| View Angels | 80/80/80/80 | Backlife | LED Backlight With 50000 Hours’lifetime |
| RAM | 2G Max. 4G | IP Rate | Full IP65, IP66, IP67, IP69K Optional |
| Touch Screen | Resistive Touch Screen Or PCAP Touch | Storage | 8G, Max. 32G |
| OS | Android 8.9,10, 11, Linux, Windows Optional | Brightness | 250nits, 1000nits, 1500nits Optional |
| High Light | Linux PoE Android Panel PC,15in Android Panel PC,RK3399 Waterproof Touchscreen Computer |
||
Product Description

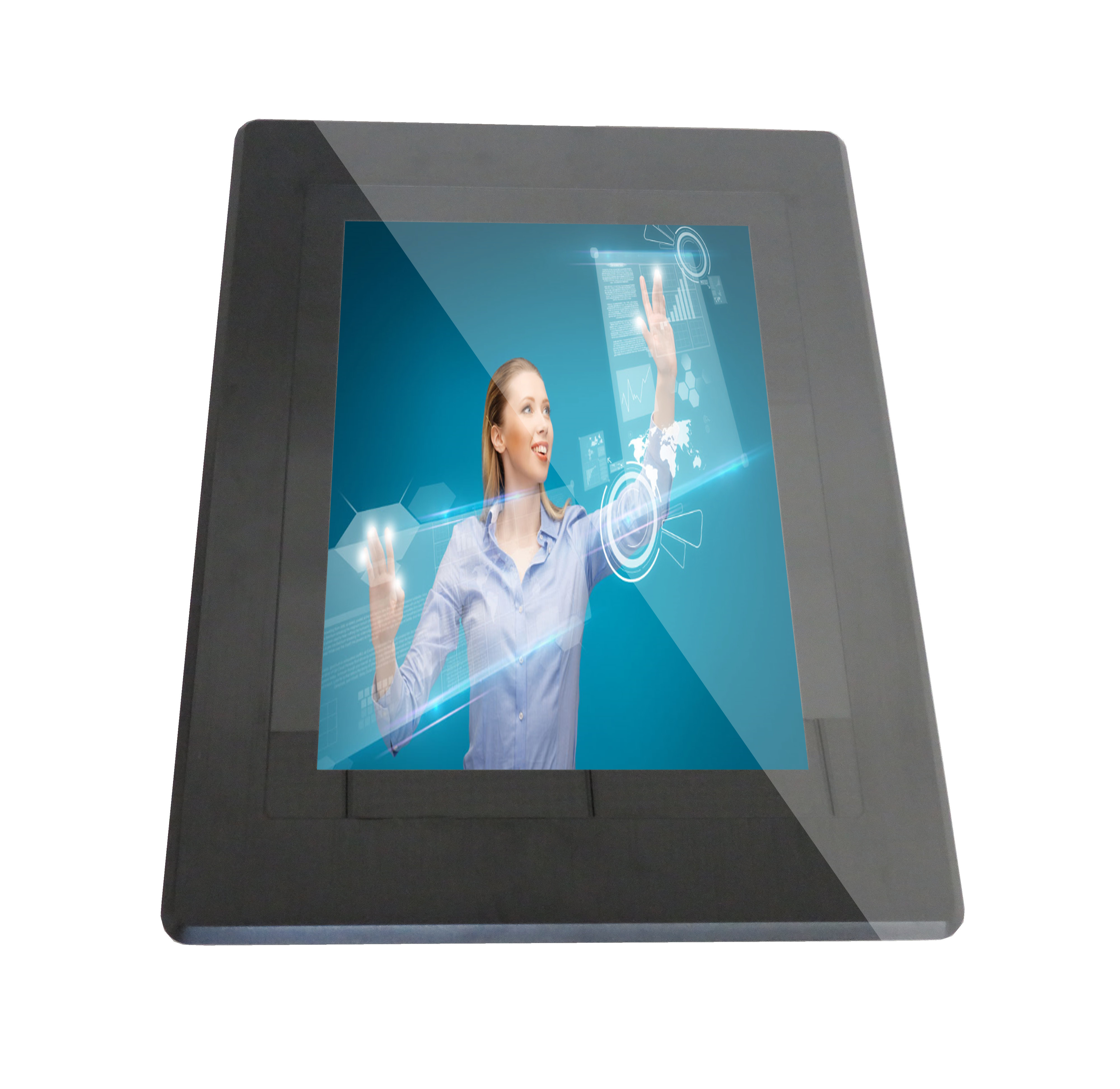

15 inch Android Linux PoE Panel PC waterproof touchscreen computer
The ITD Full IP65/IP66 high brightness panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, biotechnology process manufacturing and outdoor application. This waterproof PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 15”/4:3 | |
| Active Area/ Pixel Pitch | 304.13(W) x 228.10(H)mm/0.297 × 0.297mm | |
| Native Resolution/ Colors | 1024 x 768/16.2M | |
| Brightness/ Contrast | 1000cd/㎡(1500cd/㎡ optional)/700:1 | |
| Response Time/ Viewing Angle(Typical) | 30ms/80/80/60/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage | 8GB: 16GB/32GB/64GB Optional | 1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| Default Waterproof I/O |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 25-55W | |
| Environment Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Mounting | VESA Mount, Panel/Embedded Mount optional | |
| Order Information | 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD15PPCG1HBIP*E2 | |
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD15PPCT1HBIP*E2 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD15PPCT5HBIP*E2 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD15PPCG1HBIP*J2 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD15PPCT1HBIP*J2 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD15PPCT5HBIP*J2 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD15PPCG1HBIP*I3 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD15PPCT1HBIP*I3 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD15PPCT5HBIP*I3 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD15PPCG1HBIP*I5 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD15PPCT1HBIP*I5 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD15PPCT5HBIP*I5 | ||
