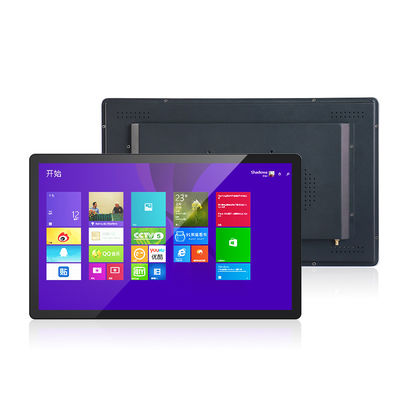

21.5 Inch 250nits Android Touch Pc 4G WIFI PCAP Touch For Medical

Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD121PPCT5KE1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,wooden case,pallet
Delivery Time 15-20 working days
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU RK3288, RK3399 Material Aluminum Frame And Steel Back Casing
Screen Diagonal 21.5" Physical Resolution 1920 X 1080
View Angels 89/89/89/89 Backlife LED Backlight With 50000 Hours’lifetime
RAM 2G Max. 4G IP Rate IP65 On Front
Touch Screen PCAP Touch Storage 8G, Max. 32G
OS Android 7.1/8/10 Brightness 250nits
MTBF 50000hours
High Light

21.5 Inch Android Touch Pc

,

250nits Android Touch Pc

,

PCAP Touch Industrial Panel Pc

Leave a Message
Product Description

android touch pc 21.5 inch with 4G WIFI for medical/digital signage



FEATURES

• Centralized server controls content distribution;

• Combined hardware and software solution for fast, reliable delivery of digital signage content and continuous operation;

• Easy WIFI network system installation without the need for extra IT, firewall or security configurations;

• Simple content scheduling and updating for each display;

• Restart and update digital signage players remotely;

• Create and update separate schedules for each display, al owing for targeted ads at each terminal or different locations;

• Deliver rich media including: Multiple video and audio formats, RSS feeds and image slide shows;

• Transfer schedules and contents to one or more displays;

• Control, monitor and design screen layouts remotely by the admin software;

• Support Multi-zone terminal display and flexible screen layout;

• Local review of multi-zone display layout once the content is stored in the server PC;

• Manage daily power on/off time for any display or group of displays;

• Deliver high definition image content;

• Content plays automatically upon set up of schedule;

• Display live news, weather, traffic reports, emergency announcements and many other notices;

• Anytime insert emergent video file;

• Remotely report system utilization and memory usage;

• System automatically notifies administrator of any malfunction;

• Custom-features development service available from our professional software team;

• Daily, monthly display content recording;

• Possible to integrate with the any existing management system.

PARAMETERS

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 21.5”/16:9
Active Area/ Pixel Pitch 476.64(H) x 248.25(V)mm /0.24825 × 0.24825mm
Native Resolution/ Colors 1920 x 1080/16.7M
Brightness/ Contrast 250cd/㎡/1000:1
Response Time 5ms
Viewing Angle(Typical) 89/89/89/89
Light Source LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System

CPU: ARM Quad Core RK3288 Cortex-A17, Main CPU frequency:1.8GHz

GPU: Mali-T764 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 6.0/7.1; Bluetooth: Optional

Video Decoder: 4K VP8 and 4K 10bits H265/H264

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG

Input / Output

1 × HDMI; 2 × USB Max. 6× USB

1 × TF Card Support 8~128GB;

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

1 × DC 12V 2.0; 3G/4G Optional

Com Port optional

Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%
Order Information 21.5”Zero-Bezel Android Panel PC with Tempered Glass/ITD21PPCG1KE1
