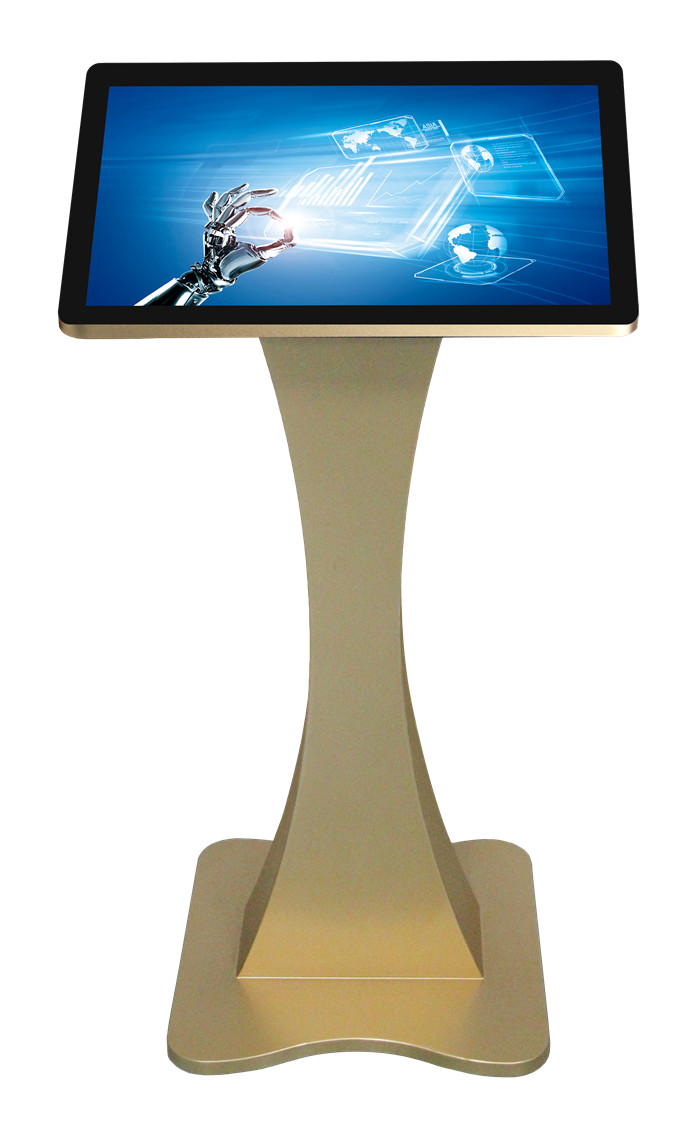

LPCM 23.8" Industrial Touch Panel Pc Android 7.1 For Commercial

Place of Origin China
Brand Name ITD
Certification CE/ROHS/FCC
Model Number ITD24PPCT5KE1
Minimum Order Quantity 1 unit
Packaging Details Foam,gift box,master carton,wooden case,pallet
Delivery Time 15-20 working days
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month
Product Details
CPU RK3288, RK3399 Material Aluminum Frame And Steel Back Casing
Screen Diagonal 23.8" Physical Resolution 1920 X 1080
View Angels 89/89/89/89 Backlife LED Backlight With 50000 Hours’lifetime
RAM 2G Max. 4G IP Rate IP65 On Front
Touch Screen PCAP Touch Storage 8G, Max. 32G
OS Android 7.1/8/10 Brightness 250nits
MTBF 50000hours
High Light

LPCM Industrial Touch Panel Pc


23.8" Industrial Touch Panel Pc


Android 7.1 Capacitive Touch Pc

Leave a Message
Product Description

23.8" all in 1 pc touch screen android 8 tablet for commercial use


Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 23.8”/16:9
Active Area/ Pixel Pitch 531.36(H) x 298.89(V)mm /0.2745 × 0.2745mm
Native Resolution/ Colors 1920 x 1080/16.7M
Brightness/ Contrast 300cd/㎡/1000:1
Response Time 14ms
Viewing Angle(Typical) 89/89/89/89
Light Source LED Backlight with 50000Hours’Lifetime



CPU: Dual Cortex-A72+Quad Cortex-A53, 64-bit CPU, CPU frequency: 1.8GHz;

GPU: Mali-T860MP4 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11


Flash: 32G

OS: Android 9 Bluetooth: Bluetooth 4.1 GPS optional

Video Decoder: 4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM


Photo Format: Supports JPG/BMP/GIF/TIFF/PNG

Input / Output

1 × HDMI; 2 × USB Max. 6× USB(2.0/3.0/OTG)

1 × TF Card Support 8~128GB;

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

1 × DC 12V 2.0; 3G/4G Optional

Com Port optional

Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%
Order Information 24”Zero-Bezel Android Panel PC with Tempered Glass/ITD24PPCG1KE2
