13.3" 1000nits Outdoor Waterproof Android Pc 15W Capacitive Touch SCADA

Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD13PPCG1IP**
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,wooden case,pallet
Delivery Time 15-20 working days
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 Optional) Screen Diagonal 13.3"
Graphics Supports Max. 4K Resolution Default Waterproof I/O 2 × USB, 1× RJ45, 1× DC12V. COM Ports, HDMI Output, Audio, Etc.
Input Voltage DC 12V 2.0; DC9-36V Input Optional Operation/Power Saving 15W
RAM 2G RAM, Max. 4G Storage 8G, Max. 32G
Housing Material Stainless Steel Or Aluminum Touch Screen Capacitive Touch Screen, Resistive Touch
High Light

13.3" Outdoor Waterproof Android Pc

,

1000nits Outdoor Waterproof Android Pc

,

SCADA Capacitive Touch Screen Pc

Leave a Message
Product Description

fully sealed NEMA4x wide screen 13.3" 1000nits outdoor waterproof android pc​


FEATURES

•Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents

•Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection

•Rugged aluminum alloy/stainless steel enclosure design with high EMC and IP65/IP66 NEMA4/4X protection

•Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports

•Flexible, reliable, and ruggedized for open platform HMI/SCADA

•Provides improved power efficiency and reduced consumption

•CE, FCC, RoHS Compliance


Specifications



DISPLAY

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 13.3”/16:9
Active Area/ Pixel Pitch 293.42(H)x 164.97(V)mm/0.2235 × 0.2235mm
Native Resolution/ Colors 1920 x 1080/262K
Brightness/ Contrast 1000cd/㎡/700:1
Response Time/ Viewing Angle(Typical) 16ms/89/89/89/89
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) Intel® Celeron J1900 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage 8GB: 16GB/32GB/64GB Optional 1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
Default Waterproof I/O

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

LAN 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet
OS Android 6.0 (Android 7.0 optional) Windows 7/8/10, Linux Windows 7/8/10, Linux

GENERAL

Power Input Voltage DC 12V 2.0
Operation/Power Saving 20~45W
Environment Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Mounting VESA Mount, Panel/Embedded Mount optional
Order Information 13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD13PPCG1HBIP*E2
13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD13PPCT1HBIP*E2
13.3” 1000nits Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD13PPCT5HBIP*E2
13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD13PPCG1HBIP*J2
13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD13PPCT1HBIP*J2
13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD13PPCT5HBIP*J2
13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD13PPCG1HBIP*I3
13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD13PPCT1HBIP*I3
13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD13PPCT5HBIP*I3
13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD13PPCG1HBIP*I5
13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD13PPCT1HBIP*I5
13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD13PPCT5HBIP*I5

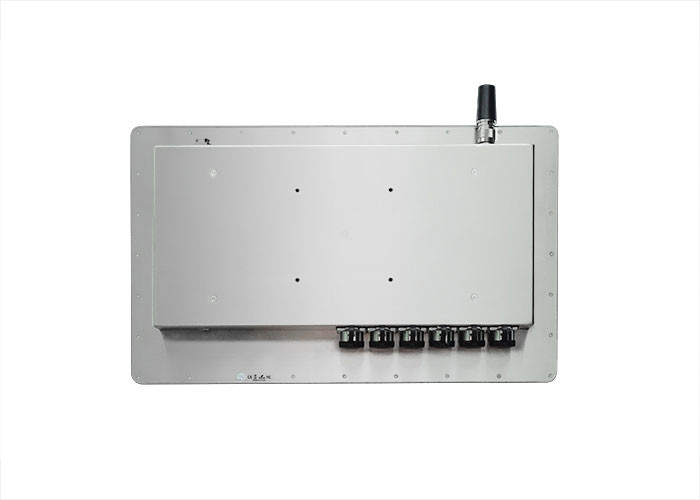

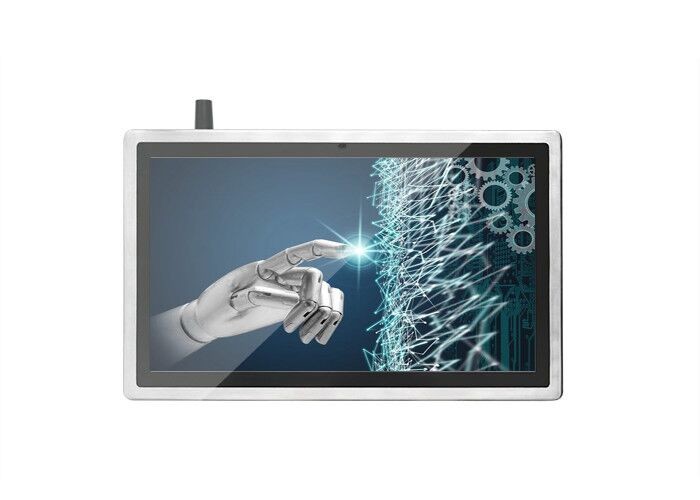

Product Display
