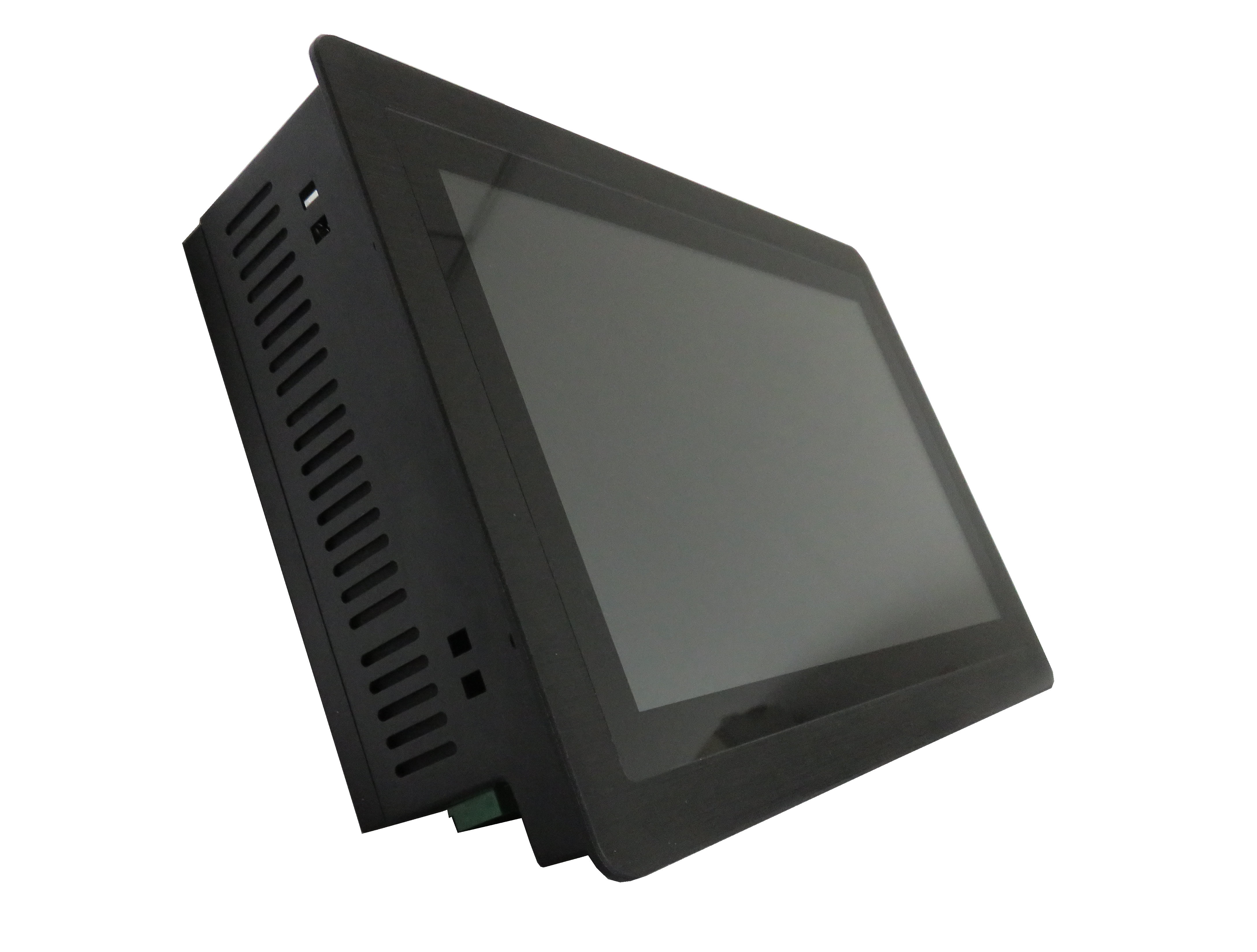

20W 350nits Industrial Touch Screen PC 13.3" 1600MHz With -20~70℃
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD13PPCT5Xxx |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1920x1080 | Brightness | 350nits, 500 ,1000nits Optional |
|---|---|---|---|
| Processor | RK3288, RK3399, Intel J1900, Intel I3/i5/i7 | Touch Panel | Capacitive/resistive |

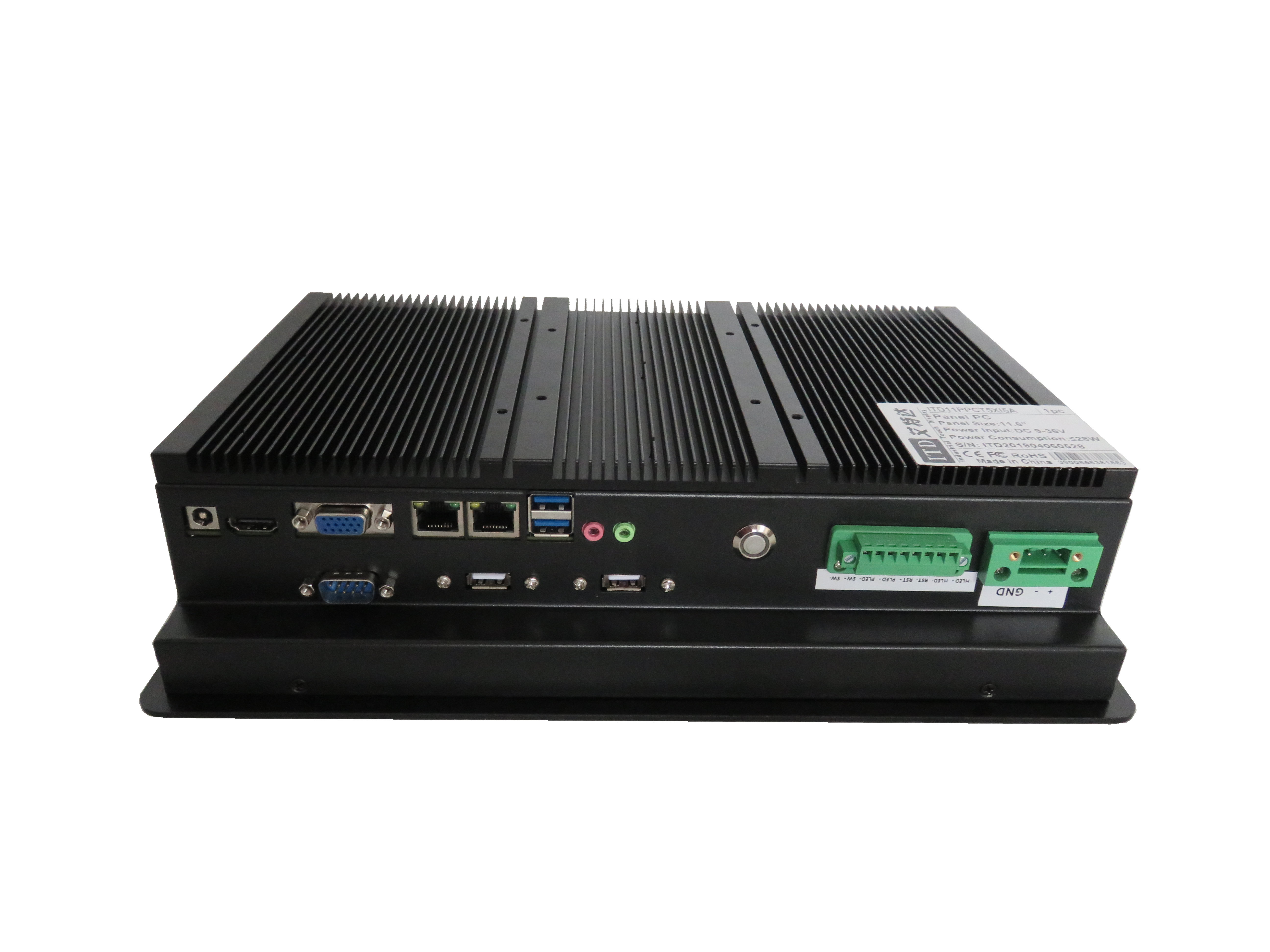

| Mounting Method | Panel Mount,VESA | I/O | USB, COM, HDMI, Audio, LAN, GPIO |
| Operating Temperature | -20~70℃ | Storage Temperature | -20~70℃ |
| Material | Steel Housing, Aluminum Front Bezel HeatSink | Warranty | 2 Years |
| MTBF | 50000hours | ||
| High Light | 350nits Industrial Touch Screen P,45W Industrial Touch Screen P,1600MHz Marine Panel PC |
||
Product Description
marine panel PC industrial touch screen 13.3" with -20~70℃
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 13.3”/16:9 | |
| Active Area/ Pixel Pitch | 293.42(H)x 164.97(V)mm/0.2235 × 0.2235mm | |
| Native Resolution/ Colors | 1920 x 1080/262K | |
| Brightness/ Contrast | 1000cd/㎡/700:1 | |
| Response Time/ Viewing Angle(Typical) | 16ms/89/89/89/89 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage |
8GB: 16GB/32GB/64GB Optional
|
1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| I/O | 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB |
1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662 Line-Out /MIC IN |
1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662 Line-Out /MIC IN |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 20~45W | |
| Environment Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90% | |
| Order Information | 13.3” Flat Bezel Marine Panel PC 1000nits with PCAP Touch RK32880/ITD13PPCT5HBXE2 | |
| 13.3” Flat Bezel Marine Panel PC 1000nits with Resistive Touch RK3288/ITD13PPCT1HBXE2 | ||
| 13.3” Flat Bezel Marine Panel PC 1000nits with Tempered Glass RK3288/ITD13PPCG1HBXE2 | ||
| 13.3” Flat Bezel Marine Panel PC 1000nits with PCAP Touch J1900/ITD13PPCT5HBXJ2 | ||
| 13.3” Flat Bezel Marine Panel PC 1000nits with Resistive Touch J1900/ITD13PPCT1HBXJ2 | ||
| 13.3” Flat Bezel Marine Panel PC 1000nits with Tempered Glass J1900/ITD13PPCG1HBXJ2 | ||
| 13.3” Flat Bezel Marine Panel PC 1000nits with PCAP Touch i3/ITD13PPCT5HBXI3 | ||
| 13.3” Flat Bezel Marine Panel PC 1000nits with Resistive Touch i3/ITD13PPCT1HBXI3 | ||
| 13.3” Flat Bezel Marine Panel PC 1000nits with Tempered Glass i3/ITD13PPCG1HBXI3 | ||
| 13.3” Flat Bezel Marine Panel PC 1000nits with PCAP Touch i5/ITD13PPCT5HBXI5 | ||
| 13.3” Flat Bezel Marine Panel PC 1000nits with Resistive Touch i5/ITD13PPCT1HBXI5 | ||
| 13.3” Flat Bezel Marine Panel PC 1000nits with Tempered Glass i5/ITD13PPCG1HBXI5 | ||
