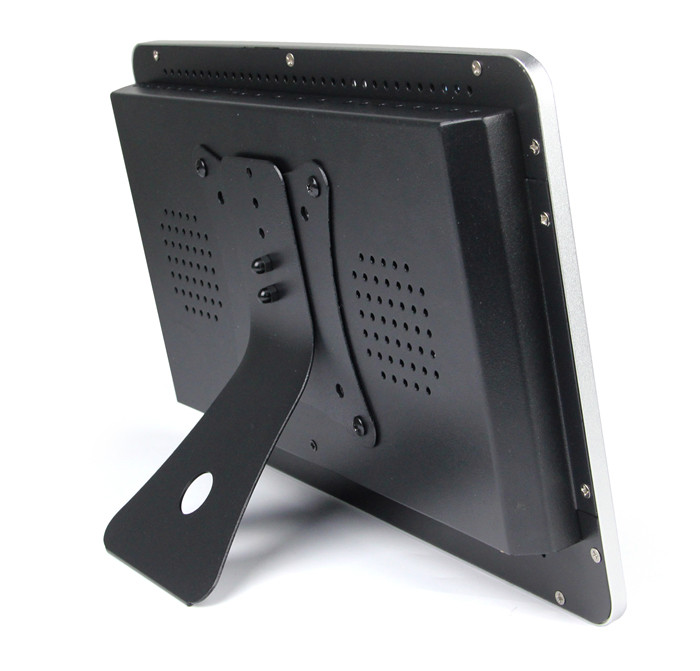

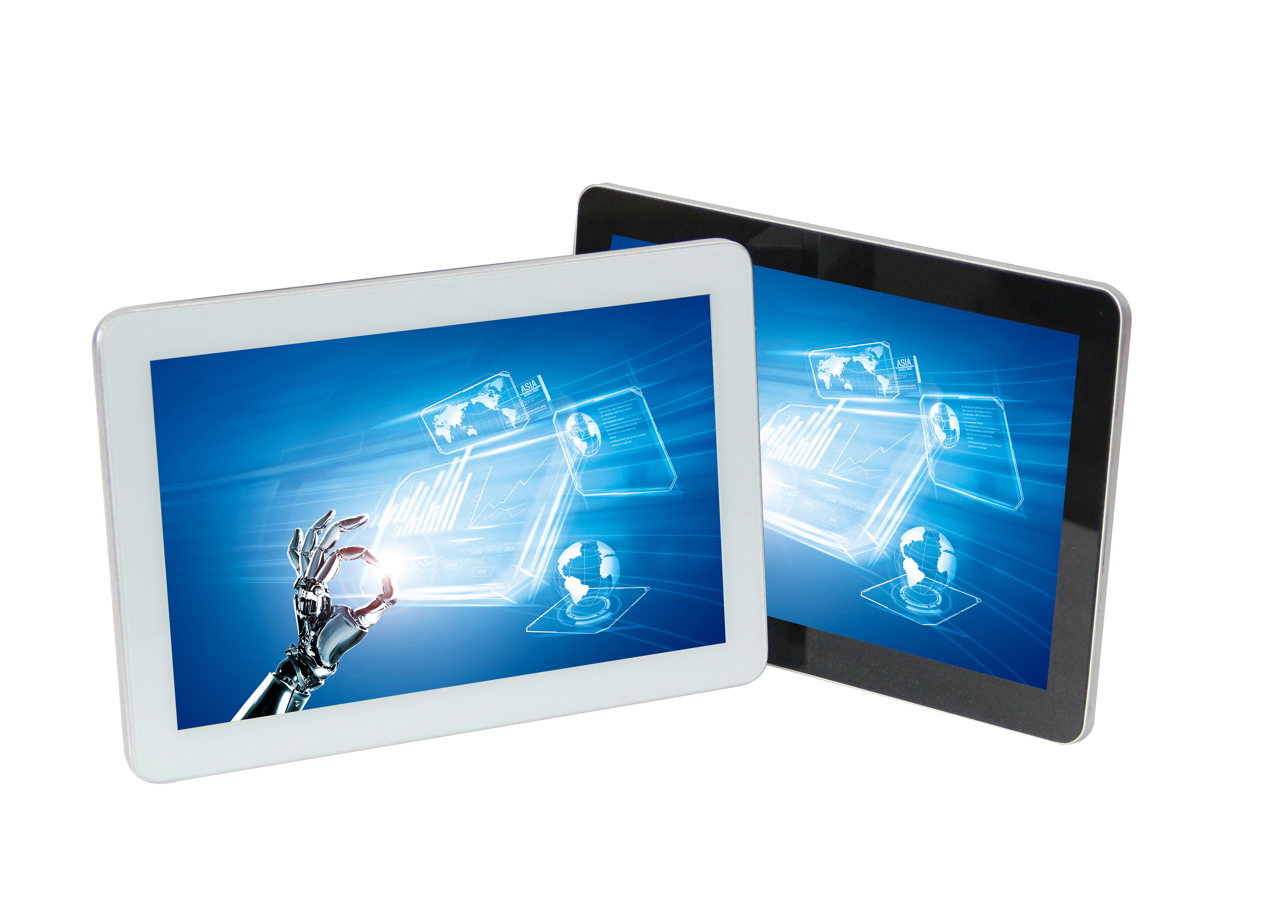

AIO VESA Mount Linux PoE RFID Panel PC 350nits For Access Control

  • AIO VESA Mount Linux PoE RFID Panel PC 350nits For Access Control
  • AIO VESA Mount Linux PoE RFID Panel PC 350nits For Access Control
  • AIO VESA Mount Linux PoE RFID Panel PC 350nits For Access Control
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD101PPCT5Kxx
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Native Resolution 1920x1200, 1280x800 Brightness 350nits
Processor RK3288, RK3399, Intel J1900, Intel I3/i5/i7 Touch Panel Capacitive/resistive
Mounting Method VESA I/O USB, COM, HDMI, Audio, LAN
Operating Temperature -10~60℃ Storage Temperature -20~70℃
Material Steel Housing, Aluminum Frame Warranty 2 Years
MTBF 50000hours
High Light

AIO VESA RFID Panel PC

,

Linux PoE RFID Panel PC

,

350nits Fanless Panel Pc
Leave a Message
Product Description

10 panel pc AIO VESA mount Linux PoE RFID optional for access control



PARAMETERS

Panel Cell Type/Glass Surface TFT
Size 10.1”
Aspect Ratio 16:10
Active Area 216.81(W) × 135.50(H)mm
Pixel Pitch 0.113 × 0.113mm
Native Resolution 1280 x 800
Colors 16.7M
Brightness 300cd/㎡
Contrast 800:1
Response Time 14ms
Viewing Angle(Typical) 160/160
Light Source LED

SPECIFICATION

System CPU Intel® Celeron J1900 2.0GHz Processor
BIOS AMI
Chipset Intel Bay Trail SoC
Memory

Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB
Graphic Chipset CPU integrated graphics HD and support 1080p
Storage 1 x SATA, 1 x mSATA, Default to 64GB SSD
LAN 1 x 10/100/1000Mbps Ethernet
Input / Output Serial Ports 1 x COM
USB Ports 4 X USB
VGA Port 1 x VGA
HDMI Port 1x HDMI Port
Audio Card

with Realtek ALC662

Line-Out/MIC IN
Power Input Voltage DC 12V
Operation/Power Saving 20W
Environment Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%
Order Information 10.1” 1280 x800 Zero-Bezel Panel PC with PCAP Touch J1900/ITD101PPCT5KJ2
10.1” 1280 x800 Zero-Bezel Panel PC with Tempered GlassJ1900/ITD101PPCG1KJ2



AIO VESA Mount Linux PoE RFID Panel PC 350nits For Access Control 0AIO VESA Mount Linux PoE RFID Panel PC 350nits For Access Control 1
