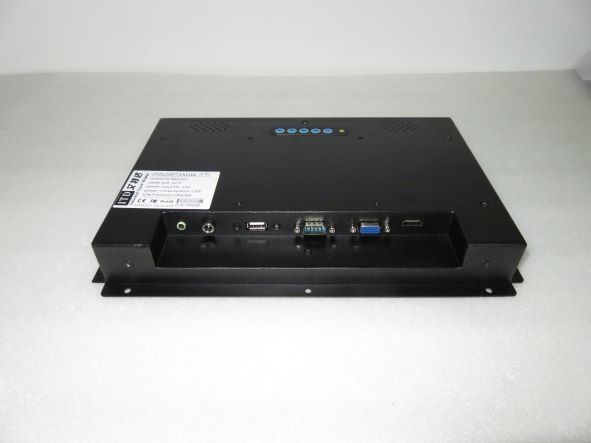

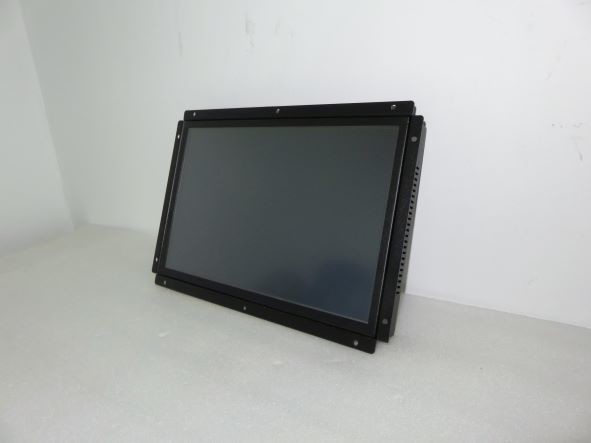

1280x800 RS232 Open Frame Lcd Display 12.1" 1000nits industrial
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD13OFT5M1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1280x800 | Brightness | 350nits, 500 ,1000nits Optional |
|---|---|---|---|
| Touch Panel | Capacitive, Resistive Touch, IR Touch, SAW | Mounting Method | VESA, Side Mounting Bracket |
| I/O | VGA, DVI, HDMI Inputs, USB Port, DC 12V Input | Operating Temperature | -10~60℃ ; -20~70℃ Optional |
| Storage Temperature | -20~70℃ | Optional | RS232 Port, DC9-36V Input |
| Warranty | 2 Years | MTBF | 50000hours |
| High Light | RS232 Open Frame Lcd Display,1280x800 Open Frame Lcd Display,1000nits Industrial Open Frame Monitor |
||
Product Description
touch screen open frame tft lcd display 12.1" wide 1280x800 1000nits
ITD 12.1” ITD12OFT1HB02W is an open frame LCD touch monitor, high brightness for sunlight readable application. It offers the best visibility, performance and cost effective value. The high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality and guaranteeing product life cycle longevity, stability, and reliability.
FEATURES
•High contrast color TFT LCD display supports resolution up to 1280 x 800
•Supports DDC 1/2B for Plug & Play compatibility
•Advanced OSD control for picture quality adjustment
•All steel construction designed for harsh and industrial environments
•The LED backlight enables optimal viewing in all lighting conditions
•CE, FCC, RoHS Compliance
OPTIONALS
•AR/AG Tempered glass
•Touch sensor technologies: Resistive, IR, PCAP
•Auto-Dimming, light sensor
•AV input, RS232 remote control
SPECIFICATION
| Panel | Cell Type/Glass Surface | TFT |
| Aspect Ratio/Size | 12.1” 16:10 | |
| Active Area/Pixel Pitch | 261.12(H) x 163.20(V)/0.204mm | |
| Native Resolution/Colors | 1280 x 800 /16.2M | |
| Brightness/Contrast | 1000nits/1000:1 | |
| Response Time | 25ms | |
| Viewing Angle(Typical) | 80/80/65/80 | |
| Light Source | LED with 50000hours’lifetime | |
| Input Signals | VGA, HDMI | |
| Operating Temperature | -10℃~60℃ | |
| Storage Temperature | -20℃~70℃ | |
| Convenient Features | Backlight adjustment, Plug & Play, OSD Multi-Languages | |
| Power | External AC-to-12VDC power adapter with universal/Auto-Sensing | |
| Power Consumption | Operation/Power Saving | Below 18W |
| Touch Panel | Resistive touch screen | |
| Touch interface | USB or RS232 | |
| Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | |
| Order Information | 12.1” wide screen Open Frame Monitor no touch/ITD12OFN1HB02W | |
| 12.1”wide screen Open Frame Monitor IR touch/ITD12OFT2HB02W | ||
| 12.1”wide screen Open Frame Monitor PCAP touch/ITD12OFT5HB02W | ||
