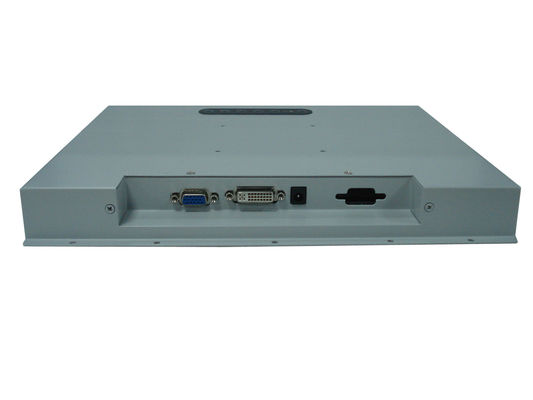

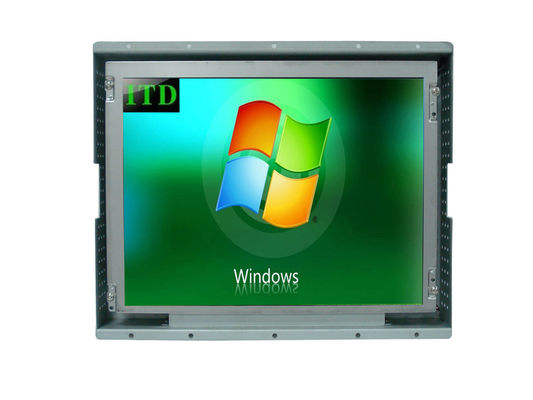

1024x768 12.1 Inch Open Frame Lcd Monitor FCC VGA For All Kiosks
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD12OFN1HRM1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1024x768 | Brightness | 350nits, 500 ,1000nits, 1500nits Optional |
|---|---|---|---|
| Touch Panel | Capacitive, Resistive Touch, IR Touch, SAW | Mounting Method | VESA, Side Mounting Bracket |
| I/O | VGA, DVI, HDMI Inputs, USB Port, DC 12V Input | Operating Temperature | -10~60℃ ; -20~70℃ Optional |
| Storage Temperature | -20~70℃ | Optional | RS232 Port, DC9-36V Input |
| Warranty | 2 Years | MTBF | 50000hours |
| High Light | 12.1 Inch Open Frame Lcd Monitor,1024x768 Open Frame Lcd Monitor,FCC Open Frame Lcd Panel |
||
Product Description
12.1 inch open frame lcd monitor touch screen optional for all kiosks
ITD 12.1” ITD12OFN1HRM1 open frame LCD touch monitor provides industrial or commercial users with crystal clear picture quality. The all metal enclosures is rugged in design and fit perfectly into any enclosure. It is space saving for your compact environment cabinet.
OPTIONALS
•AR/AG Tempered glass
•Sunlight Readable, light sensor
•Touch sensor technologies: resistive, IR, PCAP
•Video Signal input: AV, S-Video
SPECIFICATION
| Panel | Cell Type/Glass Surface | TFT |
| Aspect Ratio/Size | 12.1” 4:3 | |
| Active Area/Pixel Pitch | 246.0(H) x 184.5(V)/0.3075mm | |
| Native Resolution/Colors | 1024 x 768 /16.2M | |
| Brightness/Contrast | 300nits/700:1 | |
| Response Time | 12ms | |
| Viewing Angle(Typical) | 80/80/80/60 | |
| Light Source | LED Backlight with 50000Hours’Lifetime | |
| Input Signals | VGA,DVI,HDMI | |
| Convenient Features | Backlight adjustment, Plug & Play, OSD Multi-Languages | |
| Power | External AC-to-12VDC power adapter with universal/Auto-Sensing | |
| Power Consumption | Operation/Power Saving | Below 15W |
| Touch Panel | Resistive touch screen | |
| Touch Interface | USB or RS232 | |
| Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | |
| Order Information | 12.1” XGA open frame monitor 1024 x 768 no touch/ITD12OFN1HRM1 | |
| 12.1” XGA open frame monitor with IR touch/ITD12OFT2HRM1 | ||
| 12.1” XGA open frame monitor with PCT touch/ITD12OFT5HRM1 | ||
| 12.1” XGA open frame monitor with tempered glass/ITD12OFG1HRM1 | ||
