2000nits 2560x1440 Open Frame LCD Monitor VESA 1080p 2K 4K Optional
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD32OFT2C1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1920x1080, 2560x1440 | Brightness | 350nits, 500~2000nits, Optional |
|---|---|---|---|
| Touch Panel | PCAP, IR Touch, SAW | Housing Material | Metal |
| I/O | VGA, DVI, HDMI， DP Inputs, USB Port, DC 12V Input | Operating Temperature | -10~60℃ ; -20~70℃ Optional |
| Storage Temperature | -20~70℃ | Viewing Angles | 85/85/80/80, 89/89/89/89 Optional |
| Warranty | 2 Years | MTBF | 50000hours |
| High Light | 2000nits Open Frame LCD Monitor,2560x1440 Open Frame LCD Monitor,VESA Infrared Touch Screen Monitor |
||
Product Description

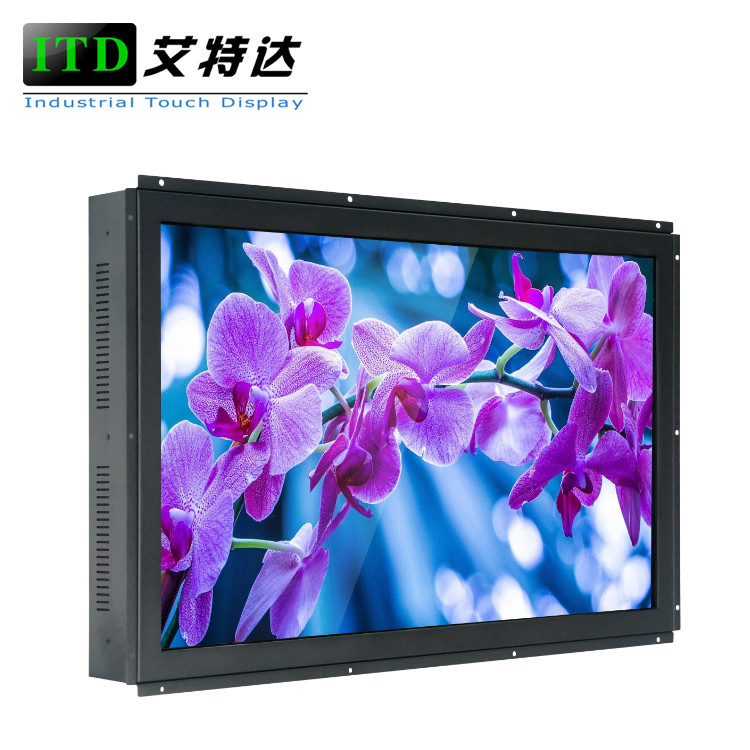

32 open frame monitor with infrared touch screen 1080p 2K 4K optional
ITD 32” ITD32OFT2C1 open frame touch monitor (Chassis Mount Monitor) provides industrial or commercial users with crystal clear picture quality. The all steel enclosures are rugged in design and fit perfectly into any enclosure. It is space saving for your compact environment cabinet. The slim front cover can protect the TFT panel and touch sensor. The mounting brackets are removable.
FEATURES
•High contrast color TFT LCD display supports resolution up to 1920 x 1080
•Supports DDC 1/2B for Plug & Play compatibility
•Advanced OSD control for picture quality adjustment
•All steel construction designed for harsh and industrial environments
•Easy-to-install console with open frame style
•75/100mm VESA mount and side brackets•CE, FCC, RoHS Compliance
OPTIONALS
•AR/AG Tempered glass
•Sunlight Readable, light sensor
•Touch sensor technologies: IR, PCAP, SLW
•Video Signal input: AV, S-Video
SPECIFICATION
| Panel | Cell Type/Glass Surface | TFT |
| Aspect Ratio/Size | 32” 16:9 | |
| Active Area/Pixel Pitch | 698.4 (H) x 392.85 (V)/ 0.36375mm | |
| Native Resolution/Colors | 1920 x 1080 /16.7M | |
| Brightness/Contrast | 400nits/1200:1 | |
| Response Time | 5ms | |
| Viewing Angle(Typical) | 89/89/89/89 | |
| Light Source | LED Backlight with 50000Hours’Lifetime | |
| Input Signals | VGA/DVI/HDMI | |
| Convenient Features | Backlight adjustment, Plug & Play, OSD Multi-Languages | |
| Power | Internal power supply with universal/Auto-Sensing, AC 100V~240V | |
| Power Consumption | Operation/Power Saving | Below 130W |
| Touch Panel | IR touch (vandal proof, water proof, dust proof) | |
| Touch Interface | USB or RS232 | |
| Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | |
| Order Information | 32”Open frame monitor with no touch/ITD32OFN1C1 | |
| 32”Open frame monitor with SAW touch/ITD32OFT3C1 | ||
| 32”Open frame monitor with PCT touch/ITD32OFT5C1 | ||
| 32”Open frame monitor with tempered glass/ITD32OFG1C1 | ||
