VESA 1000nits Resistive Touch Panel PC Intel J4125 TPM2.0 8" Open Frame

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD08PPCT1FJ2
Minimum Order Quantity 1pcs
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 15-20 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month
Product Details
Native Resolution 1024x768 Brightness 350nits, 500 ,1000nits Optional
Processor Intel J4125 Touch Panel Capacitive/resistive
Pepherials Integrated RFID Reader, Finger Reader, Camera Optional I/O USB, COM, HDMI, Audio, LAN, DC 12V Input
Operating Temperature -10~60℃, 20~70℃ Optional Storage Temperature -20~70℃
Material Steel Housing MTBF 50000hours
High Light

VESA Resistive Touch Panel PC

,

1000nits Resistive Touch Panel PC

,

TPM2.0 Open Frame Panel PC

Leave a Message
Product Description

8" open frame resistive touch panel PC Intel J4125 Windows 11 TPM 2.0



ITD HMI comfort open frame touch panel PC is fully-integrated‚ combines high-performance ARM based or x86 based PC system, and optional touchscreen integrated in industrial-grade LCD flat panels, with sleek and open frame chassis industrial design. This open frame panel PC series with bezel-less display provides design flexibility for customers without any limitation, which can be easily installed in any enclosures.





FEATURES

• Open platform enables Machine-to-Machine (M2M) andInternet of Things (IoT) applications computers for open platform HMI/SCADA

• Long lasting product cycle for continuity thru allphases of project rollouts and servicing

• Steel construction for harsh and industrialenvironments

• Easy to install Open Frame chassis mount display

• Multiple mounting options: 75 x 75 mm VESA mount and side brackets

• Provides improved power efficiency and reduced consumption

• Windows 11 OS supported, TPM 2.0 supported.

• CE, FCC, RoHS Compliance



OPTIONALS

• DC 24V, DC9-36V, AC100-240V • Optical bonding
• Resistive touch screen, PCAP touch, IR touch, SAW touch, AR/AG tempered glass • WIFI, 3G, 4G, Bluetooth

DISPLAY

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 8”/4:3
Active Area/ Pixel Pitch 162.048(W) x 121.536(H)mm/0.15825 × 0.15825mm
Native Resolution/ Colors 1024 x 768/16.7M
Brightness/ Contrast 350cd/㎡/700:1
Response Time/ Viewing Angle(Typical) 20ms/80/80/80/80
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) Intel® Celeron J1900 2.0GHz or Intel Celeron J4125 Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage

8GB: 16GB/32GB/64GB Optional



1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
I/O 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

Line-Out /MIC IN

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

Line-Out /MIC IN

LAN 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet
OS Android 6.0 (Android 7.1/8/9 optional) Windows 7/8/10, Linux Windows 7/8/10, Linux

GENERAL



Power Input Voltage DC 12V 2.0, DC9-36V input optional
Operation/Power Saving 15~30W
Environment Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%

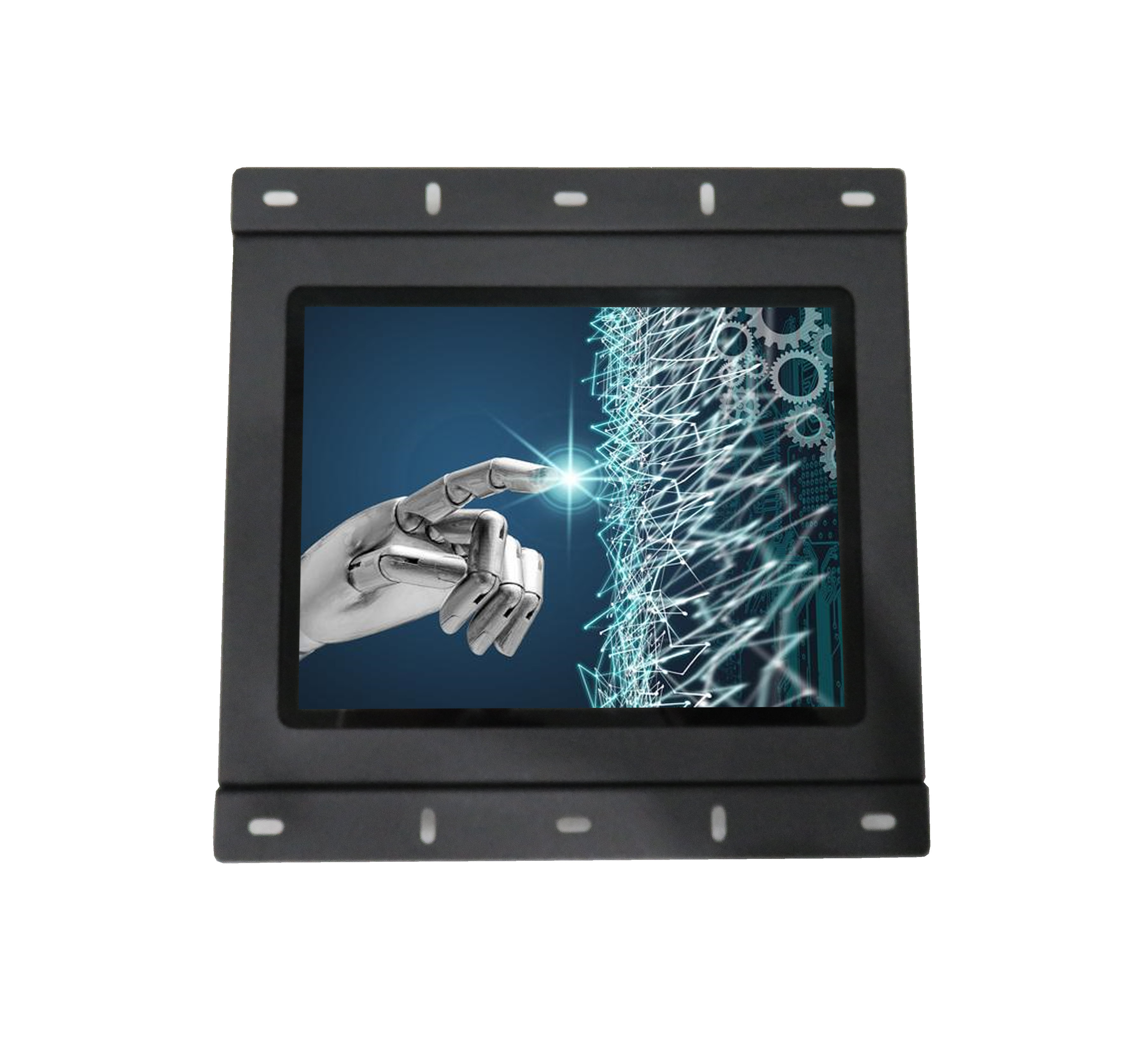

VESA 1000nits Resistive Touch Panel PC Intel J4125 TPM2.0 8" Open Frame 0

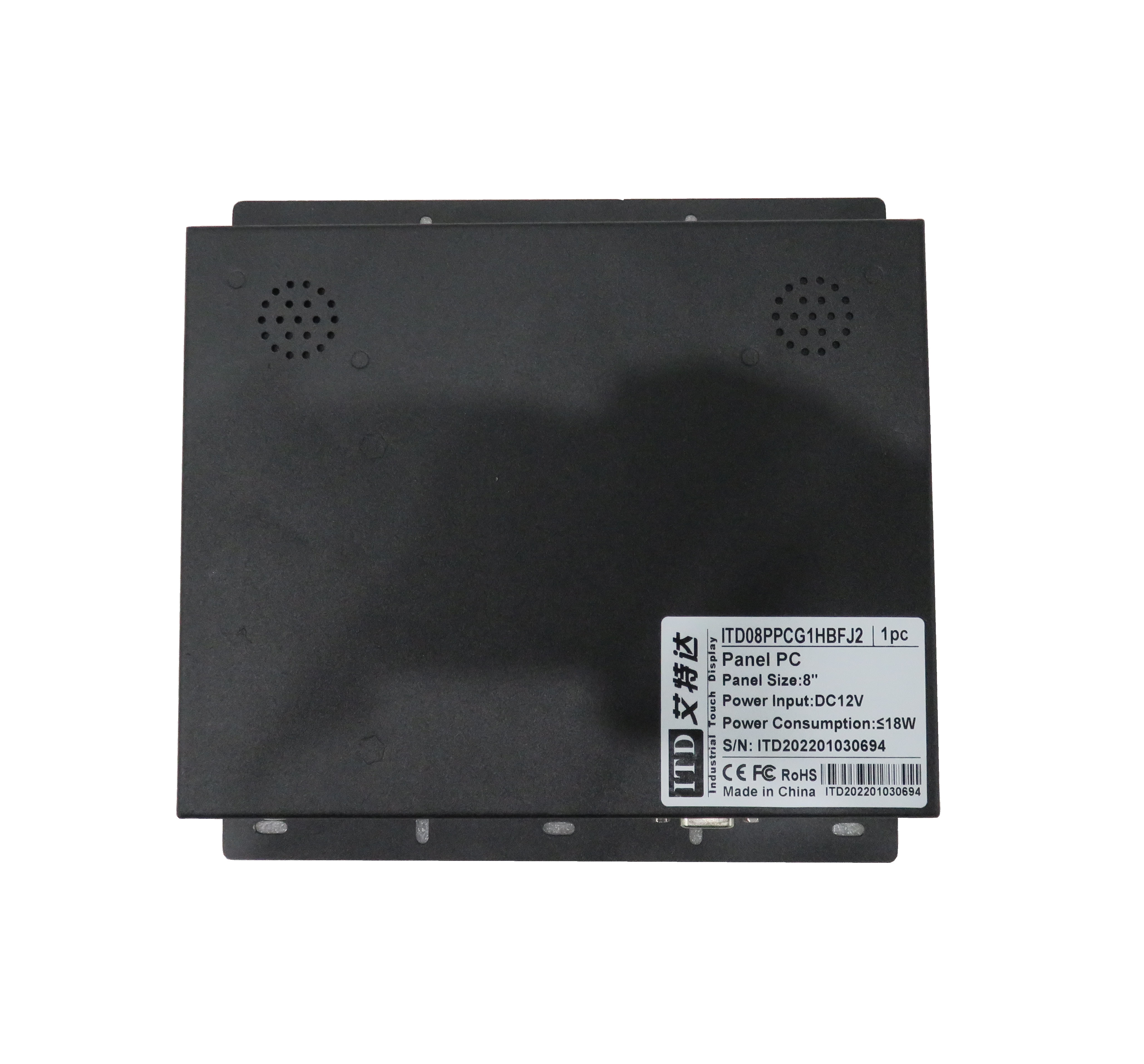

VESA 1000nits Resistive Touch Panel PC Intel J4125 TPM2.0 8" Open Frame 1
