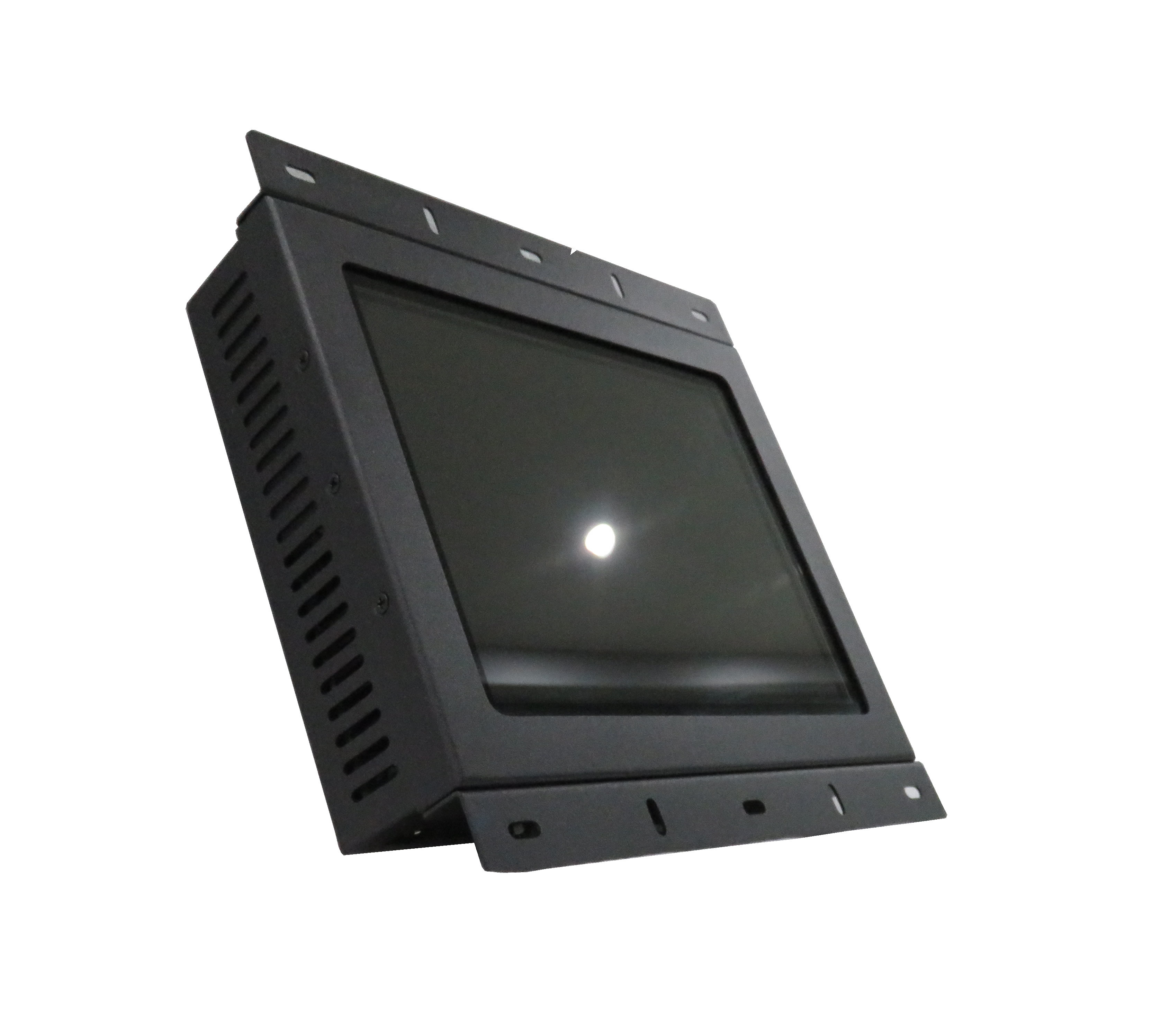

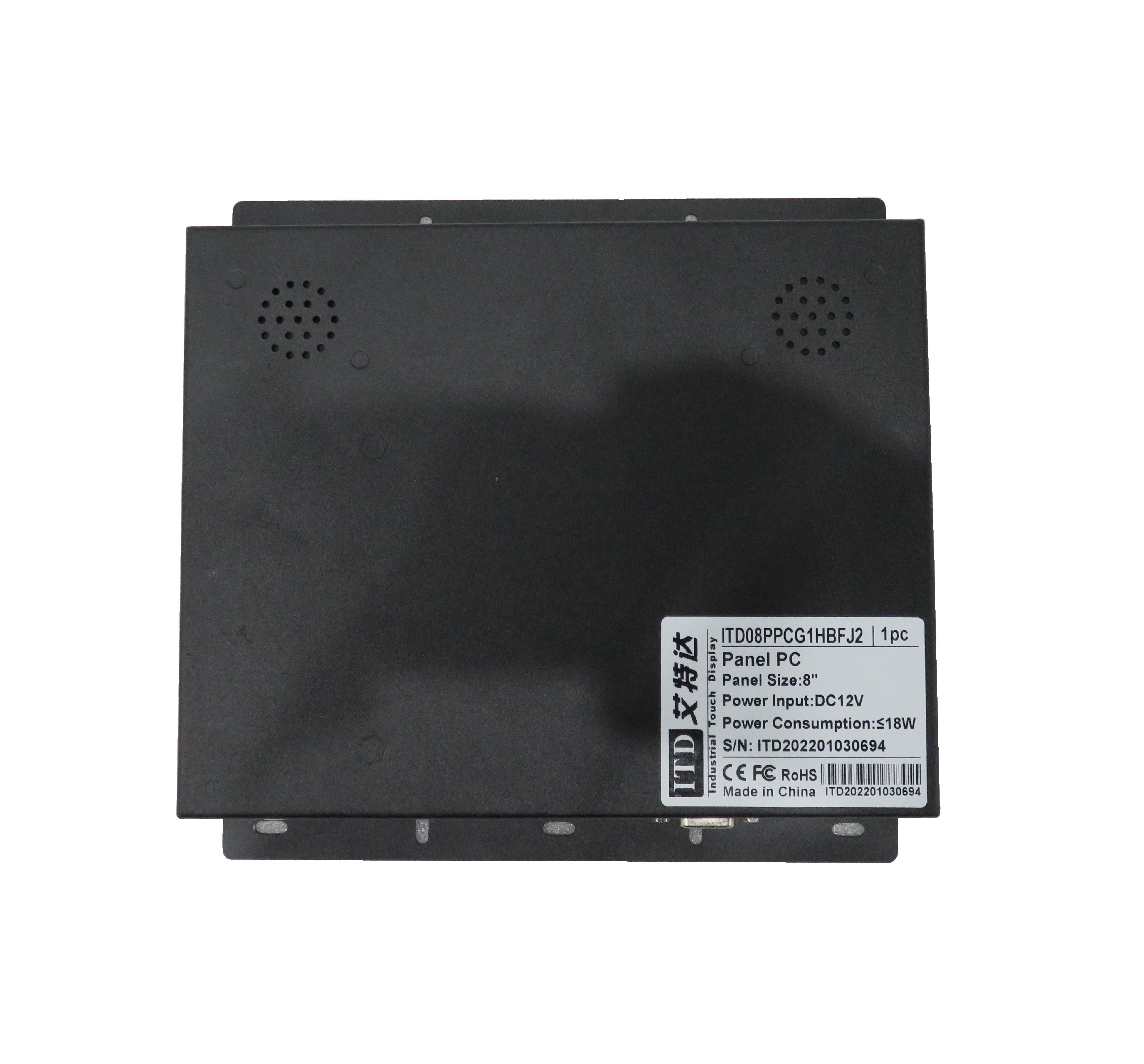

1024x768 350nits Open Frame Panel PC ARM Based RK3288 Linux Ubuntu 18.04

  • 1024x768 350nits Open Frame Panel PC ARM Based RK3288 Linux Ubuntu 18.04
  • 1024x768 350nits Open Frame Panel PC ARM Based RK3288 Linux Ubuntu 18.04
  • 1024x768 350nits Open Frame Panel PC ARM Based RK3288 Linux Ubuntu 18.04
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD10PPCT5FJ2
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 15-20 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Native Resolution 1024x768 Brightness 350nits
Processor ARM RK3288, RK3399 Android 9/10/11,Ubuntu Touch Panel Capacitive
Optional 4G, BT, WIFI I/O USB, COM, HDMI, Audio, LAN, DC 12V Input
Operating Temperature -20~70℃ Storage Temperature -20~70℃
Material Steel Housing MTBF 50000hours
High Light

1024x768 Open Frame Panel PC

,

350nits Open Frame Panel PC

,

Linux Android Industrial Panel Pc
Leave a Message
Product Description

10" open frame panel PC ARM based RK3288 Androd 9 Linux Ubuntu 18.04



FEATURES

• Flexible, reliable, and ruggedized for open platform HMI/SCADA
• Energy-efficient and fan-less HMI Systems
• Low-cost solution with high cost-efficient
• All steel construction designed for harsh and industrial environments

• Flexible, easy configuration and integration
• CE, FCC, RoHS Compliance

OPTIONALS

• Anti-Glare / Anti-Reflective Tempered Glass • High Brightness, Optical Bonding
• Resistive, IR, SAW, PCAP, SLW • WIFI, 3G, 4G
• Web camera, Speakers, RFID, NFC, Fingerprint, QR Reader, Thermal printer, GPS etc. • DC9-36V input, AC100-240V input

DISPLAY

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 10.4”/4:3
Active Area/ Pixel Pitch 211.2(W) x 158.4(H)mm/0.297 × 0.20625mm
Native Resolution/ Colors 1024 x 768/262K/16.7M
Brightness/ Contrast 350cd/㎡/900:1
Response Time/ Viewing Angle(Typical) 16ms/75/75/75/75
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item Android Solution
CPU ARM Quad Core Cortex-A17, 1.8GHz
Chipset RK3288(RK3399 optional)
Memory 2GB; 4GB Optional
Storage 8GB: 16GB/32GB/64GB Optional
Graphics Supports max. 4K resolution
I/O 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB




LAN 1 x 10/100/1000Mbps Ethernet
OS Android 9, Linux Ubuntu 18.04

GENERAL

Power Input Voltage DC 12V 2.0
Operation/Power Saving 15~30W
Environment Considerations Operating Temperature -10~60℃ (-20~70℃ optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90%



1024x768 350nits Open Frame Panel PC ARM Based RK3288 Linux Ubuntu 18.04 0

1024x768 350nits Open Frame Panel PC ARM Based RK3288 Linux Ubuntu 18.04 1
