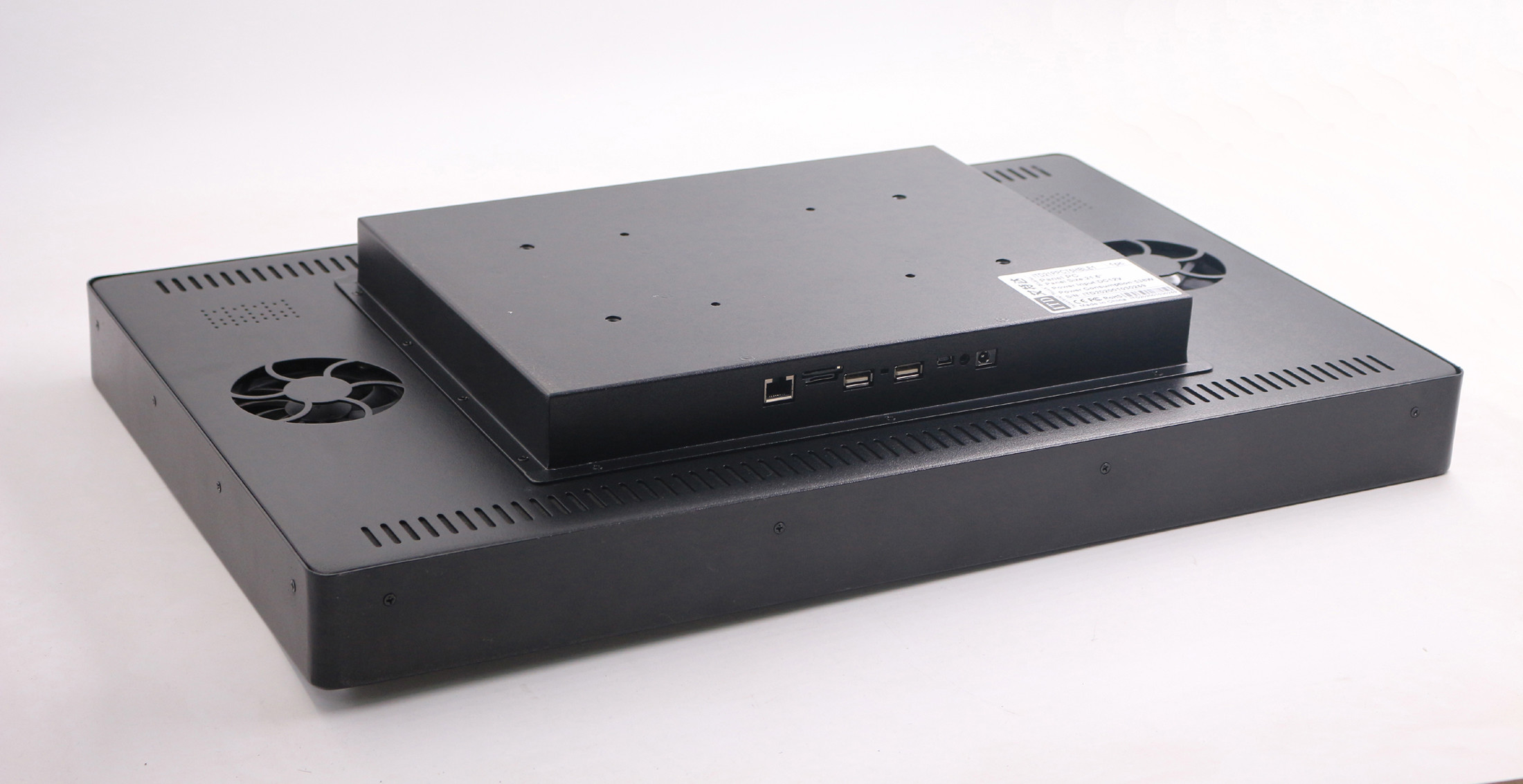

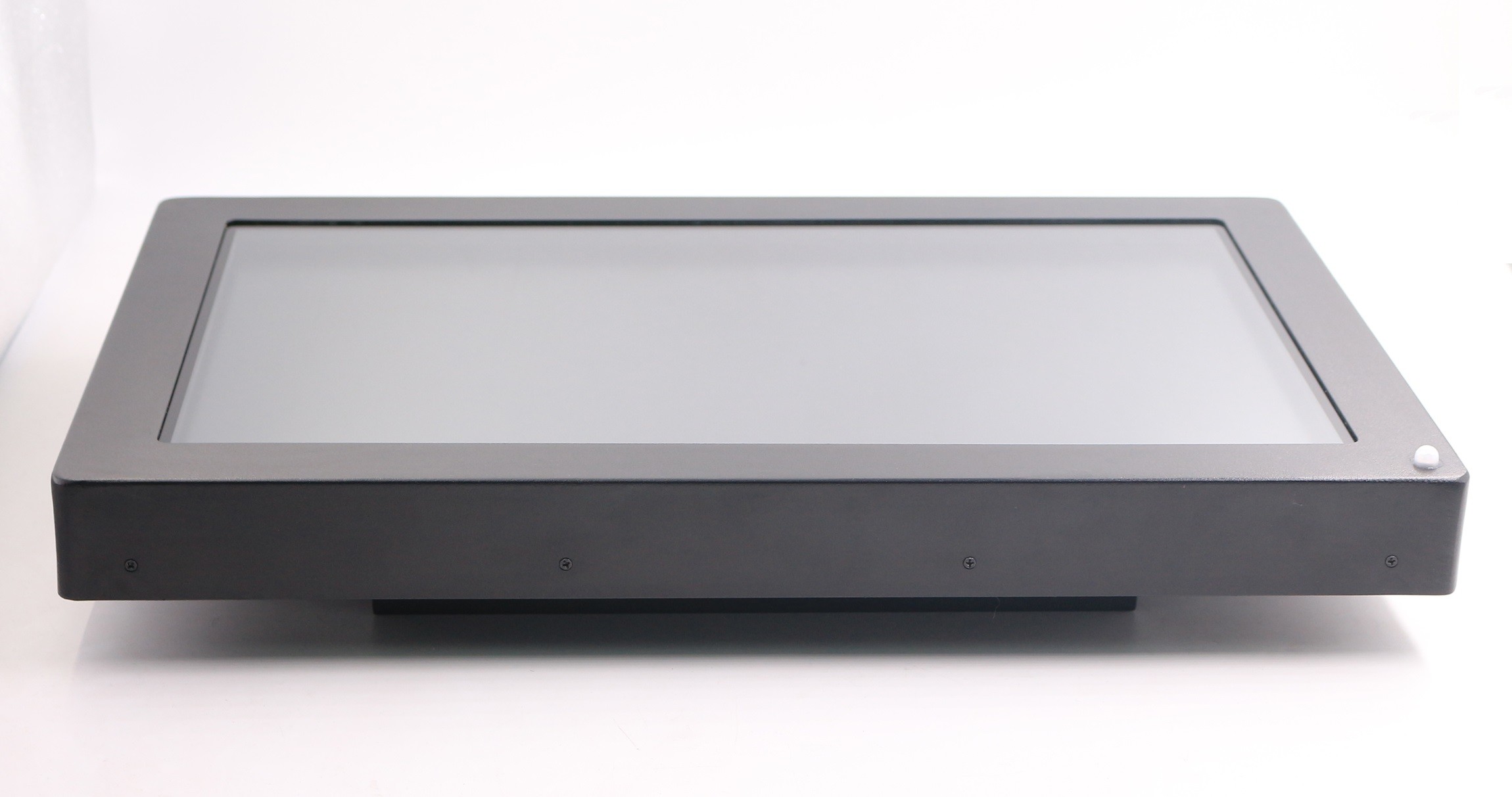

21.5" Outdoor Android Panel PC 1500nits Tni COM HDMI Steel Housing
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD21PPCT5LE1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 15-20 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1920×1080 | Brightness | 1500nits |
|---|---|---|---|
| Processor | ARM RK3288, RK3399 Android 9/10/11,Ubuntu | Touch Panel | Capacitive, PCAP |
| Optional | 4G, BT, WIFI, RFID/NFC | I/O | USB, COM, HDMI, Audio, LAN, DC 12V Input |
| Operating Temperature | -20~70℃ | Storage Temperature | -20~70℃ |
| Material | Steel Housing | MTBF | 50000hours |
| Highlight | 21.5" Outdoor Android Panel PC,COM HDMI Android Panel PC,1500nits Touch Screen Panel PC |
||
Product Description
1500nits Tni 105℃ 21.5inch outdoor Android touchscreen panel PC
| Model | ITD10PPCN1HBLE2 | ITD12PPCN1HBLE2 | ITD15PPCN1HBLE2 | ITD156PPCN1HBLE2 | ITD17PPCN1HBLE2 | ||
| Size | 10.4” (4:3) | 12.1” (4:3) | 15” (4:3) | 15.6” (16:9) | 17” (4:3) | ||
| Active Area | 211.2(W) x 158.4(H) | 246.0(H) x 184.5(V) | 304.128(H)x 228.096(V) | 246.0(H) x 184.5(V) | 337.920(H) x 270.336(V) | ||
| Contrast | 500:1 | 500:1 | 700:1 | 700:1 | 1000:1 | ||
| Resolution | 800 x 600 or 1024 x 768 | 800 x 600 or 1024 x 768 | 1024 x 768 | 1920 x 1080 | 1280 x 1024 | ||
| Brightness | 1000nits | 1000nits | 1000nits | 1000nits | 1000nits | ||
| Viewing Angles | 70/70/60/70 | 70/70/60/60 | 80/80/60/70 | 89/89/89/89 | 85/85/80/80 | ||
| Backlight | LED | LED | LED | LED | LED | ||
| Model | ITD173PPCN1HBLE2 | ITD18PPCN1HBLE2 | ITD19PPCN1HBLE2 | ITD21PPCN1HBLE2 | ITD24PPCN1HBLE2 | ||
| Size | 17.3” (16:9) | 18.5” (16:9) | 19” (4:3) | 21.5” (16:9) | 24” (16:9) | ||
| Active Area | 381.888(H) x 214.812(V) | 409.8(H) x 230.4(V) | 376.32(H) x 301.06(V) | 476.64(H) x 248.25(V) | 531.36(H) x 298.89(V) | ||
| Contrast | 400:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | ||
| Resolution | 1920 x 1080 | 1366 x 768 | 1280 x 1024 | 1920 x 1080 | 1920 x 1080 | ||
| Brightness | 1000nits | 1000nits | 1000nits | 1000nits | 1000nits | ||
| Viewing Angles | 70/70/60/60 | 85/85/80/80 | 85/85/80/80 | 89/89/89/89 | 89/89/89/89 | ||
| Backlight | LED | LED | LED | LED | LED | ||
| Model | ITD27PPCN1HBLE2 | ITD32PPCN1HBLE2 | ITD43PPCN1HBLE2 | ITD55PPCN1HBLE2 | ITD65PPCN1HBLE2 | ||
| Size | 27” (16:9) | 32” (16:9) | 42”/43” (16:9) | 55” (16:9) | 65” (16:9) | ||
| Active Area | 597.6(H)x 336.15(V) | 698.4(H) x 392.85(V) | 930.24(H) x 523.26(V) | 1213.6(H) x 684.4(V) | 1428.48(W) × 803.52(H) | ||
| Contrast | 1000:1 | 1000:1 | 1200:1 | 3000:1 | 4000:1 | ||
| Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | ||
| Brightness | 1000nits | 1000nits | 1000nits | 1000nits | 1000nits | ||
| Viewing Angles | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | ||
| Backlight | LED | LED | LED | LED | LED | ||
| SPECIFICATION | |||||||
|
System
|
CPU: ARM Quad Core RK3288 Cortex-A17, Main CPU frequency:1.8GHz GPU: Mali-T764 GPU SDRAM: 2G; 4G Optional Flash: 8G: 16G/32G/64G/128G Optional OS: Android 7.1/8; GPS/Bluetooth: Optional Video Decoder: 4K VP8 and 4K 10bits H265/H264 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC Photo Format: Supports JPG/BMP/GIF/TIFF/PNG |
||||||
| Input/Output |
1 × HDMI; 2 × USB Max. 6× USB; 1 × TF Card Support 8~128GB; 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E); WIFI included 1 × DC 12V 2.0; 3G/4G Optional; Com Port optional |
||||||
| Power | Input Voltage | External Power Supply DC 12V for 10.4”~24”; Internal Power Supply AC100~240V for 27”~65” | |||||
| Environment Considerations | Operating Temperature | -10~60℃ (-20~70℃ Optional); 0~50℃ for 24” and above | |||||
| Storage Temperature | -20~70℃ | ||||||
| Relative Humidity | 10%~90% (Non-Condensing) | ||||||
| Order Information | 1000nits Chassis Android Panel PC with Resistive Touch/ITD**PPCT1HBLE2 (below 24”) | ||||||
| 1000nits Chassis Android Panel PC with IR Touch/ITD**PPCT2HBLE2 | |||||||
| 1000nits Chassis Android Panel PC with PCAP Touch/ITD**PPCT5HBLE2 | |||||||
| 1000nits Chassis Android Panel PC with Tempered Glass/ITD**PPCG1HBLE2 | |||||||
| 1500nits Chassis Android Panel PC with Resistive Touch/ITD**PPCT1HBLE1 (below 24”) | |||||||
| 1500nits Chassis Android Panel PC with IR Touch/ITD**PPCT2HBLE1 | |||||||
| 1500nits Chassis Android Panel PC with PCAP Touch/ITD**PPCT5HBLE1 | |||||||
