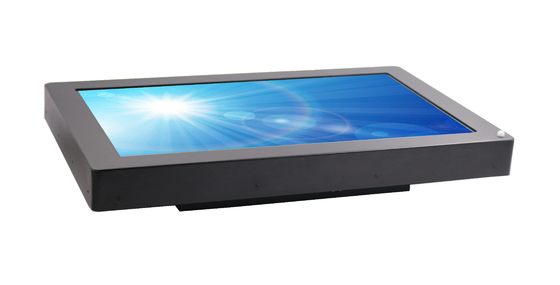

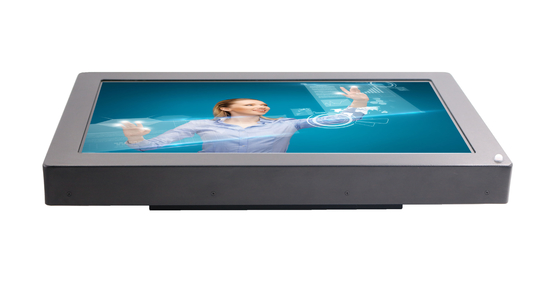

TPM 2.0 Fanless Touch Panel PC Intel I3 I5 I7 Windows 10 11 350nits PCAP IR

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITDxxPPCT5LIx
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 15-20 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Native Resolution 1024×768~1920×1080 Brightness 350nits
Processor Intel I3/i5/i7 5th, 6th, 7th, 8th Gen. Touch Panel Capacitive, PCAP, Restive, IR Touch
Optional 4G, BT, WIFI, RFID/NFC I/O USB, COM, HDMI, Audio, LAN, DC 12V Input
Operating Temperature -10~60℃, 20~70℃ Optional Storage Temperature -20~70℃
Material Chassis Steel Housing MTBF 50000hours
High Light

TPM 2.0 Fanless Touch Panel PC

,

350nits Fanless Touch Panel PC

,

PCAP IR Waterproof Panel Pc

Leave a Message
Product Description

fanless industrial touch panel PC Intel i3 i5 i7 Windows 10 11 TPM 2.0



Model ITD10PPCN1LI* ITD12PPCN1LI* ITD15PPCN1LI* ITD156PPCN1LI* ITD17PPCN1LI*
Size 10.4” (4:3) 12.1” (4:3) 15” (4:3) 15.6” (16:9) 17” (4:3)
Active Area 211.2(W) x 158.4(H) 246.0(H) x 184.5(V) 304.128(H)x 228.096(V) 246.0(H) x 184.5(V) 337.920(H) x 270.336(V)
Contrast 500:1 500:1 700:1 700:1 1000:1
Resolution 800 x 600 or 1024 x 768 800 x 600 or 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024
Brightness 350nits 350nits 250nits 300nits 250nits
Viewing Angles 70/70/60/70 70/70/60/70 80/80/60/70 89/89/89/89 85/85/80/80
Backlight LED LED LED LED LED
Model ITD173PPCN1LI* ITD18PPCN1LI* ITD19PPCN1LI* ITD21PPCN1LI* ITD24PPCN1LI*
Size 17.3” (16:9) 18.5” (16:9) 19” (4:3) 21.5” (16:9) 24” (16:9)
Active Area 381.888(H) x 214.812(V) 409.8(H) x 230.4(V) 376.32(H) x 301.06(V) 476.64(H) x 248.25(V) 531.36(H) x 298.89(V)
Contrast 400:1 1000:1 1000:1 1000:1 1000:1
Resolution 1920 x 1080 1366 x 768 1280 x 1024 1920 x 1080 1920 x 1080
Brightness 300nits 250nits 250nits 250nits 300nits
Viewing Angles 70/70/60/60 85/85/80/80 85/85/80/80 85/85/80/80 89/89/89/89
Backlight LED LED LED LED LED
Model ITD27PPCN1LI* ITD32PPCN1LI* ITD42PPCN1LI* ITD55PPCN1LI* ITD65PPCN1LI*
Size 27” (16:9) 32” (16:9) 42”/43” (16:9) 55” (16:9) 65” (16:9)
Active Area 597.6(H)x 336.15(V) 698.4(H) x 392.85(V) 930.24(H) x 523.26(V) 1213.6(H) x 684.4(V) 1428.48(W) × 803.52(H)
Contrast 1000:1 1000:1 1200:1 3000:1 4000:1
Resolution 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
Brightness 300nits 350nits 400nits 400nits 400nits
Viewing Angles 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89
Backlight LED LED LED LED LED
SPECIFICATION
System CPU Intel® Core i3/i5/i7 Processor
BIOS UEFI
Chipset Intel® HD Graphics (By CPU); Shared Memory
Memory 2 x SO-DIMM, DDR3 1333MHz Memory, 4GB, Max.16GB
Graphic Chipset CPU integrated graphics HD and support 1080p
Storage 64GB SSD or 500GB HDD
LAN 1 x 10/100/1000Mbps Ethernet
Input/Output Serial Ports 1 x COM
USB Ports 4 xUSB
VGA Port 1 x VGA
HDMI Port 1x HDMI Port
Audio Card Line-In/Line-Out/Speaker MIC IN
Power Input Voltage External Power Supply DC 12V for 10.1”~24”; Internal Power Supply AC100~240V for 27”~65”
Operation/Power Saving 30-220W
Environment Considerations Operating Temperature -10~60℃ (-20~70℃ Optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90% (Non Condensing)
OS Support Windows 7/ Windows XP/ Windows 8/ Windows 10/Linux
Mounting Method VESA, Side mounting brackets(Optional)
Order Information Chassis Panel PC i3 with Resistive Touch/ITD**PPCT1LI3
Chassis Panel PC i3 with IR Touch/ITD**PPCT2LI3
Chassis Panel PC i3 with PCAP Touch/ITD**PPCT5LI3
Chassis Panel PC i5 with Resistive Touch/ITD**PPCT1LI5
Chassis Panel PC i5 with IR Touch/ITD**PPCT2LI5
Chassis Panel PC i5 with PCAP Touch/ITD**PPCT5LI5
Chassis Panel PC i7 with Resistive Touch/ITD**PPCT1LI7
Chassis Panel PC i7 with IR Touch/ITD**PPCT2LI7
Chassis Panel PC i7 with PCAP Touch/ITD**PPCT5LI7


Note: The exterior design for each size is subject to its drawings.
