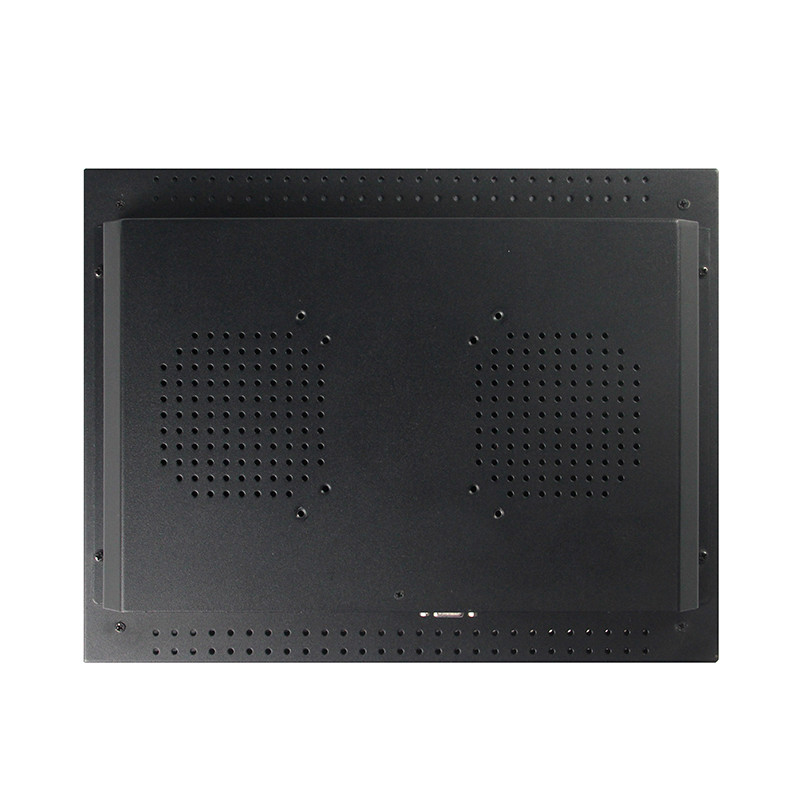

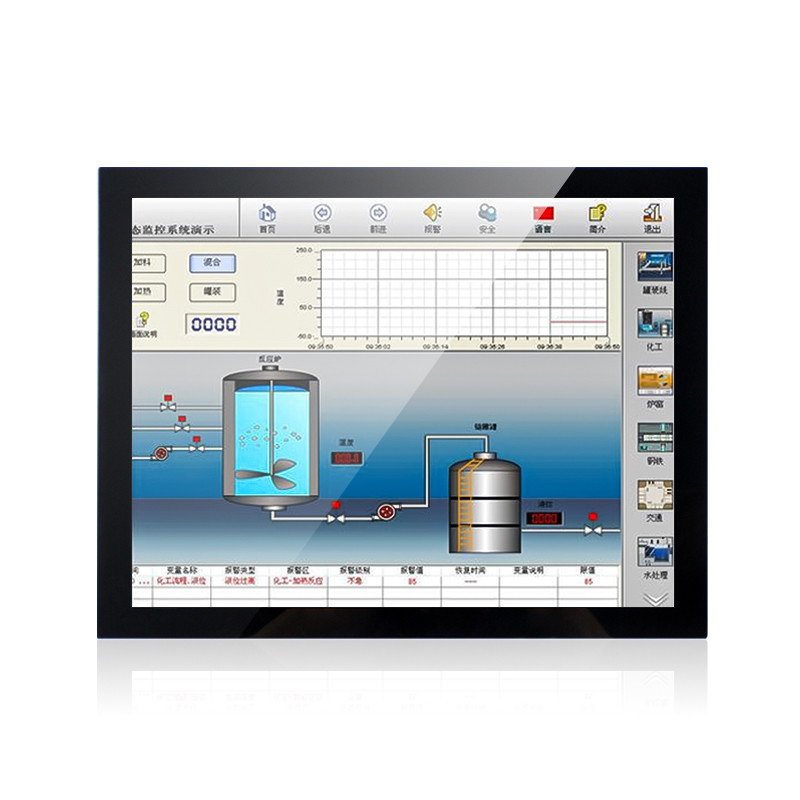

RFID NFC Touch Panel PC 350nits 30W PCAP For Visitor Management
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD15PPCT5KJ |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 5-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1024×768 | Brightness | 350nits |
|---|---|---|---|
| Processor | Intel J1900, Intel Z8350, ARM, Intel I3/i5/i7 Optional | Touch Panel | Capacitive, PCAP Touch Screen |
| OS | Windows 10, Linux, Android | I/O | USB, COM, HDMI, Audio, LAN, DC 12V Input |
| Operating Temperature | -10~60℃ | Peripherals | RFID, NFC, Webcamera, Optional |
| Material | Steel Housing | MTBF | 50000hours |
| Applications | Visitor Management | ||
| High Light | RFID NFC Touch Panel PC,30W Touch Panel PC,350nits PCAP Touch Screen PC |
||
Product Description
15 panel pc with optional RFID NFC reader PCAP touch screen for visitor management
| Panel | Cell Type/Glass Surface | TFT |
| Size | 15” | |
| Aspect Ratio | 4:3 | |
| Active Area | 304.128(H)x 228.096(V)mm | |
| Pixel Pitch | 0.297 × 0.297mm | |
| Native Resolution | 1024 × 768 | |
| Colors | 16.2M | |
| Brightness | 250nits | |
| Contrast | 700:1 | |
| Response Time | 5ms | |
| Viewing Angle(Typical) | 80/80/60/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime | |
| System | CPU | Intel® Celeron J1900 2.0GHz Processor |
| BIOS | AMI | |
| Chipset | Intel Bay Trail SoC | |
| Memory |
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
|
| Graphic Chipset | Intel HD Graphics (By CPU) | |
| Storage | 1 x SATA, 1 x mSATA, Default to 64GB SSD | |
| LAN | 1 x 10/100/1000Mbps Ethernet | |
| Input/Output | Serial Ports | 1 x COM |
| USB Ports | 4 X USB | |
| VGA Port | 1 x VGA Output | |
| HDMI Port | 1x HDMI Output | |
| Audio Card |
with Realtek ALC662 Line-Out/ MIC IN |
|
| Power | Input Voltage | DC 12V |
| Operation/Power Saving | 30W | |
| Environment Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90%(Non Condensing) | |
| OS Support | Windows 7/ Windows XP/ Windows 8/ Linux/Windows 10 | |
| Mounting Method | VESA, Side Mounting Brackets | |
| Accessories | Power cable, Motherboard CD driver, Screws | |
| Order Information | 15” Zero-Bezel PCAP Touch Panel PC with J1900/ITD15PPCT5KJ | |
| 15” Zero-Bezel Non Touch Panel PC with Intel J1900/ITD15PPCG1KJ | ||
