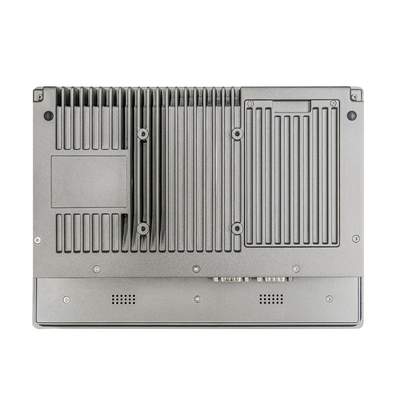

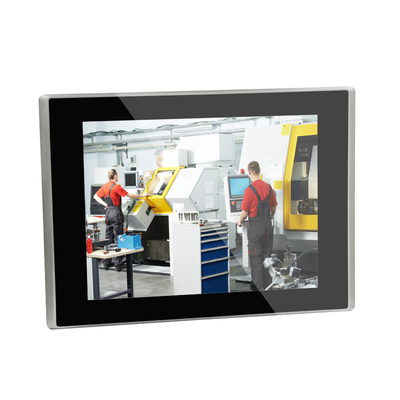

10 Inch Touch Panel PC Windows 10 IoT Fanless Industrial Computer Intel I5-4200U

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD10PPCT5B-xxxx
Minimum Order Quantity 1pcs
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 5-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month
Product Details
Native Resolution 1024×768 Brightness 350nits 1000nits Optional
Processor Intel J1900, Intel I5-4200U, Intel I7-4500U Touch Panel PCAP, Restive
Optional 4G, BT, WIFI, 14bit GPIO I/O USB, COM, HDMI, Audio, LAN, DC 9-36V
Operating Temperature -20~60℃, 20~70℃ Optional MTBF 50000hours
OS Windows 10 IoT
High Light

Windows 10 IoT Touch Panel PC

,

i5-4200U Touch Panel PC

,

fanless 10 inch industrial panel pc

Leave a Message
Product Description

10 panel pc Windows 10 IoT fanless industrial computer Intel i5-4200U



FEATURES

  • Onboard Intel J1900/4th Iintel Core i3/i5/i7 CPU
  • Onboard DDR3L 4GB Memory / Optional SODIMM SKU
  • Onboard DDR3L 4GB Memory / Optional SODIMM SKU
  • LCD+HDMI Output, Support Dual view/Simultaneous display
  • Fanless Operation
  • IP65 Front Bezel
  • Wide DC Support 9 ~ 36V
  • Windows 10 IoT Supported
Industrial HMI Touch Panel PC

Model Name ITD10PPCT5B-xxxx
IP Rating IP65 Front Panel

PC Systems Options

X86 Windows Based
CPU: Intel? Celeron J1900 2.0GHz

Chipset: Intel Bay Trail SoC
Memory: DDR3L SODIMM SKU, Up to 8GB
Storage: 1×mSATA, 1×SATA, 1×M.2 ( not available on J1900 CPU )
1 × HDMI, 2×GbE RJ45 Intel? i211
3 × USB2.0 , 1 × USB3.0 , 1×USB2.0 dongle
2 × DB-9 COM1&COM2,RS-232/422/485
2 × 3-wire COM3&COM4 RS-232/485 with terminal block
2 × 3-wire COM5&COM6 RS-232 with terminal block
1 × Audio Out, 1×Line Out, 2 x 8Ω 1W Audio AMPout
1 × A T/ATX switch, 1 × 14 bit GPIO (Optional), 1 × Remote switch with terminal block
Expansion: Mini-PCIe×1 full size with SIM Card for 3G/4G
Mini-PCIe×1 half size for WIFI/BLT
X86 Windows Based
CPU: Intel? 4th 6th/7/8th Gen.Core i3/i5/i7 CPU
Chipset: Intel SoC
Memory: DDR3/4L SODIMM SKU, Up to 16GB
Storage: 1×mSATA, 1×SATA, 1×M.2 ( not available on J1900 CPU )
1 × HDMI, 2×GbE RJ45 Intel? i211
3 × USB2.0 , 1× USB3.0 , 1×USB2.0 dongle
2 × DB-9 COM1&COM2,RS-232/422/485
2 × 3-wire COM3&COM4 RS-232/485 with terminal block
2 × 3-wire COM5&COM6 RS-232 with terminal block
1 × Audio Out, 1×Line Out, 2 × 8Ω 1W Audio AMPout
1 × A T/ATX switch, 1 × 14 bit GPIO (Optional), 1 × Remote switch with terminal block
Expansion: Mini-PCIe×1 full size with SIM Card for 3G/4G
Mini-PCIe×1 half size for WIFI/BLT

LCD Panel

Screen Diagonal (Inch) 10.4”
Display Active Screen Size (cm) 211.2(H)×158.4(V)
Aspect Ratio 4:3
Physical Resolution 1024×768
Maximum Resolution Supported 1920×1080
Colors 16.2M
Brightness (cd/m2) 350nits
Contrast Ratio 700:1
View Angels 80/80/80/80
Backlight/Backlight Lifetime LED Backlight with 50000Hours’Lifetime

Touch Panel

Touch Options Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel
Touch Drivers Windows 7/8/10, Linux, Android, Mac
