Embedded Mounting 17inch Pc Panel Touch Screen Die Casting For Automation

  • Embedded Mounting 17inch Pc Panel Touch Screen Die Casting For Automation
  • Embedded Mounting 17inch Pc Panel Touch Screen Die Casting For Automation
  • Embedded Mounting 17inch Pc Panel Touch Screen Die Casting For Automation
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD17PPCT5B-xxxx
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Native Resolution 1280×1024 Brightness 350nits, 1000nits/1500nits Optional
Processor Intel J1900, Intel J4125, Intel I3/i5/i7 4th~11th Gen. Touch Panel PCAP, Resitive
IP65 NEMA4 IP65 Front Rated I/O USB, RS232/422/485, HDMI, Audio, Dual LAN, DC 9-36V
Operating Temperature -20~60℃, 20~70℃ Optional MTBF 50000hours
Mounting Embedded Mounting, VESA Mounting Housing Aluminum Die-casting
Application Automation
High Light

NEMA4 IP65 pc panel touch screen

,

automation 17inch pc panel touch screen

,

350nits Windows PC Touch Screen
Leave a Message
Product Description

pc panel touch screen 17" embedded mounting die-casting for automation



FEATURES

  • Onboard Intel J1900, Intel J4125, Intel i3/i5/i7 4th~11th gen.
  • Anti-Shock and Vibriation
  • Fully Aluminum Die-Casting Housing
  • LCD+HDMI Output, Support Dual view/Simultaneous display
  • Fanless Operation
  • IP65 Front Bezel
  • Wide DC Support 9 ~ 36V
  • Embedded Mounting Supported

Industrial HMI Touch Panel PC

Model Name ITD17PPCT5B-xxxx
IP Rating IP65 Front Panel

PC Systems Options

X86 Windows Based
CPU: Intel? Celeron J1900 2.0GHz
Chipset: Intel Bay Trail SoC
Memory: DDR3L SODIMM SKU, Up to 8GB
Storage: 1×mSATA, 1×SATA, 1×M.2 ( not available on J1900 CPU )
1 × HDMI, 2×GbE RJ45 Intel? i211
3 × USB2.0 , 1×USB3.0 , 1×USB2.0 dongle
2 × DB-9 COM1&COM2,RS-232/422/485
2 × 3-wire COM3&COM4 RS-232/485 with terminal block
2 × 3-wire COM5&COM6 RS-232 with terminal block
1 × Audio Out, 1×Line Out, 2×8Ω 1W Audio AMPout
1 × A T/ATX switch, 1×14 bit GPIO (Optional), 1×Remote switch with terminal block
Expansion: Mini-PCIe×1 full size with SIM Card for 3G/4G
Mini-PCIe×1 half size for WIFI/BLT
X86 Windows Based
CPU: Intel? 4th 6th/7/8th Gen. Core i3/i5/i7 CPU
Chipset: Intel SoC
Memory: DDR4L SODIMM SKU, Up to 16GB/32GB
Storage: 1×mSATA, 1×SATA, 1×M.2 ( not available on J1900 CPU )
1 × HDMI, 2×GbE RJ45 Intel? i211
3 × USB2.0 , 1×USB3.0 , 1×USB2.0 dongle
2 × DB-9 COM1&COM2,RS-232/422/485
2 × 3-wire COM3&COM4 RS-232/485 with terminal block
2 × 3-wire COM5&COM6 RS-232 with terminal block
1 × Audio Out, 1×Line Out, 2×8Ω 1W Audio AMPout
1 × A T/ATX switch, 1×14 bit GPIO (Optional), 1×Remote switch with terminal block
Expansion: Mini-PCIe×1 full size with SIM Card for 3G/4G
Mini-PCIe×1 half size for WIFI/BLT

LCD Panel

Screen Diagonal (Inch) 17”
Display Active Screen Size (cm) 337.920(H) ×270.336(V)
Aspect Ratio 4:3
Physical Resolution 1280×1024
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m2) 250nits
Contrast Ratio 1000:1
View Angels 85/85/80/80
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Options Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel
Touch Drivers Windows 7/8/10, Linux, Android, Mac

Operation

Operating Temperature Range -20~60°C
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input DC 9-36V with 3-pin terminal block
Power Consumption 45W

Order Information

17” Industrial HMI PCAP Touch Panel PC with J1900 ITD17PPCT5B-J1900
17” Industrial HMI Resistive Touch Panel PC with J1900 ITD17PPCT1B-J1900
17” Industrial HMI PCAP Touch Panel PC with i5-4200U ITD17PPCT5B-i5-4200U
17” Industrial HMI Resistive Touch Panel PC with i5-4200U ITD17PPCT1B- i5-4200U
17” Industrial HMI PCAP Touch Panel PC with i5-6360U ITD17PPCT5B-i5-6360U
17” Industrial HMI Resistive Touch Panel PC with i5-6360U ITD17PPCT1B-i5-6360U
17” Industrial HMI PCAP Touch Panel PC with i5-7200U ITD17PPCT5B-i5-7200U
17” Industrial HMI Resistive Touch Panel PC with i5-7200U ITD17PPCT1B-i5-7200U
17” Industrial HMI PCAP Touch Panel PC with i5-8250U ITD17PPCT5B-i5-8250U
17” Industrial HMI Resistive Touch Panel PC with i5-8250U ITD17PPCT1B-i5-8250U
17” Industrial HMI PCAP Touch Panel PC with i7-4500U ITD17PPCT5B-i7-4500U
17” Industrial HMI Resistive Touch Panel PC with i7-4500U ITD17PPCT1B-i7-4500U
17” Industrial HMI PCAP Touch Panel PC with i7-6500U ITD17PPCT5B-i7-6500U
17” Industrial HMI Resistive Touch Panel PC with i7-6500U ITD17PPCT1B-i7-6500U
17” Industrial HMI PCAP Touch Panel PC with i7-7500U ITD17PPCT5B-i7-7500U
17” Industrial HMI Resistive Touch Panel PC with i7-7500U ITD17PPCT1B-i7-7500U
17” Industrial HMI PCAP Touch Panel PC with i7-8550U ITD17PPCT5B-i7-8550U
17” Industrial HMI Resistive Touch Panel PC with i7-8550U ITD17PPCT1B-i7-8550U

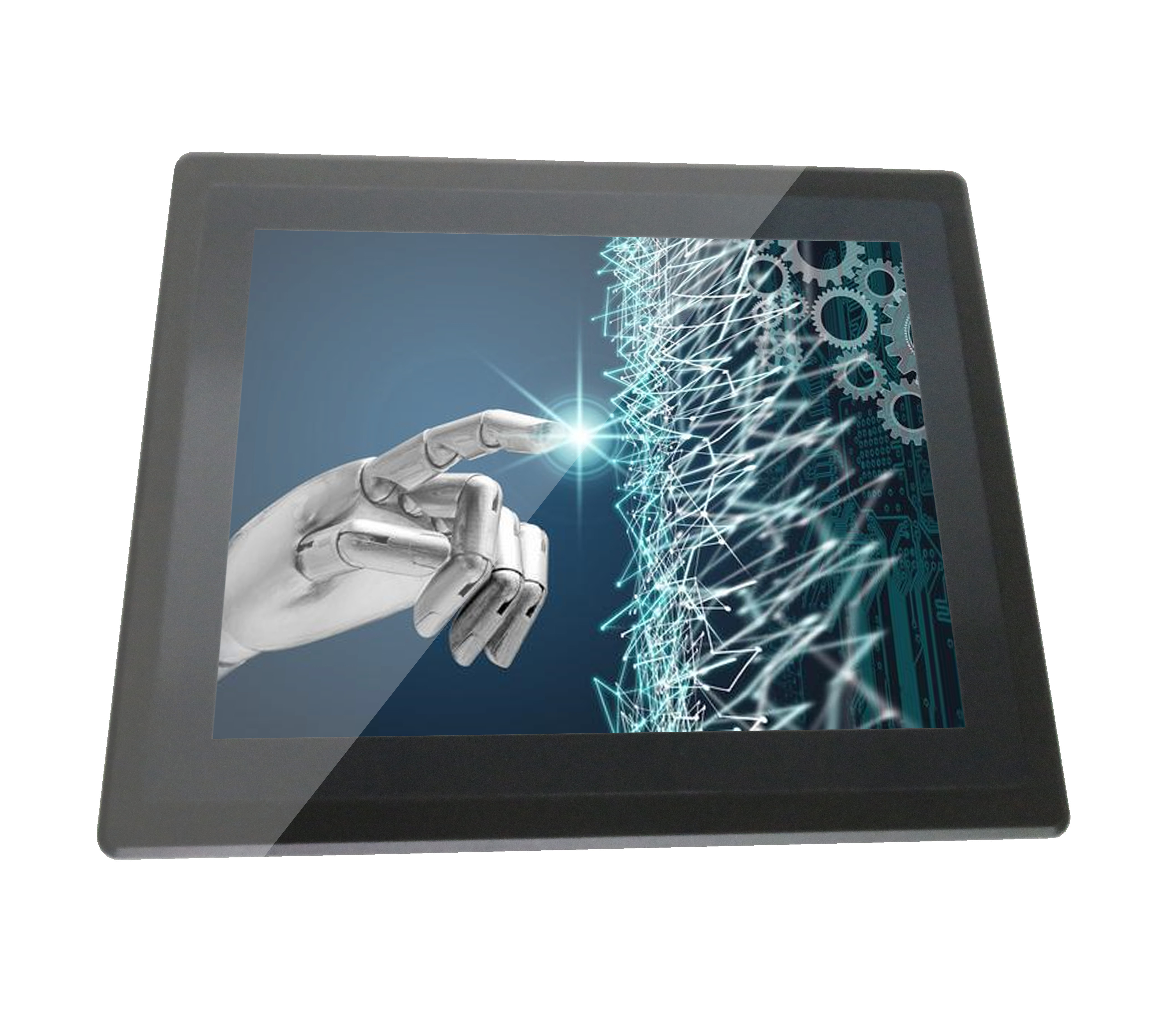

Embedded Mounting 17inch Pc Panel Touch Screen Die Casting For Automation 0

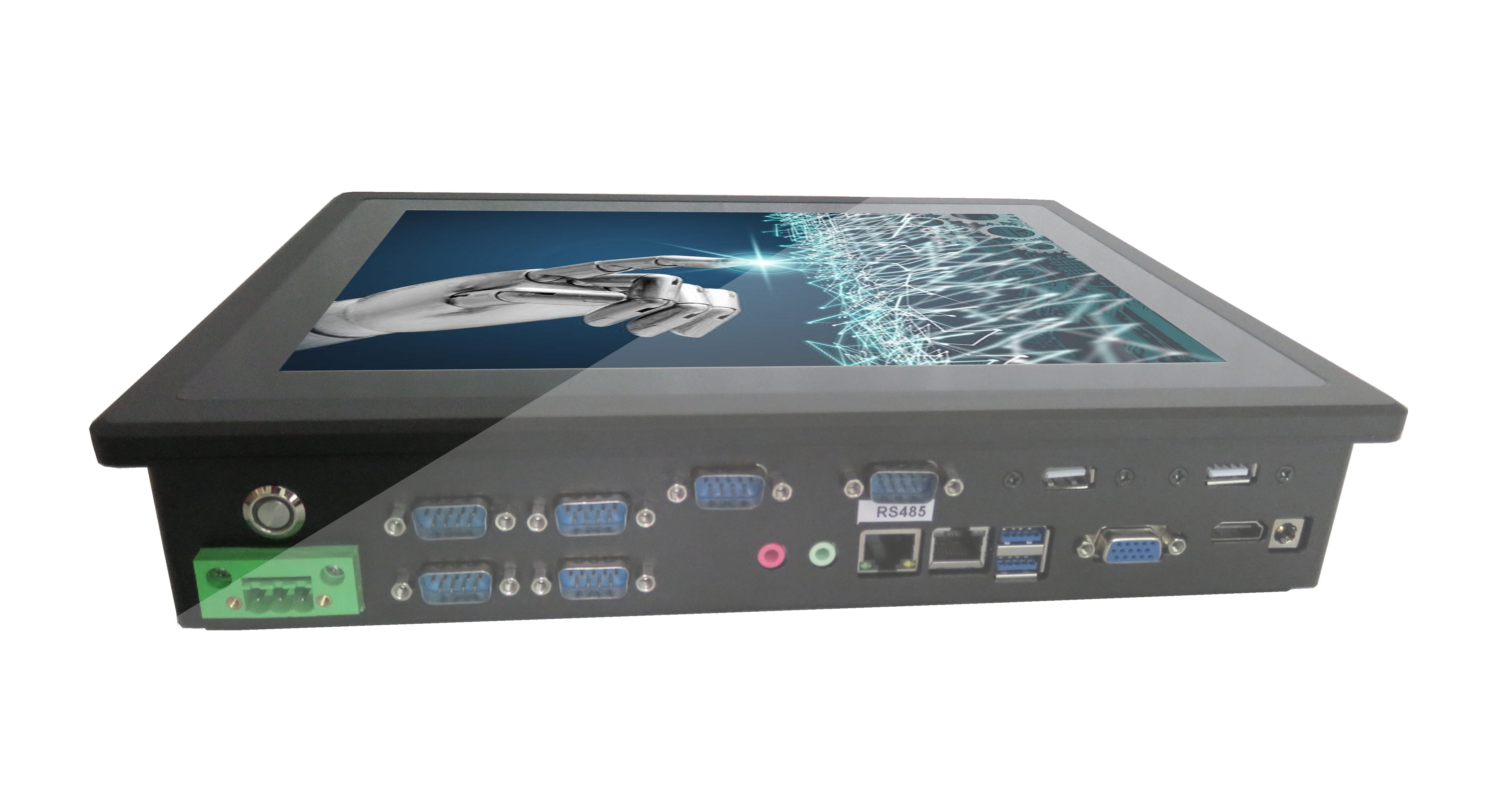

Embedded Mounting 17inch Pc Panel Touch Screen Die Casting For Automation 1
