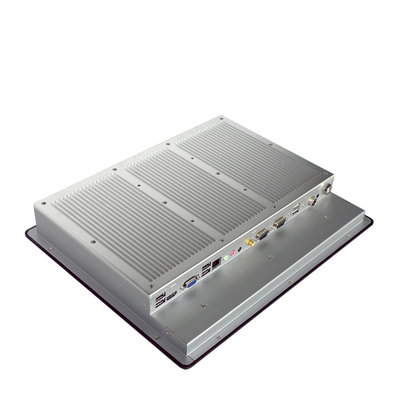

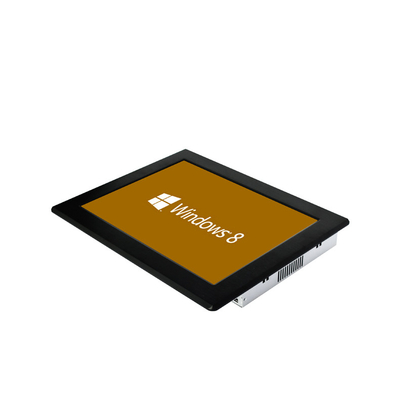

All In One Touch Screen PC 15 Inch Panel PC PCAP Resitive For Warehouse Logistics
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD15PPCT5xxxx |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 15 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1024×768 | Brightness | 1000nits, 350nits, 1500nits Optional |
|---|---|---|---|
| Processor | Intel J1900, Intel J4125, Intel I3/i5/i7 | Touch Panel | Multi Touch Screen PCAP, Resitive |
| IP65 | NEMA4 IP65 Front Rated | I/O | USB, RS232/422/485, HDMI, Audio, Dual LAN, DC 9-36V |
| Operating Temperature | -20~60℃, 20~70℃ Optional | MTBF | 50000hours |
| Mounting | Panel Mount, VESA Mounting | OS | Windows 10 IoT, Linux |
| Application | Automation, Warehouse&Logistics | ||
| High Light | 1000nits Resitive 15 inch panel pc,PCAP Resitive 15 inch panel pc,all in one touch screen pc 15 inch |
||
Product Description
15 panel pc multi touch screen Linux industrial AIO computer for Warehouse Logistics
APPLICATIONS
- Automation
- Food&Hygienic Industrial
- Warehouse&Logistics
- Healthcare
- Heavy Duty
- Robots Controller
- Energy&Utilities
- Marine
- Metals and Mining
- Public Safety
- Defence
- Kiosks
- Transportation
| System | CPU | Intel® Celeron J1900 2.0GHz Processor |
| Memory | 2GB, 4GB optional | |
| Chipset | Inter Valley View SSA-Cunit | |
| HDD | 320GB SATA or 32GB SSD | |
| LAN | 1 x 10/100/1000Mbps Ethernet | |
| Input / Output | Serial Ports | 2 x COM |
| USB Ports | 4 X USB | |
| HDMI Port | 1 X HDMI | |
| VGA Port | 1 x VGA | |
| LPT Slot | N/A | |
| Audio | MIC-IN, LINE-OUT | |
| Panel | Cell Type/Glass Surface | TFT LCD |
| Aspect Ratio/Size | 15” 4:3 | |
| Active Area/Pixel Pitch | 304.1(H) x 228.1(V)/0.297mm | |
| Native Resolution/Colors | 1024 x 768 /16.2M | |
| Brightness/Contrast | 1000nits/700:1 | |
| Viewing Angle(Typical) | 80/80/60/80 | |
|
Synchronization Range Horizontal/Vertical |
31.5~60.0KHz/60~75Hz | |
| Light Source | LED Backlight with 50000Hours’Lifetime | |
| Convenient Features | Backlight adjustment, Plug & Play | |
| Power | Input Voltage | External power supply with universal / Auto-Sensing, DC 12V |
| Operation/Power Saving | 40W | |
| Environment Considerations | Operating Temperature | -10~60℃ (20~70℃ Optional) |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90% (non condensing) | |
| OS Support | Windows 7/ 8/10, Windows Embedded, Linux, Win CE | |
| Touch Panel/Interface | Resistive Touch Panel | |
| Order Information | 15”Industrial panel PC 1000nits with IR touch/ ITD15PPCT2HBJ2 | |
| 15”Industrial panel PC 1000nits with SAW touch/ ITD15PPCT3HBJ2 | ||
| 15”Industrial panel PC 1000nits with PCT touch/ ITD15PPCT5HBJ2 | ||
| 15”Industrial panel PC 1000nits with tempered glass/ ITD15PPCG1HBJ2 | ||
| 15”Industrial panel PC 1000nits without touch/ ITD15PPCN1HBJ2 | ||
