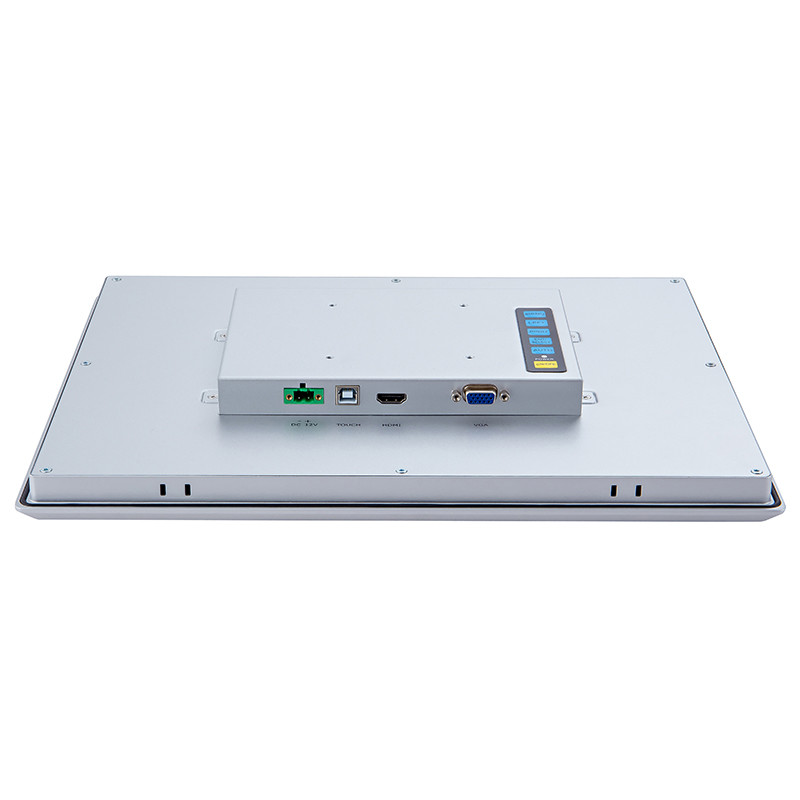

Embedded Mounting Industrial PC Monitor 17" Capacitive Touch Screen Vandal Proof
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Steel Chassis And Aluminum Front Bezel | Color | Black Or Silver |
|---|---|---|---|
| Mounting Type | Embedded Mounting, VESA Mounting | MTBF | 50000Hours |
| Operating Temperature | -10~60℃(-20~70℃ Optional) | Touch Screen | Capacitive Touch Screen |
| 24/7/365 Use | Supported | Resolution | 1280*1024 |
| Aspect Ratio | 5:4 | Brightness | 350nits |
| High Light | Vandal Proof industrial pc monitor,17'' TFT industrial pc monitor,Capacitive Touch industrial lcd touch screen |
||
Product Description
industrial pc monitor 17" capacitive touch screen vandal proof embedded mounting
| Article | industrial pc monitor 17" |
| IP | IP65(for front panel only) |
| Cut-Out Dimensions | 397×327.6mm |
| Aluminum Front Bezel Thickness | 3mm (6mm, 10mm optional) |
| Weight(N.W/G.W) | 5.2Kg / 5.8Kg (Approx.) |
| LCD Type | 17＂Active matrix TFT-LCD |
| Video Input | VGA and DVI-I, HDMI, Audio |
| Recommend Resolution | 1280×1024@60Hz,75Hz |
| OSD controls | Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Input | DC 12V Power Plug; DC 9-36V input optional |
| Power Consumption | 20W |
| Mount Interface |
1)VESA 75×75/100×100mm 2)Panel Mounting via Clamps |
| Regular Warranty | 1 Year for TFT panels; 2 Years for others. |
| Agency Approval | FCC, CE, RoHS Certified |
2. 2 LCD Specification
| Active Area(mm) | 337.920(H)×270.336(V) |
| Resolution | 1280×1024 |
| Pixel Pitch(mm) | 0.264×0.264 |
| Nominal Input Voltage VDD | +5V(Typ) |
| Viewing angle (L/R/T/B) | 85°/85°/80°/80° |
| Contrast | 1000:1 |
| Luminance(cd/m2) | 250 |
| Response Time(Rising/Falling) | 8s |
| Support Color | 16.7M |
| Screen Scanning | 60Hz |
| Backlight MTBF(hr) | 50000h |
2.3 Touch Screen Specification
2.3.1 Projected Capacitive Touch Screen
| Type | Projected Capacitive Touch Screen |
| Surface Hardness | 7H |
| Light Transmission | 85%±5% |
| Touch Life Cycle | 50 million times |
| Touch Response time | 5ms |
| Touch System Interface | USB A type (USB B type optional) |
| Operating System Support |
Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above Drivers for Windows CE/XP, Mac, Android |
2.3.1 5 Wires Resistive Touch Screen
| Type | 5 Wires Resistive Touch Screen |
| Surface Hardness | 3H |
| Surface Treatment | Anti-Glare |
| Light Transmission | ≥78% |
| Finger Touch Life | 35 million times |
| Touch Response time | ≤15ms |
| Touch System Interface | USB B type (A type optional) |
| Operating System Support | Drivers for Windows CE/XP/7/8/10,Linux, Mac, Android |
2.4 External AC Power Adapter
| Output | 12V DC/4A |
| Input | 150-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
2.5 Environment
| Operating Temp. | -10～60°C (-20～70°C optional) |
| Storage Temp. | -20～70°C |
| Operating RH: | 20%～80% |
| Storage RH: | 15%～90% |
