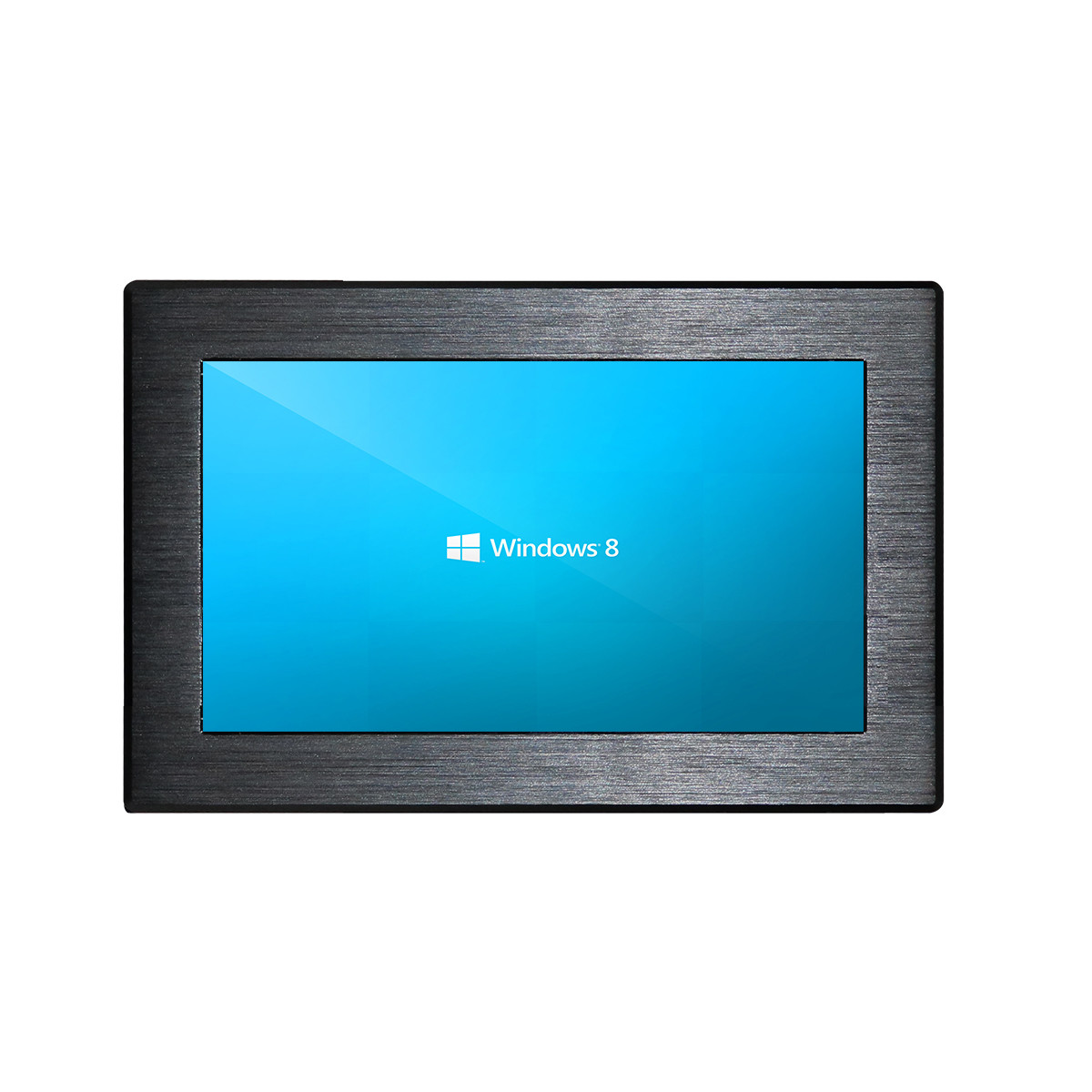

IP65 Front Small LCD Computer Monitor 7 Inch 1000nits Sunlight Readable Display

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD07PMTxHBX32
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Steel Chassis And Aluminum Front Bezel Brightness 1000nits Sunlight Readable
I/O VGA, HDMI Input, USB Port, DC12V Input MTBF 50000Hours
Operating Temperature -10~60℃(-20~70℃ Optional) Touch Screen Capacitive Touch Screen Or Resistive Touch
24/7/365 Use Supported Resolution 1024*600
Aspect Ratio 16:9
High Light

sunlight readable small lcd computer monitor

,

IP65 front small lcd computer monitor

,

1000nits sunlight readable display

Leave a Message
Product Description

small lcd computer monitor 7 inch 1000nits sunlight readable display



Article 7” High Brightness Flat Bezel Panel Mount LCD Monitor
IP IP65(for front panel only)
Cut-Out Dimensions 190.57×126.1mm
Aluminum Front Bezel Thickness 3mm (6mm, 10mm optional)
Weight(N.W/G.W) 1.5Kg / 1.8Kg (Approx.)
LCD Type 7"Active matrix TFT-LCD
Video Input VGA and DVI-I(optional), HDMI, Audio
Recommend Resolution 1024×600@60Hz,75Hz
OSD controls Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Input DC 12V Power Plug; DC 9-36V input optional
Power Consumption 8W
Mount Interface

1)VESA 75×75mm

2)Panel Mounting via Clamps

Regular Warranty 1 Year for TFT panels; 2 Years for others.
Agency Approval FCC,CE,RoHS Certified



2. 2 LCD Specification

Active Area(mm) 154.214(H) ×85.92(V)
Resolution 1024×600
Dot Pitch(mm) 0.1506×0.1432 (H×V)
Nominal Input Voltage VDD +3.3V(Typ)
Viewing angle (L/R/T/B) 75°/75°/70°/75°
Contrast 800:1
Luminance(cd/m2) 1000
Response Time(Rising/Falling) 10/15ms
Support Color 262K/16.7M
Screen Scanning 60Hz
Backlight MTBF(hr) 50000h

2.3 Touch Screen Specification

2.3.1 Projected Capacitive Touch Screen

Type Projected Capacitive Touch Screen
Resolution 4096×4096
Light Transmission 85%±5%
Touch Life Cycle 50 millions times
Touch Response time 5ms
Touch System Interface USB A type (USB B type optional)
Operating System Support

Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

Drivers for Windows CE/XP, Mac, Android

2.3.2 5 Wires Resistive Touch Screen

Type 5 Wires Resistive Touch Screen
Surface Hardness 3H
Surface Treatment Anti-Glare
Light Transmission ≥78%
Finger Touch Life 35 million times
Touch Response time ≤15ms
Touch System Interface USB B type (A type optional)
Operating System Support Drivers for Windows CE/XP/7/8/10,Linux, Mac, Android

2.4 External AC Power Adapter

Output 12V DC/3A
Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C

2.5 Environment

Operating Temp. -10~60°C (-20~70°C optional)
Storage Temp. -20~70°C
Operating RH: 20%~80%
Storage RH: 10%~90%
Anti-Vibration 5Hz-500Hz / 1Grms/3 Axis (optional)
Anti-Shock 15G, 15ms Duration (optional)
