350nits Small LCD Monitor 12.1 Inch Capacitive Touch Screen Flat Surface

Place of Origin China
Brand Name ITD
Certification CE, FCC, RoHS
Model Number ITD12OFT5Y1
Minimum Order Quantity 1pcs
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 3-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month
Product Details
Housing Material Aluminum Chassis , Flat Surface, Flange Design Color Black Or Silver
Mounting Type Flush Rear Mounting, VESA Mounting MTBF 50000Hours
Operating Temperature -10~60℃(-20~70℃ Optional) Touch Screen Capacitive Touch Screen Or Non Touch
I/O VGA, HDMI Inputs, DC 12V Input, USB-B Port Resolution 1024×768
Applications IoT, Automation,kiosks, Terminals, Etc. Brightness 350nits
High Light

350nits small lcd monitor

,

Capacitive Touch small lcd monitor

,

12.1 Inch capacitive touch screen

Leave a Message
Product Description

small lcd monitor 12.1 inch capacitive touch screen flat surface





Specifiction of capacitive touch screen monitor

Model ITD12OFT5Y1
IP IP65(for front panel only)
Outline Dimensions Width: 299.5mm Height: 230.5mm Depth: 46mm
Weight(N.W/G.W) 2.34kg
Packing Dimension TBA
LCD Type 12.1"Active matrix TFT-LCD
Video Input VGA/HDMI
Recommend Resolution 1024×768@60Hz,75Hz
OSD controls Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External Brick
Input (line) Voltage: 100-240 VAC, 50-60 Hz
Output Voltage/Current: 12V at 4A Max.
Power Consumption 15W
Mount Interface

1)VESA 75mm and 100mm

2)Rear Mounting Brackets

Regular Warranty 1 Year for TFT Panel, 2 Years for others
Agency Approval FCC,CE,RoHS Certified

2. 2 LCD Specification

Active Area(mm) 245.76(H)×184.32(V)
Resolution 1024× 768
Pixel Pitch(mm) 0.240×0.240
Nominal Input Voltage VDD +3.3V(Typ)
Viewing angle (L/R/T/B) 80°/80/80°/80°
Contrast 800:1
Luminance(cd/m2) 350 (1000/1500 optional)
Response Time(Rising/Falling) 16ms
Support Color 16.2M
Screen Scanning 60Hz
Backlight MTBF(hr) 50000h

2.3 Touch Screen Specification

Type Projected Capacitive Touch Screen
Resolution 4096×4096
Light Transmission 85%±5%
Touch Life Cycle 50 millions times
Touch Response time 5ms
Touch System Interface USB B type
Operating System Support

Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

Drivers for Windows CE/XP, Android, Mac

2.4 External AC Power Adapter

Output 12V DC/4A (24V DC, 9-36V DC optional)
Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C

2.5 Environment

Operating Temp. -10~60°C (-20~70°C optional)
Storage Temp. -20~70°C
Operating RH: 10%~90% (Non Condensing)
Storage RH: 10%~90%



OSD MENU FUNCTION KEY



NO Button Action
1 AUTO Move up menu to select
2 MENU 1: Enable/Disable OSD Menu; 2: Return to Previous Menu
3 LEFT/DECREASE 1: Decrease the value; 2: Volume Hot Key. 3: Select the Menu
4 RIGHT/INCREASE 1: Increase the value; 2: Volume Hot Key
5 EXIT EXIT Select the Display Mode
6 LED Indicator
7 ON/OFF(POWER) Power on/off

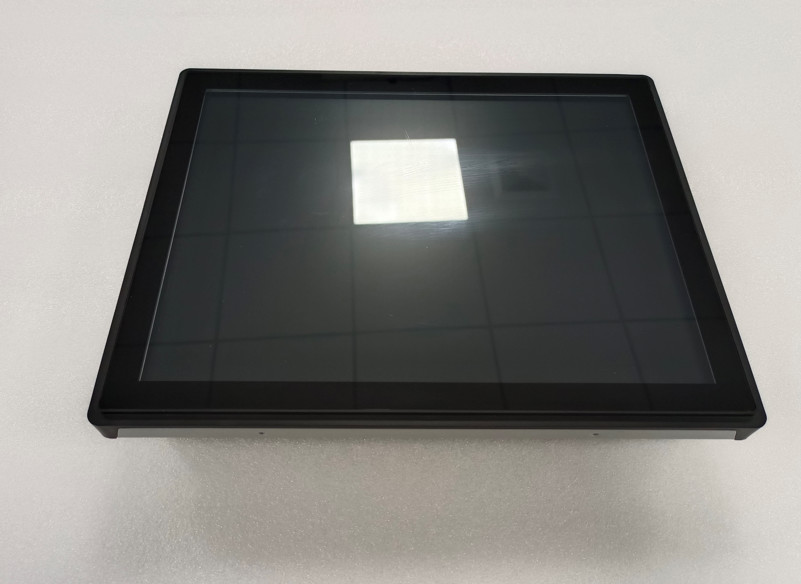

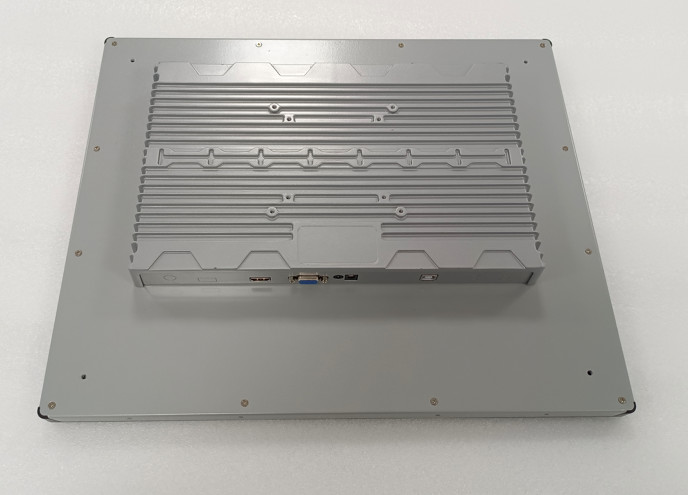

Photos of 12.1 touch screen monitor
350nits Small LCD Monitor 12.1 Inch Capacitive Touch Screen Flat Surface 0

350nits Small LCD Monitor 12.1 Inch Capacitive Touch Screen Flat Surface 1
