15.6" LCD Flat Screen Monitor FHD Open Frame Touch Screen For Terminals Kiosks

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD156OFT5Y1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 3-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Aluminum Chassis , Flat Screen, Flange Design Color Black Or Silver
Mounting Type Flush Rear Mounting, VESA Mounting MTBF 50000Hours
Operating Temperature -10~60℃(-20~70℃ Optional) Touch Screen Capacitive Touch Screen Or Non Touch
I/O VGA, HDMI Inputs, DC 12V Input, USB-B Port Resolution 1920×1080
Applications Kiosks, Terminals, Etc. Brightness 350nits
Lifetime 50000hours
High Light

15.6" LCD Flat Screen Monitor

,

Terminals Kiosks LCD Flat Screen Monitor

,

FHD Open Frame Touch Screen

Leave a Message
Product Description

lcd flat screen monitor 15.6" FHD open frame touch screen for terminals



SPECIFICTION OF open frame touch screen monitor

Model ITD156OFT5Y1
IP IP65(for front panel only)
Outline Dimensions Width: 388.46mm Height: 240.46mm Depth: 40.7mm
Weight(N.W/G.W) 2.64kg
Packing Dimension TBA
LCD Type 15.6"Active matrix TFT-LCD
Video Input VGA/HDMI
Recommend Resolution 1920×1080@60Hz,75Hz
OSD controls Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External Brick
Input (line) Voltage: 100-240 VAC, 50-60 Hz
Output Voltage/Current: 12V at 4A Max.
Power Consumption 6.5W
Mount Interface

1)VESA 75mm and 100mm

2)Rear Mounting Brackets

Regular Warranty 1 Year for TFT Panel, 2 Years for others
Agency Approval FCC,CE,RoHS Certified

2.2 LCD Specification

Active Area(mm) 344.16(H)×193.59(V)
Resolution 1920×1080
Pixel Pitch(mm) 0.17925×0.17925
Nominal Input Voltage VDD +3.3V(Typ)
Viewing angle (L/R/T/B) 85°/85°/85°/85°
Contrast 800:1
Luminance(cd/m2) 300
Response Time(Rising/Falling) 30ms
Support Color 16.2M
Screen Scanning 60Hz
Backlight MTBF(hr) 50000h

2.3 Touch Screen Specification

Type Projected Capacitive Touch Screen
Resolution 4096×4096
Light Transmission 85%±5%
Touch Life Cycle 50 millions times
Touch Response time 5ms
Touch System Interface USB B type
Operating System Support

Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

Drivers for Windows CE/XP, Android, Mac

2.4 External AC Power Adapter

Output 12V DC/4A (24V DC, 9-36V DC optional)
Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C

2.5 Environment

Operating Temp. -10~60°C (-20~70°C optional)
Storage Temp. -20~70°C
Operating RH: 10%~90% (Non Condensing)
Storage RH: 10%~90%





Photos of LCD flat screen monitor

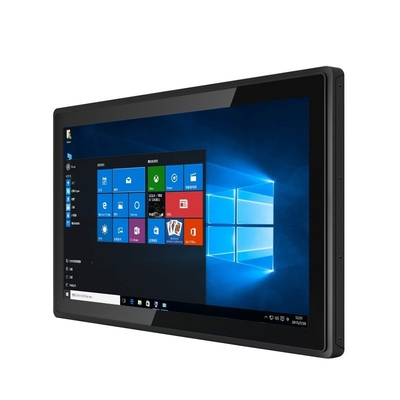

15.6" LCD Flat Screen Monitor FHD Open Frame Touch Screen For Terminals Kiosks 0

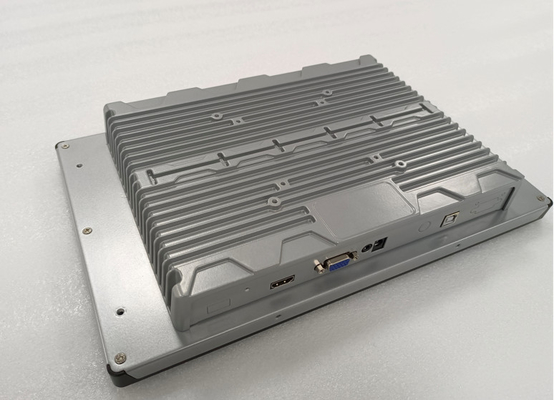

15.6" LCD Flat Screen Monitor FHD Open Frame Touch Screen For Terminals Kiosks 1
