15 Inch LCD Video Monitor Open Frame Touchscreen Monitor Flush Mount

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD15OFT5Y1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 3-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Open Frame , Flat Screen, Flange Design Color Silver
Mounting Type Flush Mount, VESA Mounting MTBF 50000Hours
Operating Temperature -10~60℃(-20~70℃ Optional) Touch Screen Capacitive Touch Screen Or Non Touch
I/O VGA, HDMI Inputs, DC 12V Input, USB-B Port Resolution 1024×768
Applications Kiosks, Terminals, Automation, Etc. Brightness 250nits
Lifetime 50000hours
High Light

Touchscreen 1024×768 lcd video monitor

,

lcd video monitor 250nits

,

Flush Mount open frame touchscreen monitor

Leave a Message
Product Description

lcd video monitor 15 inch open frame touch screen display flush mount



SPECIFICATION of open frame touch display



2. 1 General

Model ITD15OFT5Y1
IP IP65(for front panel only)
Outline Dimensions Width: 349.45mm Height: 273.45mm Depth: 51mm
Weight(N.W/G.W) 3.3kg
Packing Dimension 450.0×190.0×360.0mm
LCD Type 15"Active matrix TFT-LCD
Video Input VGA/HDMI
Recommend Resolution 1024×768@60Hz,75Hz
OSD controls Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External Brick
Input (line) Voltage: 100-240 VAC, 50-60 Hz
Output Voltage/Current: 12V at 4A Max.
Power Consumption 15W
Mount Interface

1)VESA 75mm and 100mm

2)Rear Mounting Brackets

Regular Warranty 2 Years
Agency Approval FCC,CE,RoHS Certified

2. 2 LCD Specification

Active Area(mm) 304.128(H)×228.096(V)
Resolution 1024×768
Pixel Pitch(mm) 0.297×0.297
Nominal Input Voltage VDD +3.3V(Typ)
Viewing angle (L/R/T/B) 80°/80°/80°/80°
Contrast 600:1
Luminance(cd/m2) 250
Response Time(Rising/Falling) 2/6ms
Support Color 16.2M
Screen Scanning 60Hz
Backlight MTBF(hr) 50000h

2.3 Touch Screen Specification

Type Projected Capacitive Touch Screen
Resolution 4096×4096
Light Transmission 85%±5%
Touch Life Cycle 50 millions times
Touch Response time 5ms
Touch System Interface USB B type
Operating System Support

Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

Drivers for Windows CE/XP, Android, Mac

2.4 External AC Power Adapter

Output 12V DC/4A (24V DC, 9-36V DC optional)
Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C

2.5 Environment

Operating Temp. -10~60°C (-20~70°C optional)
Storage Temp. -20~70°C
Operating RH: 10%~90% (Non Condensing)
Storage RH: 10%~90%

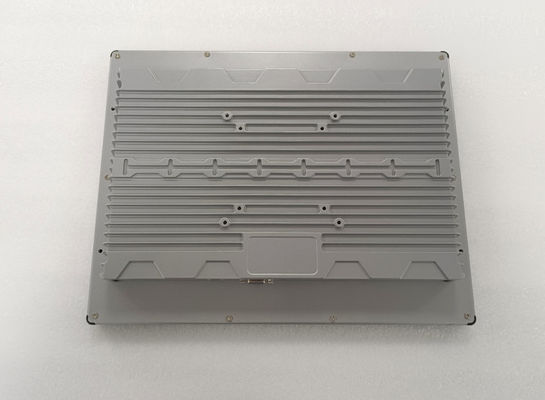

PHOTOS of LCD video monitor

15 Inch LCD Video Monitor Open Frame Touchscreen Monitor Flush Mount 0

15 Inch LCD Video Monitor Open Frame Touchscreen Monitor Flush Mount 1



15 Inch LCD Video Monitor Open Frame Touchscreen Monitor Flush Mount 2
