10.4" Industrial HMI Touch Panel PC Fanless Operation IP65 Front GPIO
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD10PPCTxB-J1900/ITD10PPCTxB-I5-4200U/ITD10PPCTxB-I7-4500U |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 7-12 work days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Onboard Intel J1900/4th Iintel Core I3/i5/i7 | System Memory | Onboard DDR3L 4GB Memory / Optional SODIMM SKU |
|---|---|---|---|
| Ethernet | 2x GbE RJ45 Intel I211 | DC Inut | DC 9 ~ 36V With 3-pin Terminal Block |
| Luminance | 350cd/m2 1000cd/m2 Optional | Touch Screen | 5 Wire Resistive, Pcap Touch Optional |
| High Light | 10.4" HMI Touch Panel PC,Fanless HMI Touch Panel PC,IP65 Front Industrial Touch Panel PC |
||
Product Description
10.4" Industrial HMI Touch Panel PC Fanless Operation IP65 front GPIO
Features of 10.4" industrial HMI
Onboard Intel J1900/4th Iintel Core i3/i5/i7 CPU
Onboard DDR3L 4GB Memory / Optional SODIMM SKU
Onboard DDR3L 4GB Memory / Optional SODIMM SKU
LCD+HDMI Output, Support Dual view/Simultaneous display
Fanless Operation
IP65 Front Bezel
Wide DC Support 9 ~ 36V
Specs OF HMI touch panel PC:
| CPU | Onboard Intel J1900/4thIntel Core i3/i5/i7 CPU |
| Memory | Onboard DDR3L 4GB Memory / Optional SODIMM SKU |
| Storage | 1XMSATA,1XSATA(2.5" HDD) |
| OS | Android, Linux |
| Ethernet | 2X GbE RJ45 Intel i211 |
| Input / Output | 3x USB2.0,1x USB3.0,1x USB2.0 dongle 2 X DB-9 COM1&COM2,RS232/422/485 2X3-wire COM3&COM4 RS232-/485 with terminal 2x3-wire COM5&COM6 RS232 with terminal block 1xAT/ATX switch 1xHDMI 1X14BIT GPIO(optional) |
| Expansion slot | Mini-PCIe x 1 full size with SIM card for 3G/4G |
| Mini-PCIe x 1 half size for WIFI/BLT | |
| Watchdog timer | 255 levels |
| OS support | Windows 7/8/10,WES 7,Linux |
| Environment Considerations | -20 to 60C |
| -30 to 70C | |
| 10%~90% (non condensing) | |
| Display Type | 10.4" TFT-LCD |
| Max Resolution | 1024x768 |
| Luminance | 350c/m2 1000cd/m2 optional |
| Touch screen | 5-wire resistive, pccap touch optional |
| Light transmission | 85% |
| Power supply | DC 9-36V with 3-pin terminal block |
Note:
(1) J1900 CPU SKUs support three USB2.0 ports and one USB3.0 port, CoreTM CPU SKUs support four USB3.0 ports.
(2) M.2 Interface is not available on J1900 CPU SKUs.
WIFI module
Product DVD
3G/4G module
Phoenix connector
VESA 75 Mounting brackets
Power adapter
SSD
2.5” HDD brackets
Screws

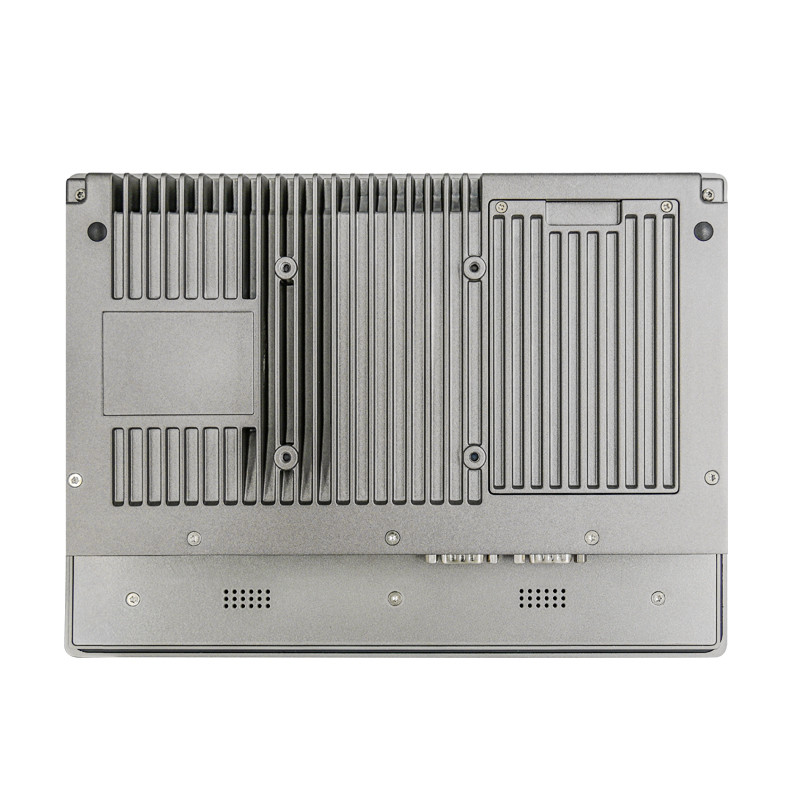

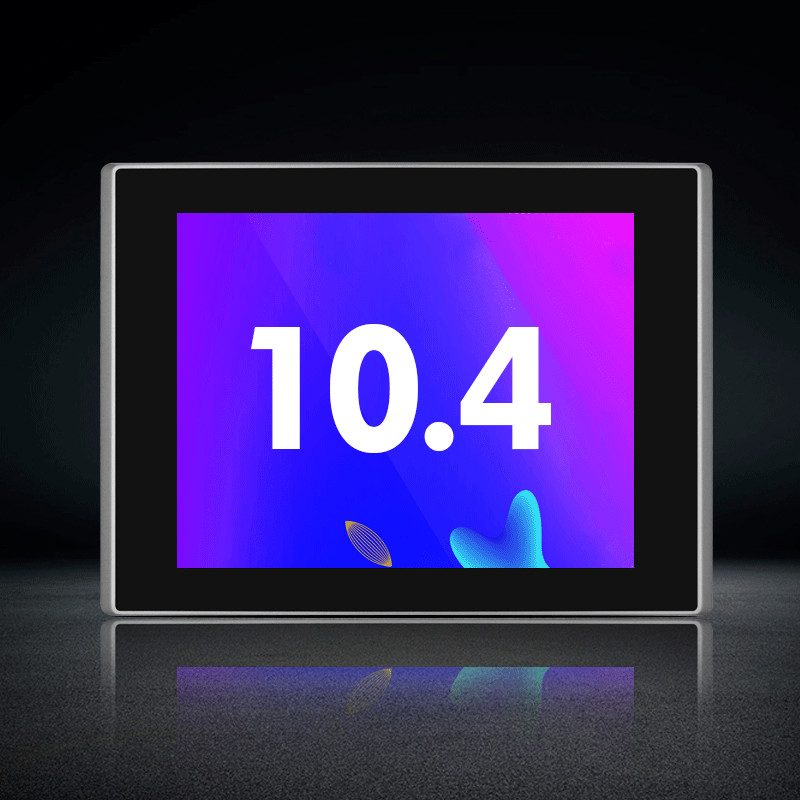

Produce image:
